Basic Info.
Certification
RoHS, FCC, CE
GPS Accuracy
Less Than 5M
Shock/Movement Alarm
Support
Network
Support 2G/4G Network
Waterproof
IP66 Waterproof
Main Features
Engine Cut off, Door Open Alarm, Acc Alarm
Battery
350mAh Class A Rechargeable Polymer Battery
4G Band
B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40
Application

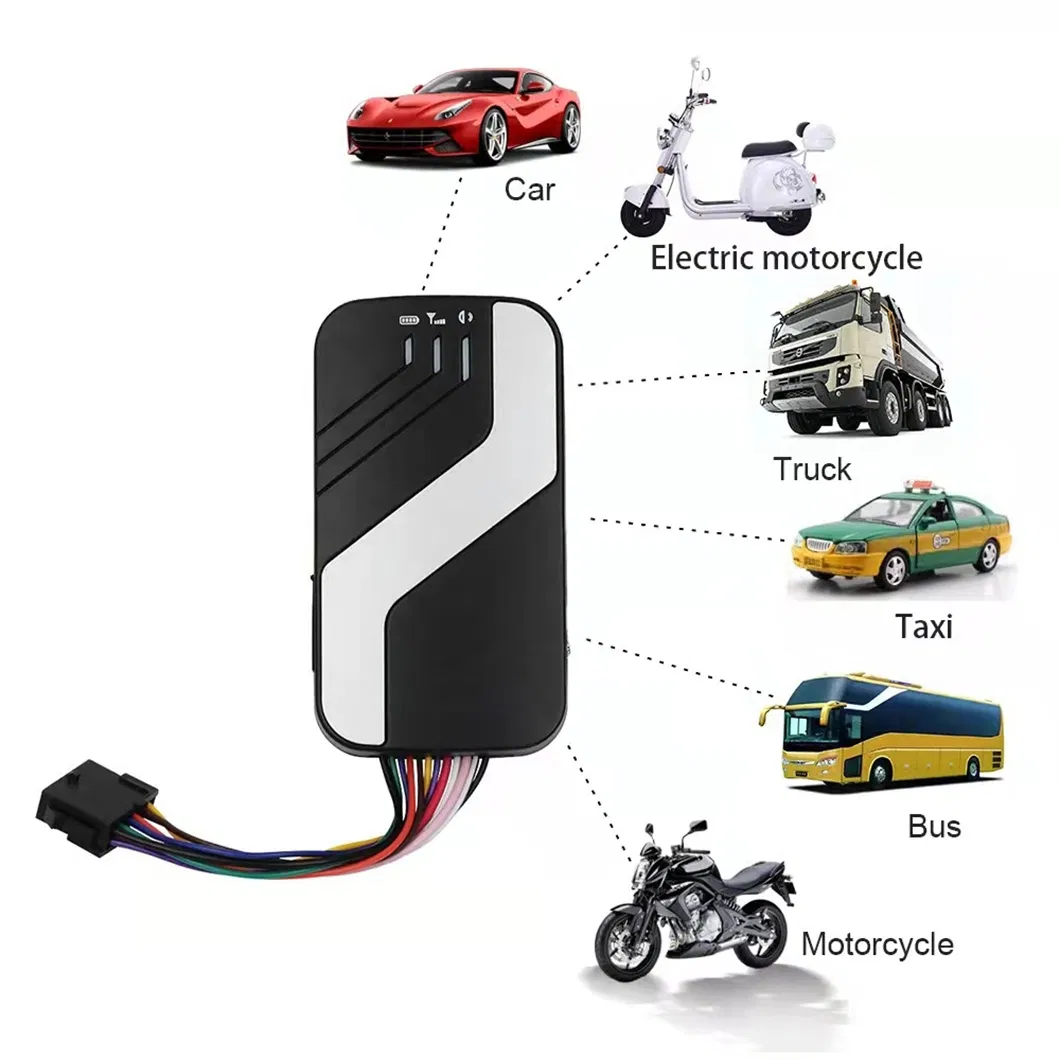

Vehicle Fleet/Logistics/Rental Car(12-24V)
Transport Package
Giftbox Package or Custom Package
Production Capacity
10000PCS/Day
Product Description
Modern 4G Waterproof GPS Tracker with Sleep Mode Power Saving and Movement Alarm Alerts T405
Why Do You Need a Vehicle GPS Tracker?
To balance permanent security with the health of your vehicle's battery. The T405 is built with a high-capacity 350mAh backup battery and highly intelligent Deep Sleep modes, which allow the device to remain alert for external power-off or low-battery alarms without draining the vehicle's primary power source. Its technical versatility is unmatched, featuring USB parameter configuration, TCP/UDP protocol switching, and less GPRS traffic modes to keep data costs low. Combined with the free BAANOOL IoT platform, it provides an ad-free, subscription-free tracking experience that delivers high location accuracy all day long, making it the most cost-effective and reliable tracking solution.

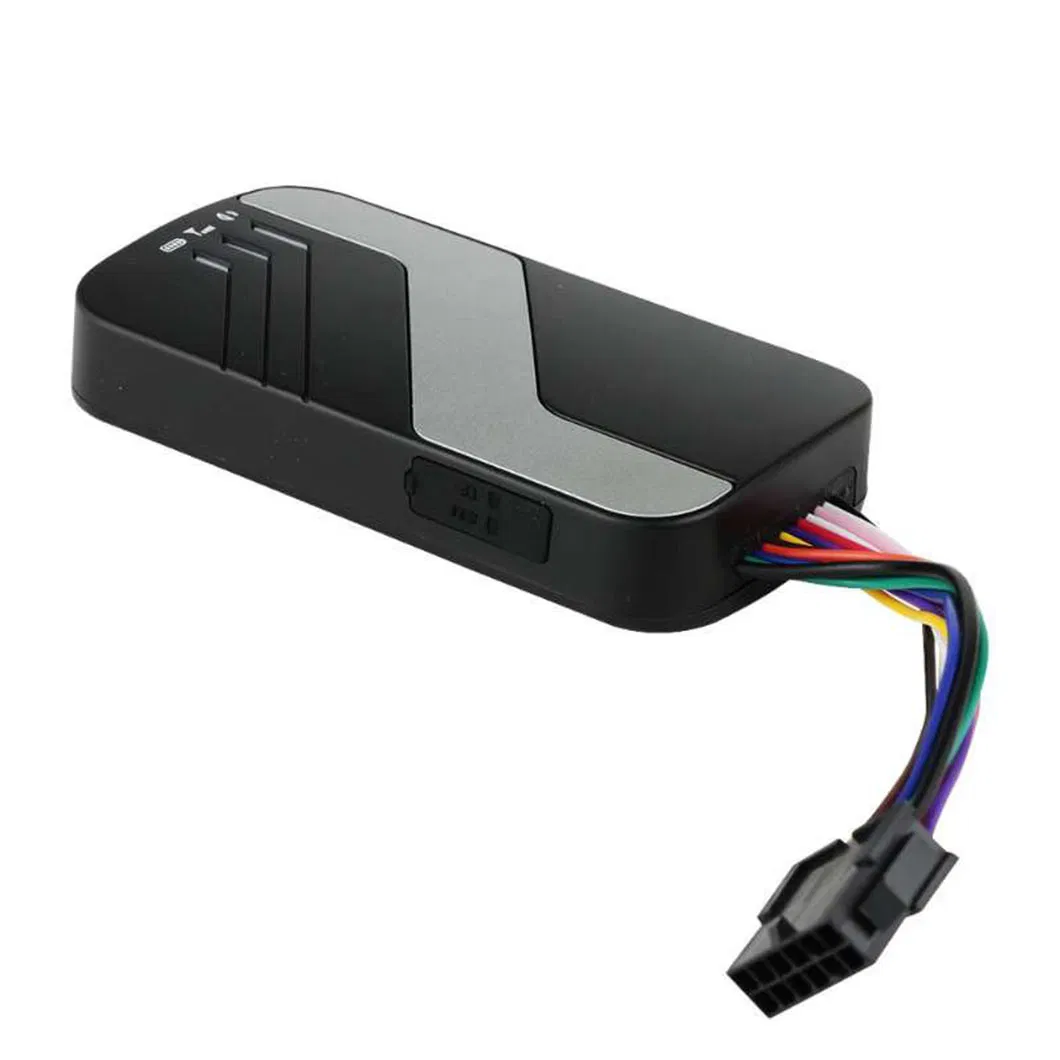

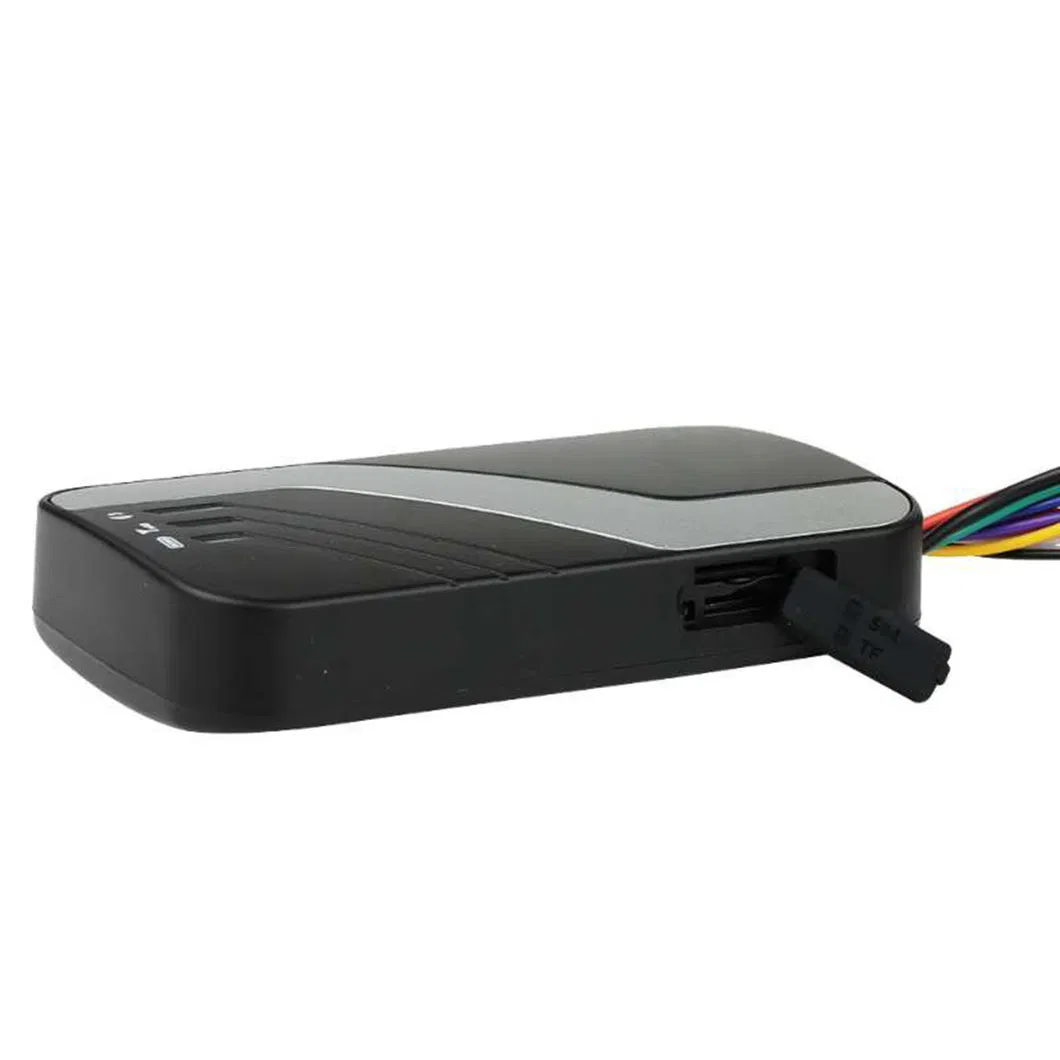

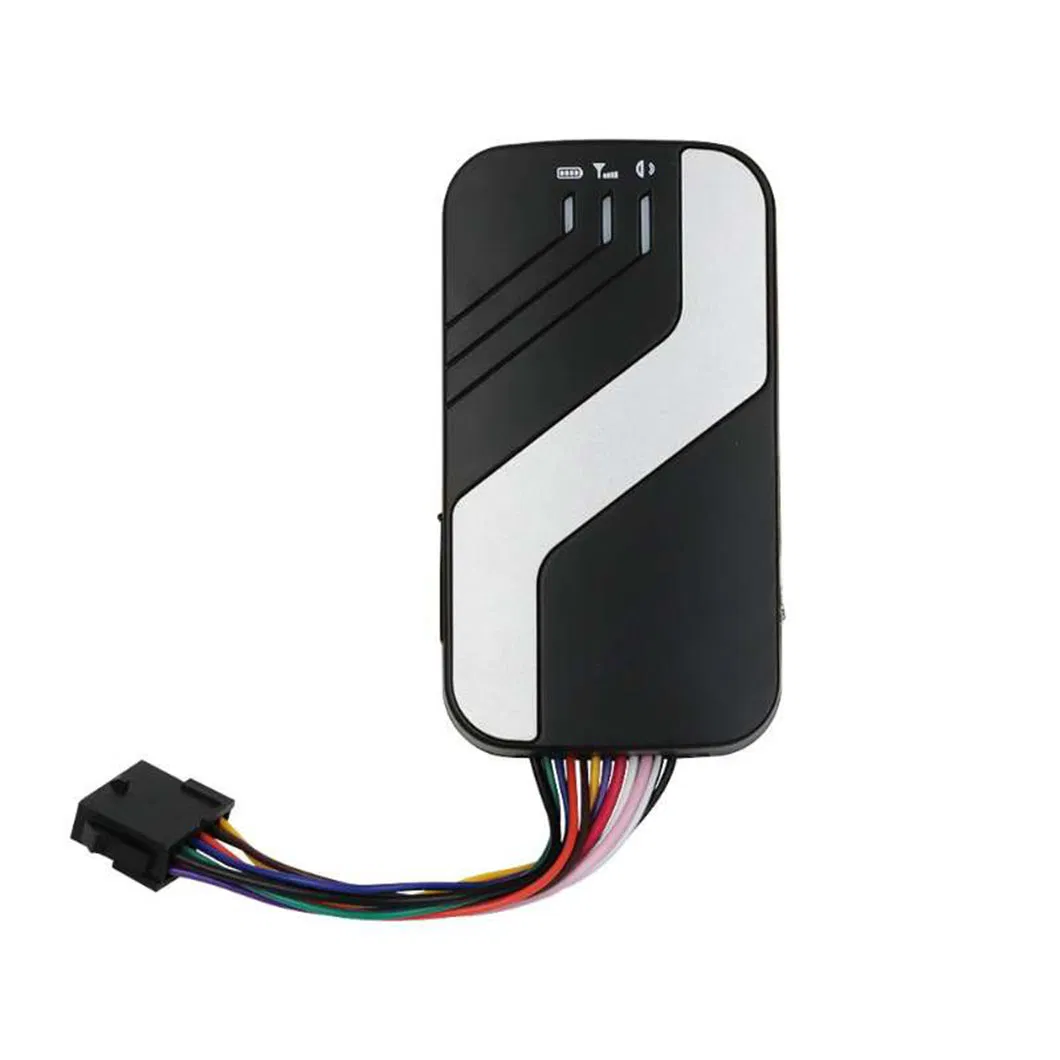

Top Quality IP66 Waterproof Tracking Device T405 4G Mini Motorcycle/Vehicle GPS Tracker
✔
Dimensions & Weight: 9.6×5.3×1.8cm , 70g
✔
Frequency Bands: 4G (B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B40) & 2G (850/900/1800/1900Mhz)
✔
Battery: 350mAh class A rechargeable polymer battery
✔
Audio & Safety: SOS / Microphone & Remote Engine Cut-off
✔
Fuel Sensor: Support fuel sensor (need purchase the fuel sensor as accessory)
✔
Alerts: Door open / shock / movement / GEO fence alerts
✔
App & Platform: Free tracking platform & Free BAANOOL IoT mobile app
✔
Internal Memory: 100KB to save routes when signal is lost
GPS 405 4G LTE: Works only with 2G and 4G LTE networks. The firmware updates over the air (OTA) dynamically. The high-capacity internal memory allows saving routes when the signal drops and uploads them once the connection is recovered.
Product Parameters
| Content |
Specification |
| DIM |
9.6×5.3×1.6cm |
| Weight |
70g |
| Network |
GSM/GPRS/LTE |
| Band |
4G(B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B40)
2G(850/900/1800/1900Mhz) |
| GPS sensitivity |
-159dBm |
| GPS accuracy |
Less than 5m |
| GPS start time |
Cold status: 45s
Warm status: 35s
Hot status: 1s |
| Car power supply |
12 V -24V |
| Back up battery |
3.7V 350mAh Class A Rechargeable Polymer Battery |
| Storage Temp |
-40°C to +85°C |
| Operation Temp. |
-20°C to +65°C |
| Humidity |
5%--95% non-condensing |
Features and Functions:
✔GSM/GPS LED Indicator
✔Initialization & Password Management
✔Authorization & Single Locating
✔Auto track continuously
✔Automatic update positions of vehicle turns
✔GPS drift suppression
✔Absolute street address by SMS
✔Location based service (LBS)
✔Data logging & Data Load
✔Forward third parties' messages
✔Charges Inquiry
✔Alarm Function: Low battery & External Power off alarms
✔GPS blind Spot alert & SOS alarm
✔Geo-fence/Safety zone & Multi-area management
✔Movement alarm & Over speed alarm
✔ACC working alarm & Alarms under Arm State
✔Shock Sensor alarm
✔Alarm without GSM network service
✔Check the Vehicle State & Reset Hardware
✔Sleep Mode Options: Sleep by time, Sleep by shock, Deep Sleep, No sleep
✔Scheduled wake-up & Check IMEI
✔Set up Terminal Local Time & TCP/UDP Switch
✔Configure parameters by USB & GPRS settings
✔Less GPRS traffic & Modes Switch (SMS/GPRS)
✔Set up monitor center number
✔Cut off the Oil and Power System

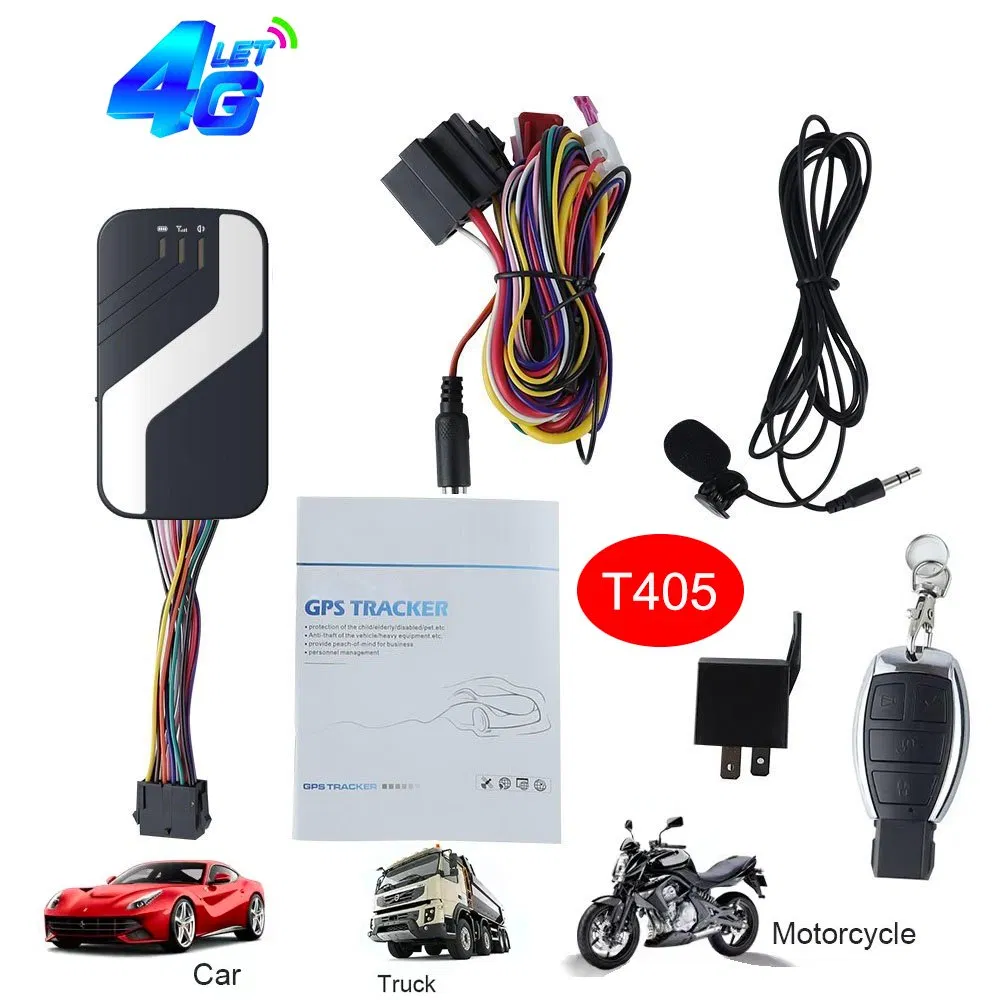

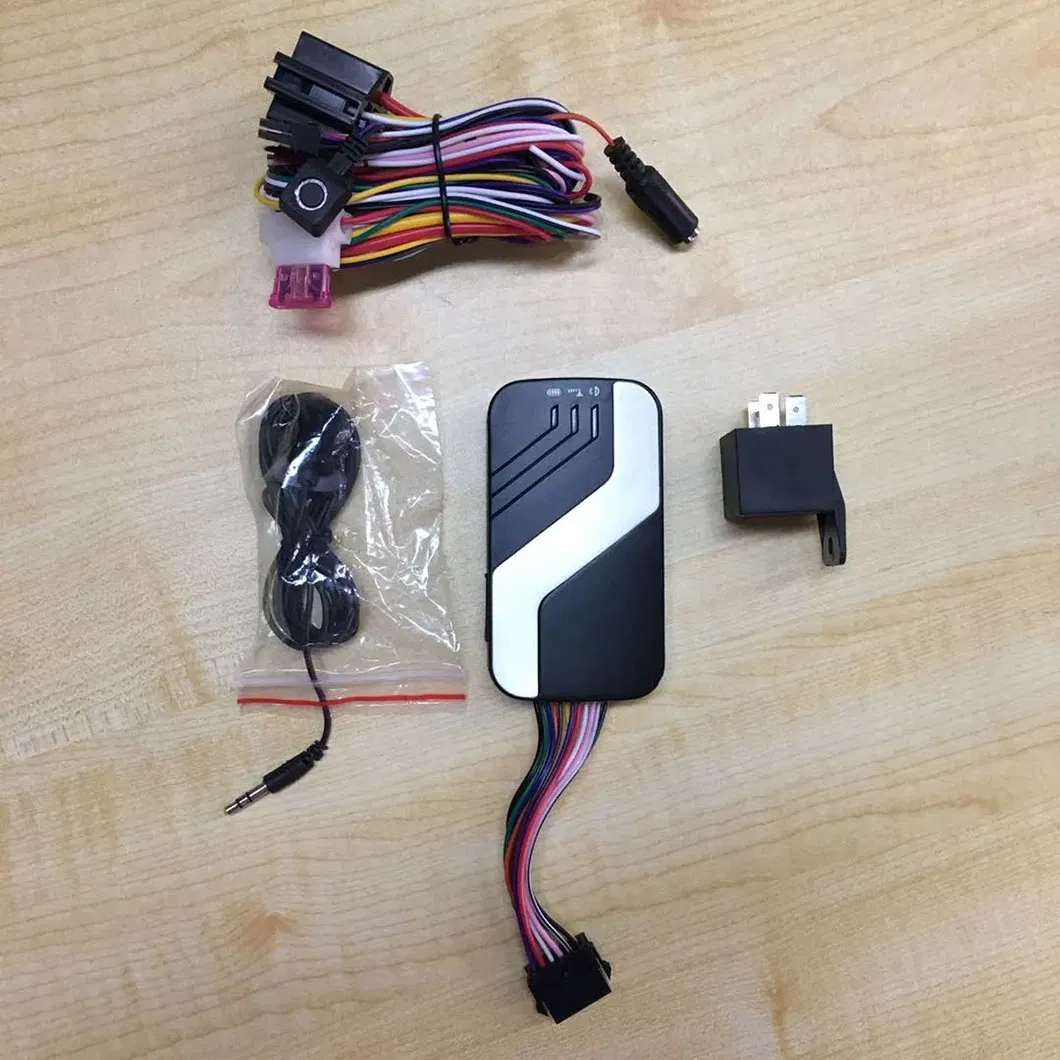

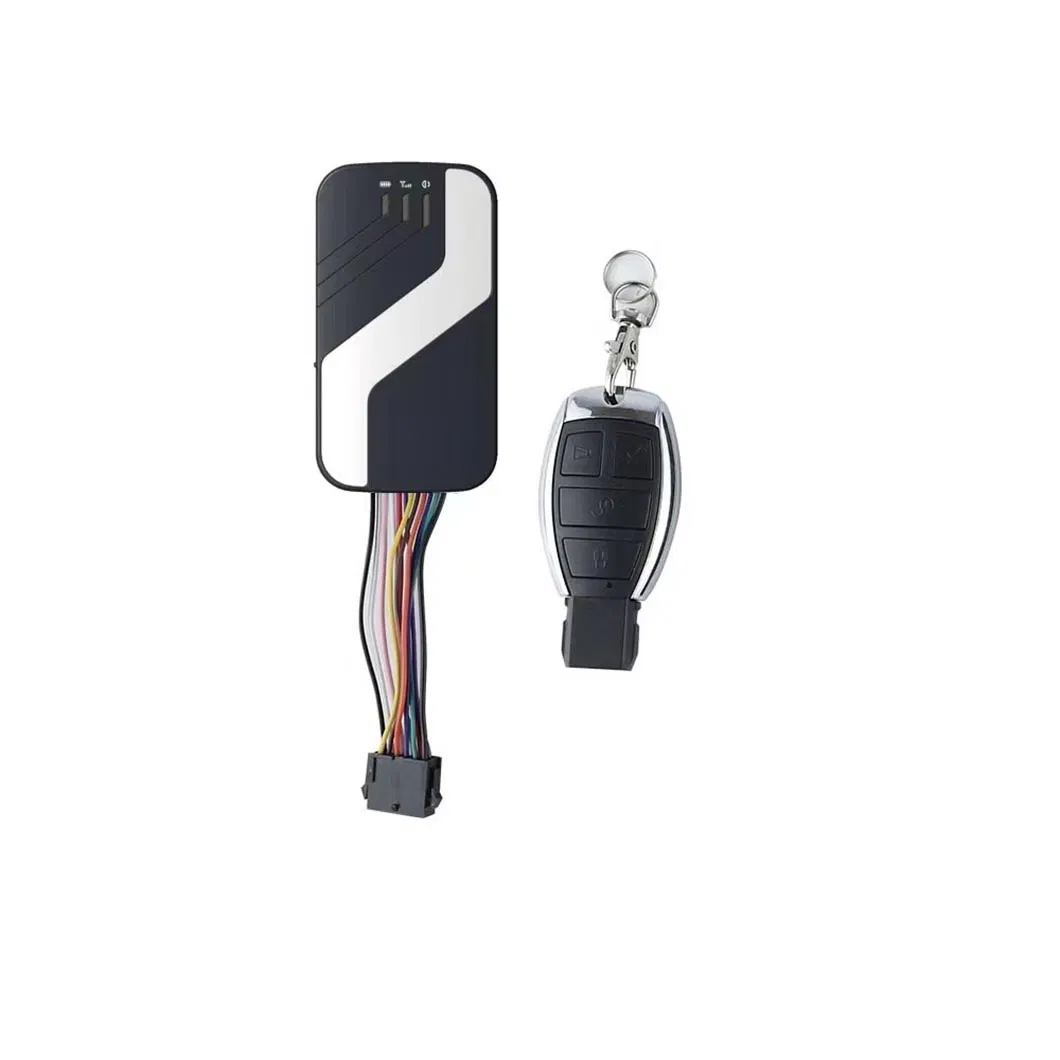

Packaging Detail: GPS unit, 12PIN harness, Microphone, Relay, Manual, Giftbox, Remote controller.
Company Profile
Frequently Asked Questions (FAQ)
What mobile application does the T405 GPS tracker use?
The tracker uses the free BAANOOL IoT mobile application, providing a subscription-free, ad-free experience.
What cellular network bands is the T405 tracker compatible with?
It works with 4G LTE (B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B40) and 2G GSM (850/900/1800/1900Mhz) network bands.
How does the sleep mode function prevent car battery drain?
The T405 has a built-in 350mAh rechargeable polymer battery and features three sleep modes (including Deep Sleep by shock sensor) to lower consumption when the vehicle is inactive.
What is the GPS accuracy of the T405 tracker?
The device provides highly accurate positioning with a GPS accuracy of less than 5 meters.
Does the tracker save route history when there is no network coverage?
Yes, it features 100KB of internal memory that automatically saves routing records when network signal is lost, uploading them once signal is restored.
Does the T405 support remote vehicle controls?
Yes, it supports cutting off the vehicle's oil and power system (engine cut-off) remotely using control commands.
