Overview
Basic Info.
Model NO.
G18DX00103
Power
3W
Emitting Color
Changeable
IP Rating
IP20
Certification
CCC, CE, EMC, ETL, LVD, RoHS, TUV
Input Voltage
AC220-240V
LED Chips Brand
Sanan
Beam Angle
24°/36°
CRI
>90
Scdm
<3
Fixture Color
Sand Black/Bronze
Transport Package
Carton
Specification
Φ 80*91mm
HS Code
9405100000
Production Capacity
300000 Per Month
Packaging & Delivery
Package Size
54.00cm * 34.00cm * 18.00cm
Package Gross Weight
12.500kg
Lead Time
15 days (1 - 300 Pieces)
To be negotiated (> 300 Pieces)
Product Description
G18 Pole System Series Lighting Fixtures
The G18mm Pole System Series represents a versatile and modern lighting solution designed to meet diverse installation and aesthetic needs. Featuring a sleek 18mm-diameter aluminum profile, this series combines minimalist design with high functionality, making it ideal for office spaces, exhibition halls, corridors, and other indoor environments.

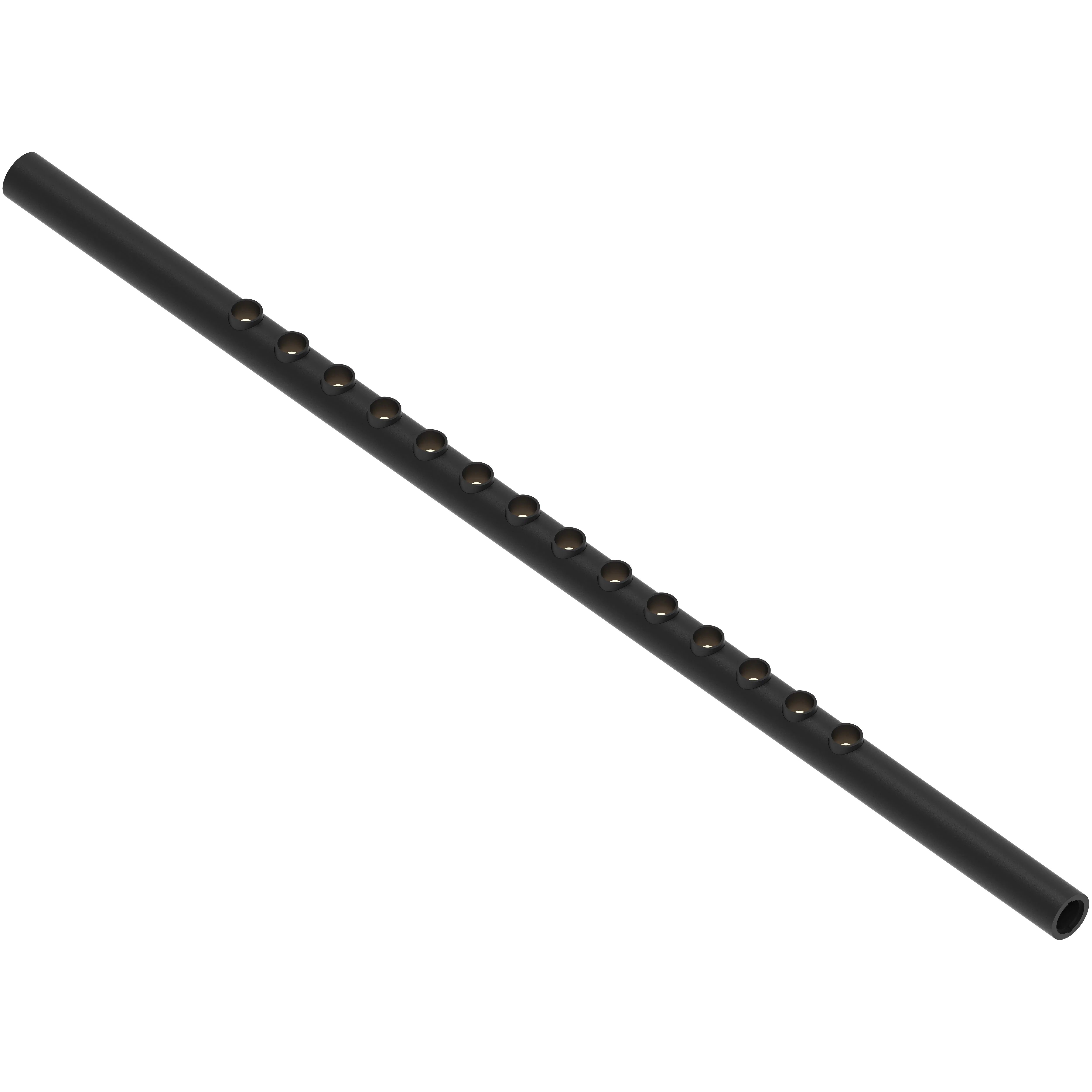

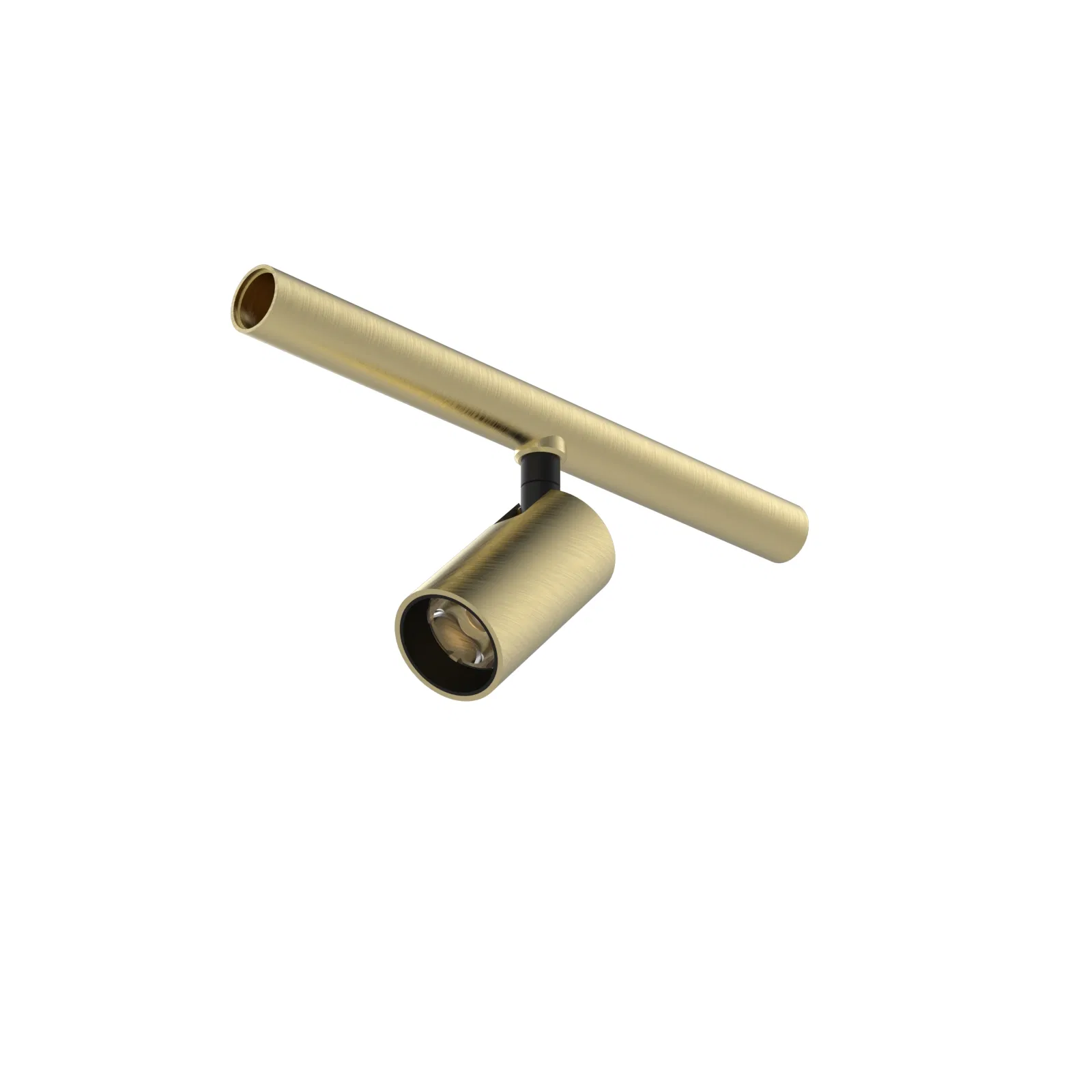

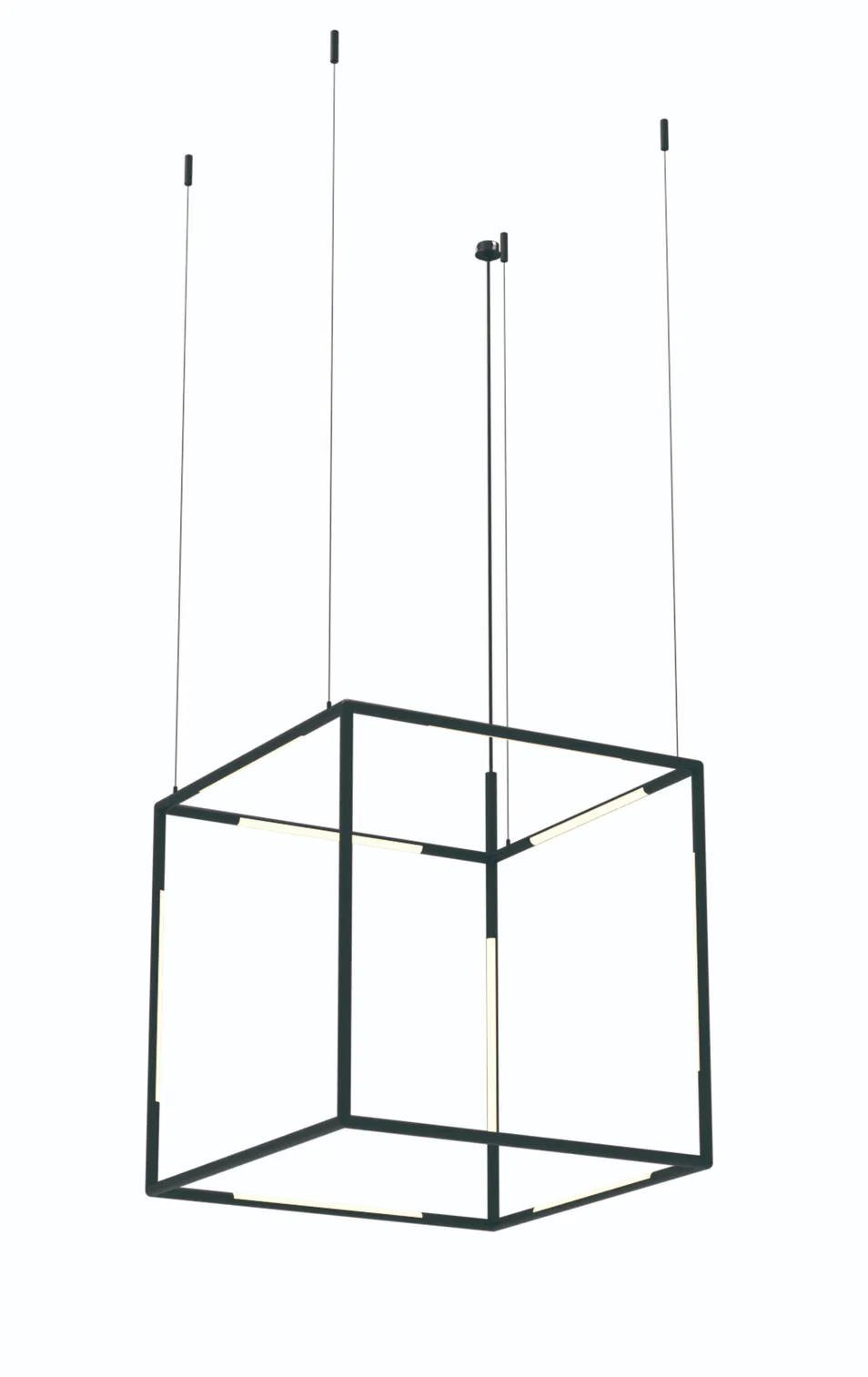

Chic 18mm Adjustable Pendant Light for Modern Interiors
Key Features:
1
Flexible Installation Options
• Ceiling-mounted: Direct surface installation for a clean, flush finish.
• Suspended Cable: Adjustable single-cable suspension for a floating effect.
• 3D Suspended Cable: Multi-directional cable mounting, enabling creative geometric configurations and dynamic spatial designs.
2
Modular Combination
Fixtures can be freely interconnected to form linear, grid, or custom patterns, adapting to architectural layouts and design visions.
3
Aesthetic & Material
• Color Finishes: Available in two premium matte textures—Sand Black and Sand Bronze—to complement modern interiors.
• Durable Construction: High-quality aluminum ensures heat dissipation, longevity, and a lightweight profile.
4
Performance & Adjustability
• Power Options: 12W and 24W models to suit varying lighting intensity requirements.
• High CRI (Color Rendering Index): Exceeds 90 Ra, ensuring true-to-life color representation.
• Tunable White (3CCT): Adjustable color temperature (3000K/4000K/5000K) to create custom ambiance.
• Dimmable: Smooth brightness control via compatible dimmers or smart systems.
5
Smart Integration
Compatible with leading smart lighting protocols (e.g., DALI, 0-10V, or wireless systems), enabling centralized control, scheduling, and automation for energy efficiency.
Applications
Corporate offices (task lighting, open-plan areas)
Commercial showrooms (product highlighting, accent lighting)
Public corridors (uniform illumination, wayfinding)
Art galleries (color-accurate display lighting)
Design & Layout Diagrams

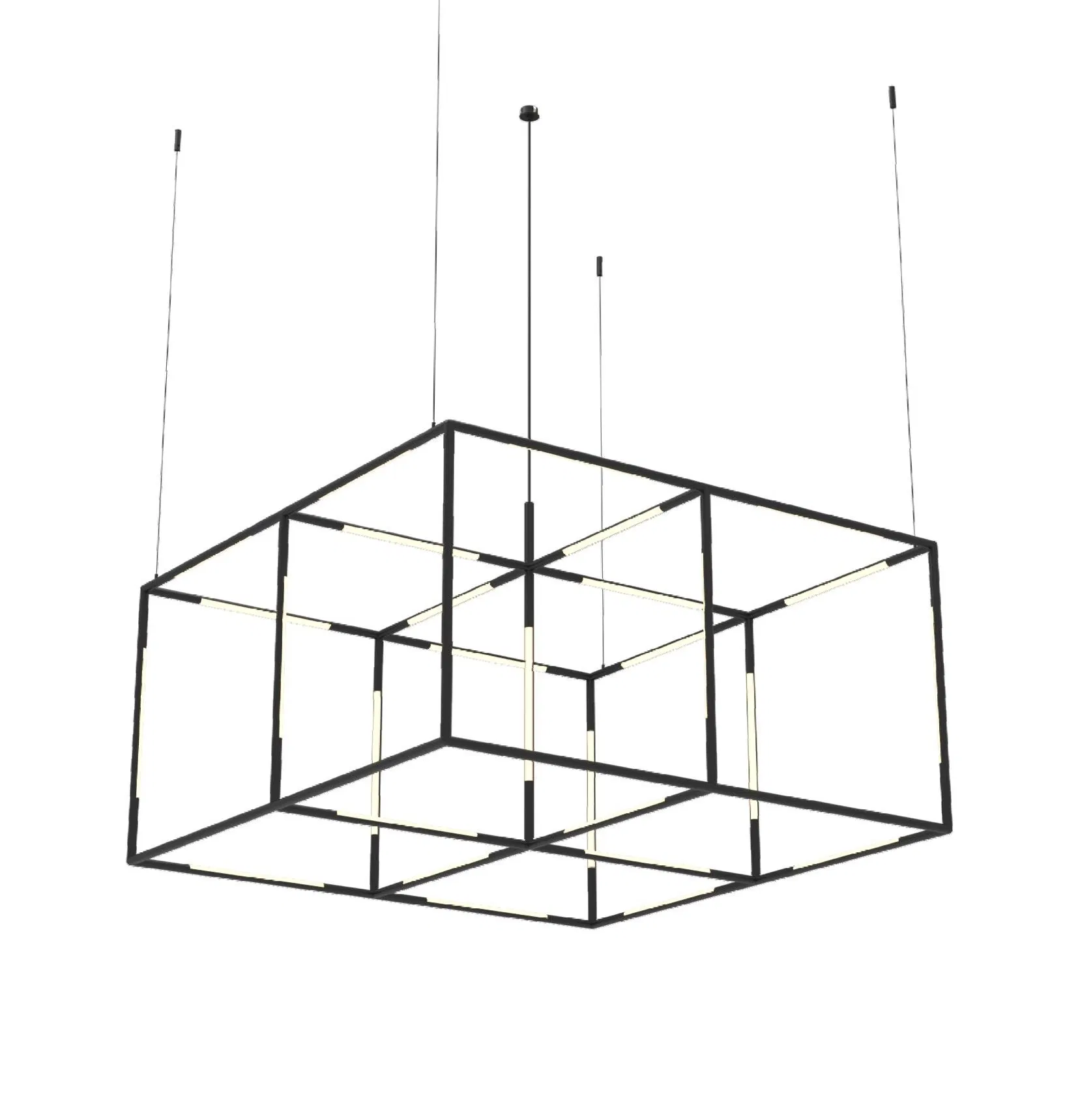

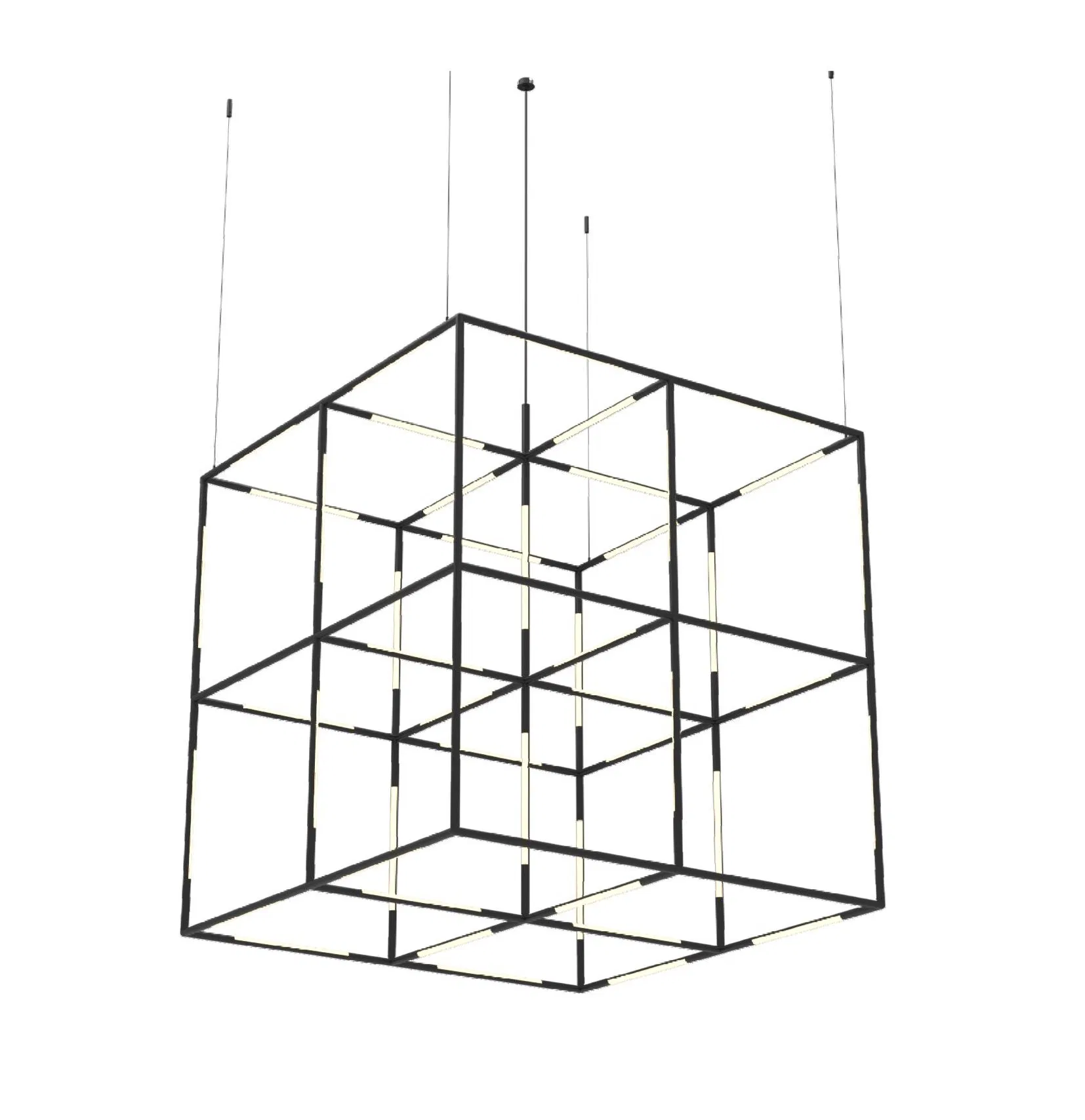

3D Suspended Line Effect Diagram (Perspective View)
3D Suspended Line Effect Diagram (Alternative View)

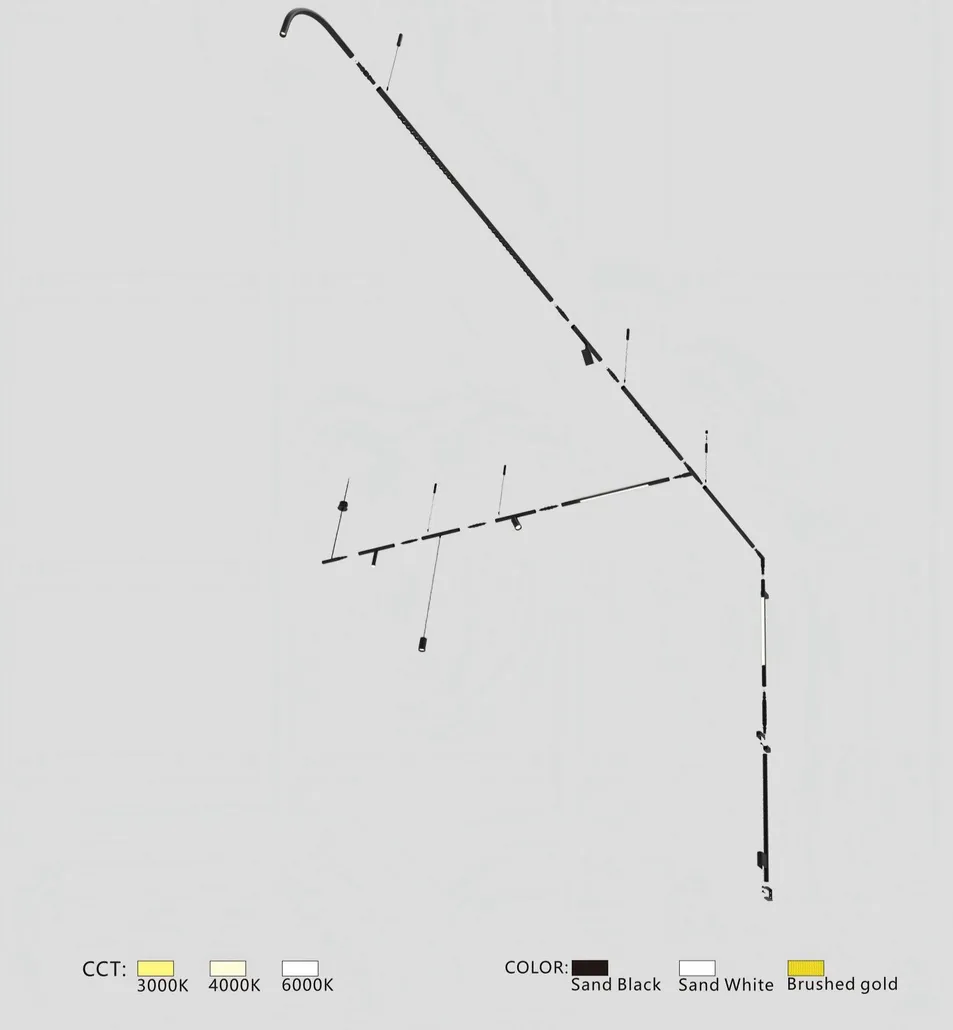

Pole System Series Suspension Line Effect Diagram

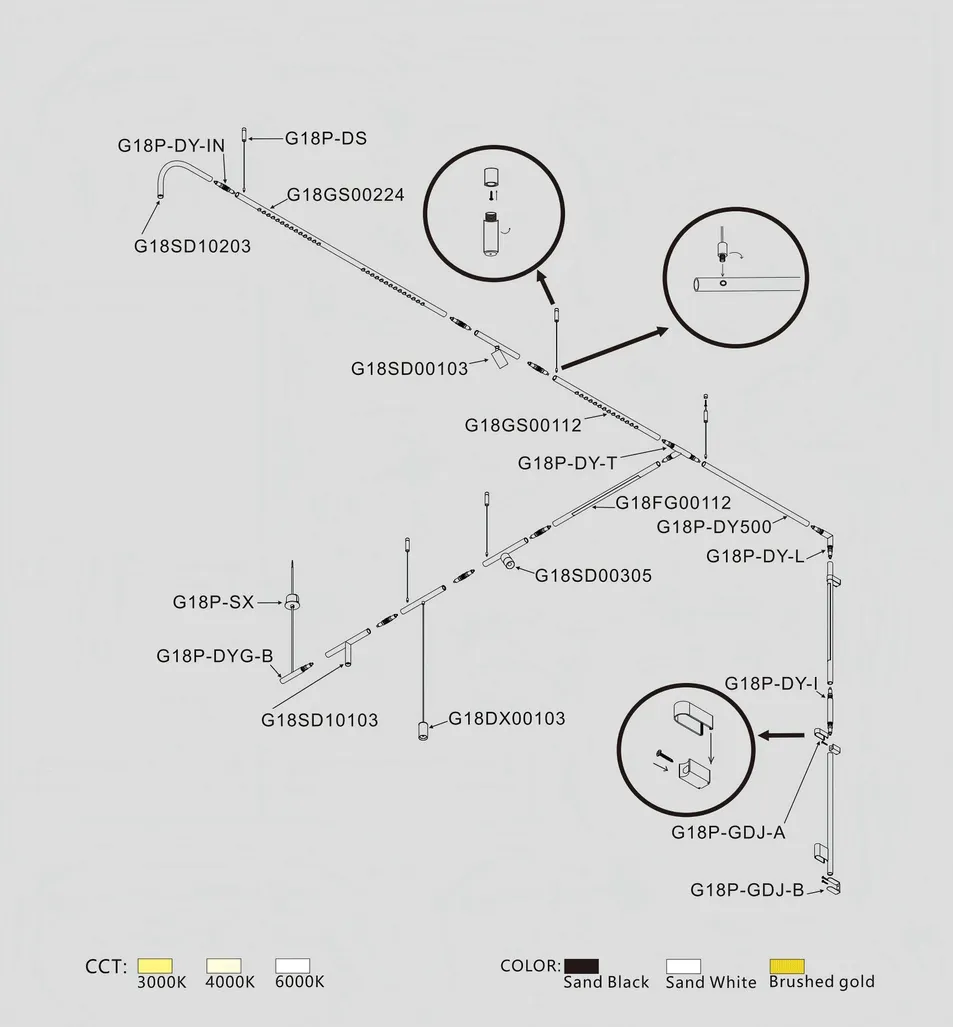

Pole System Series Suspension Line Installation Diagram

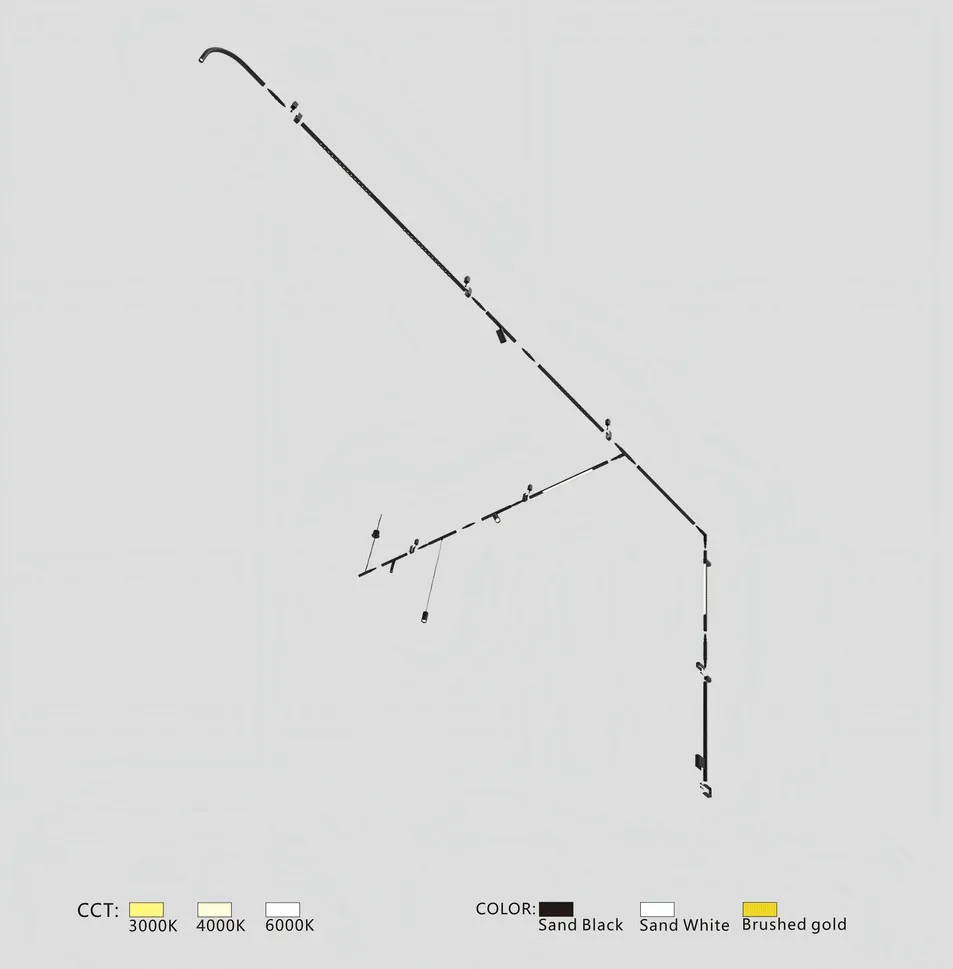

Pole System Series Ceiling Mounting Effect Diagram

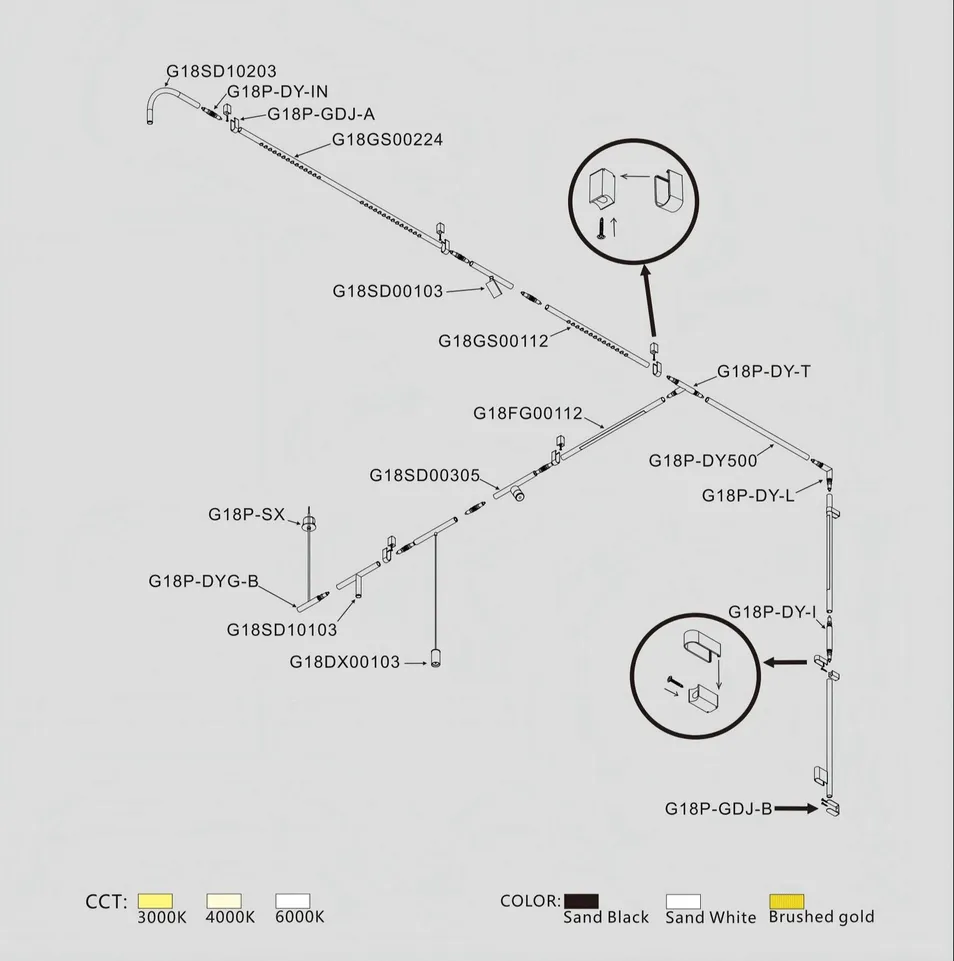

Pole System Series Ceiling Mounting Diagram

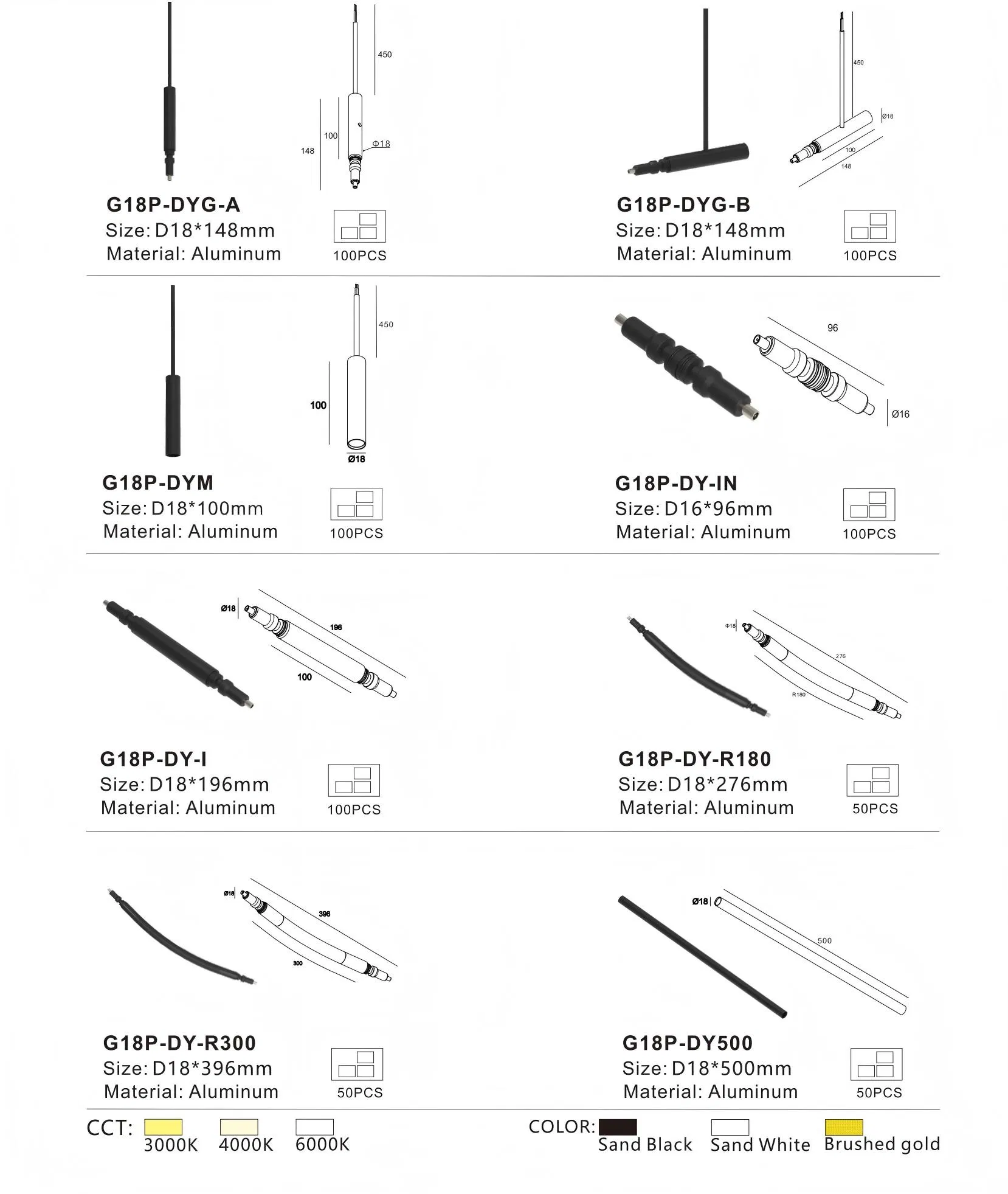

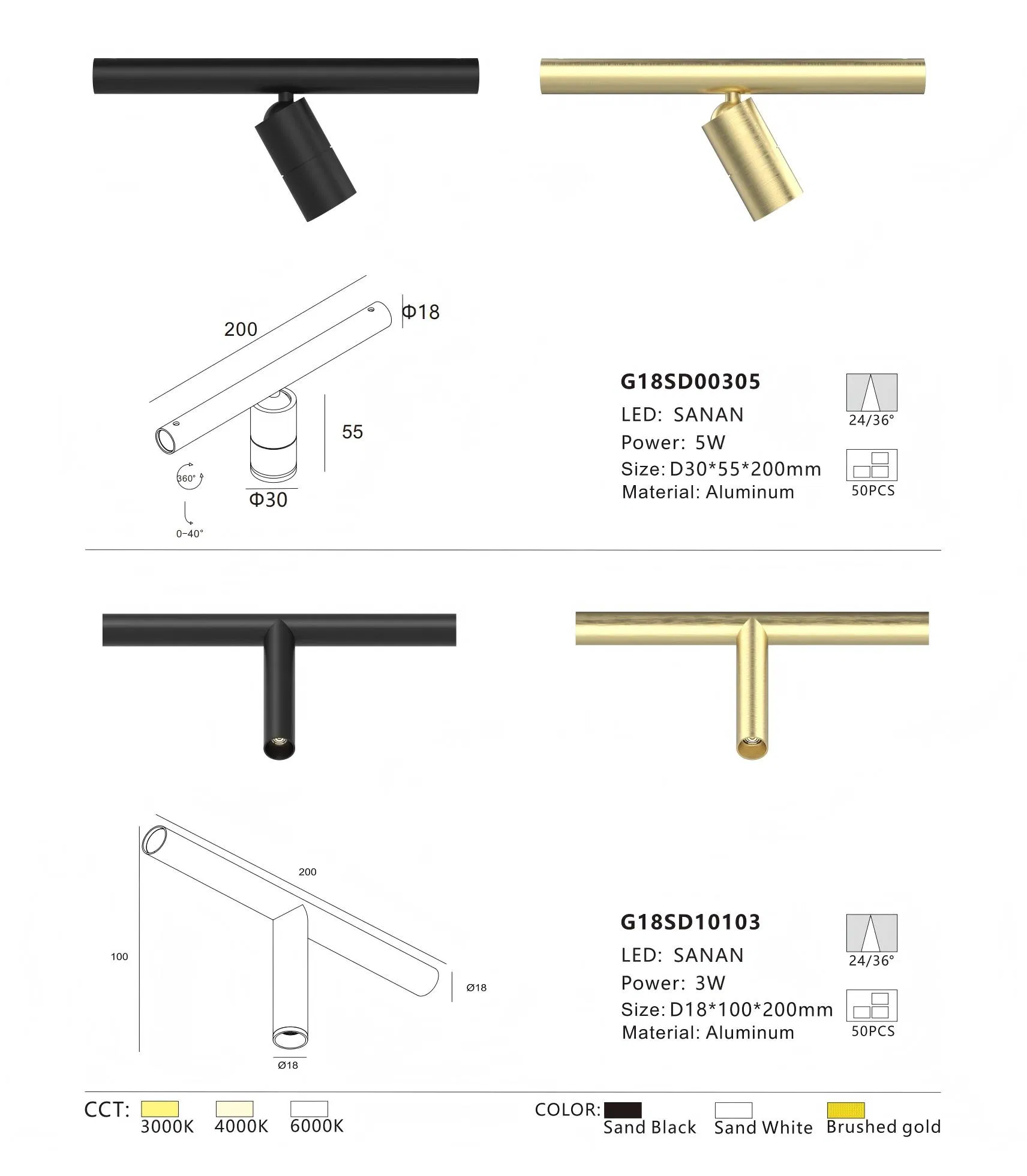

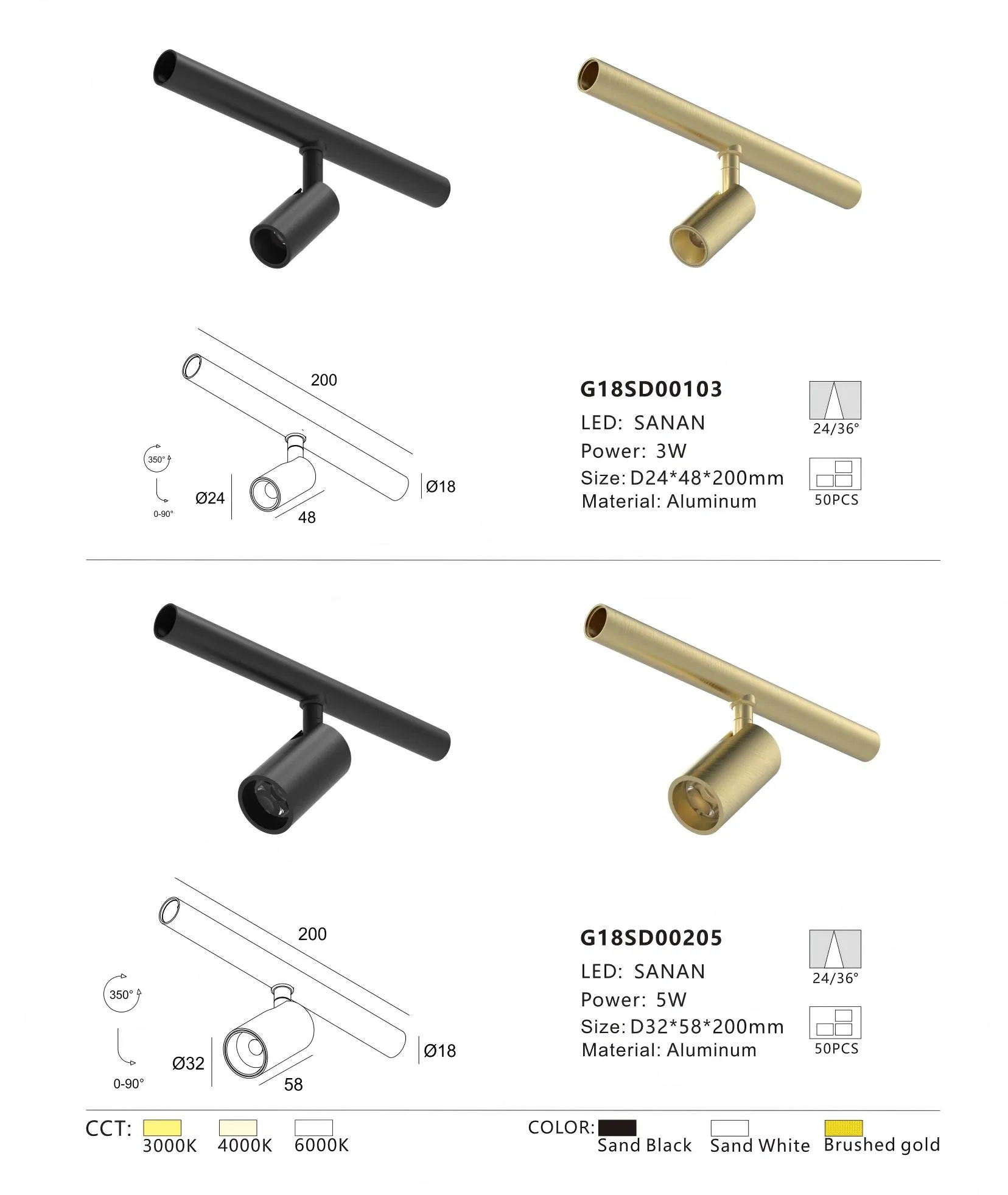

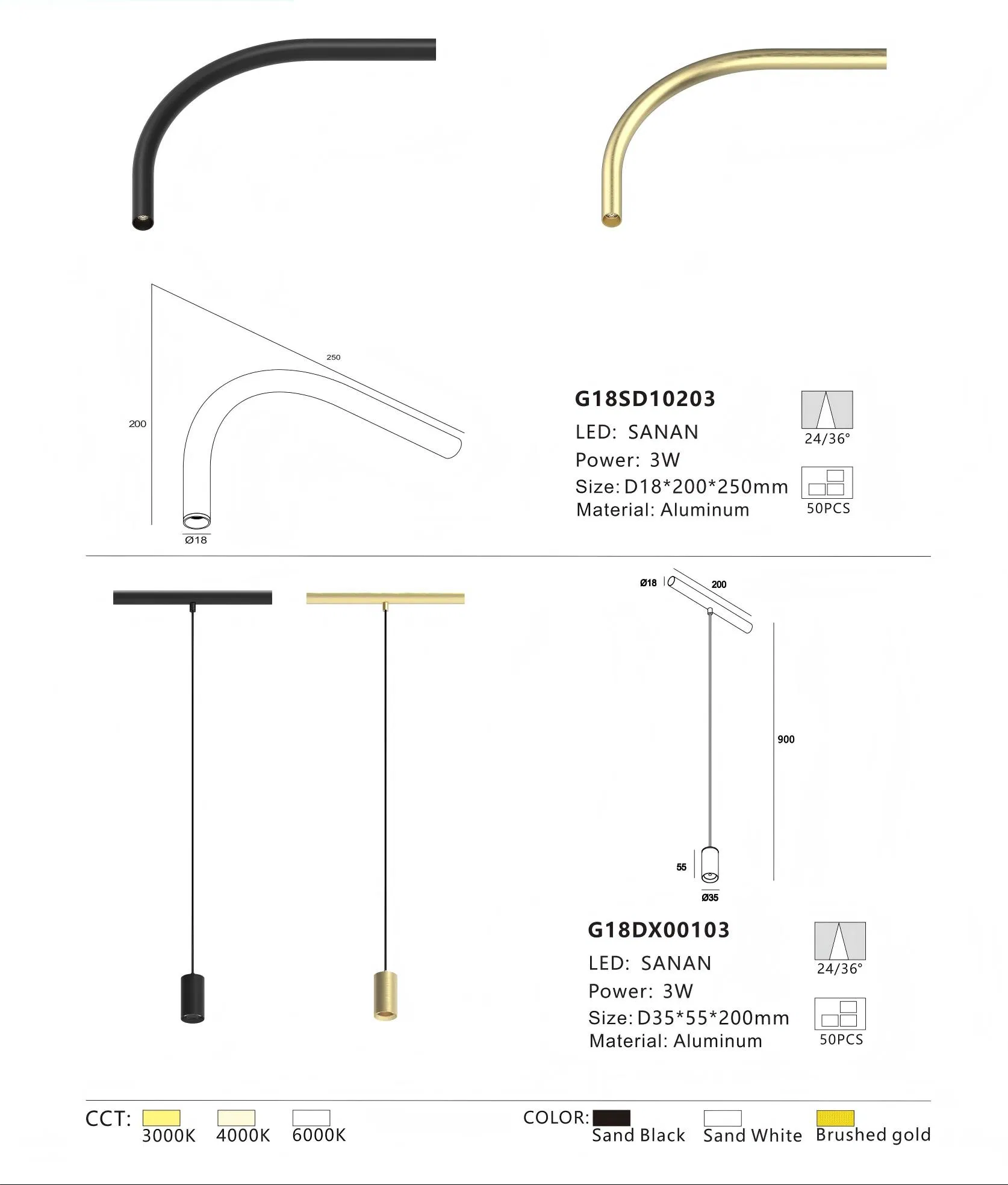

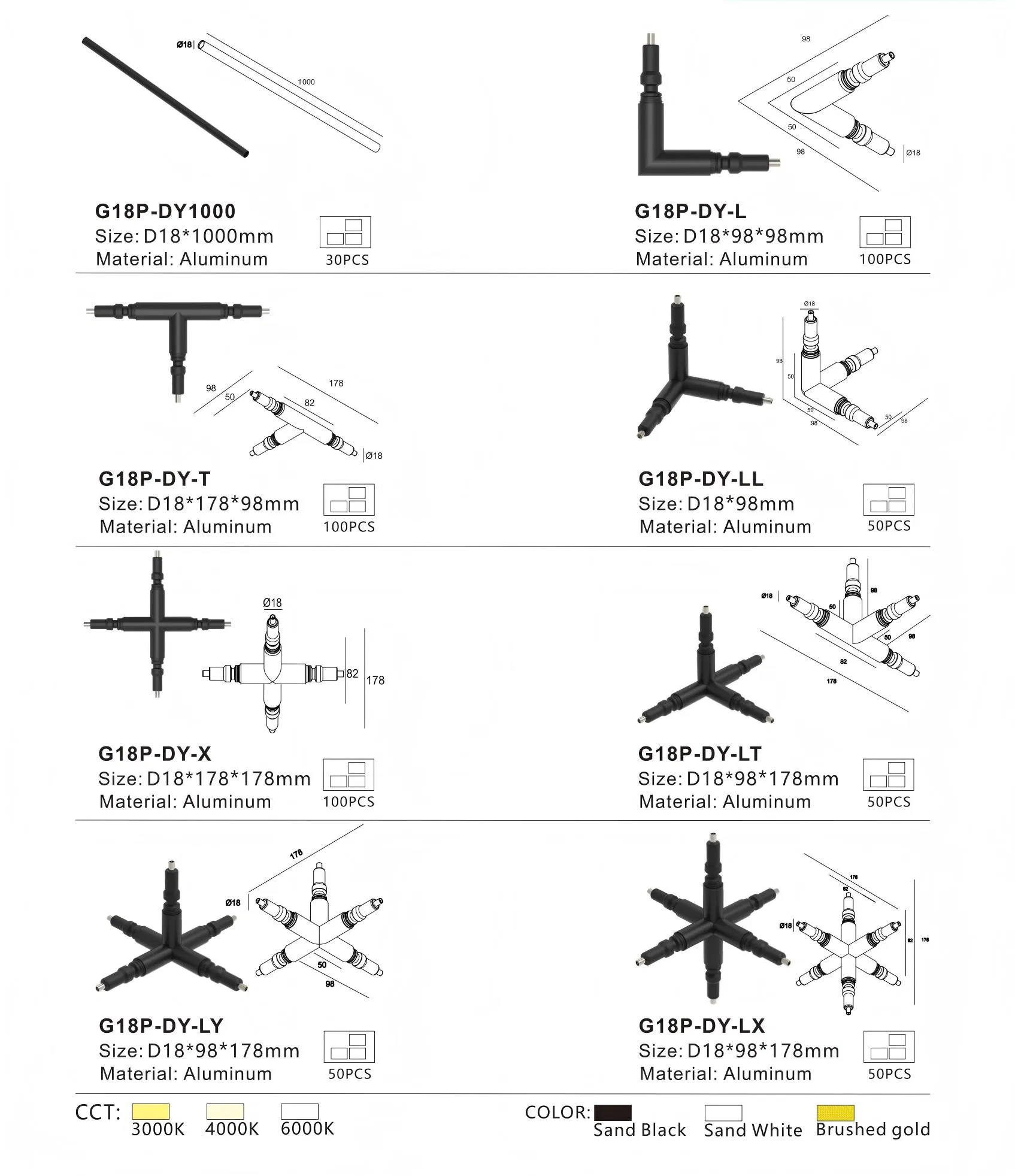

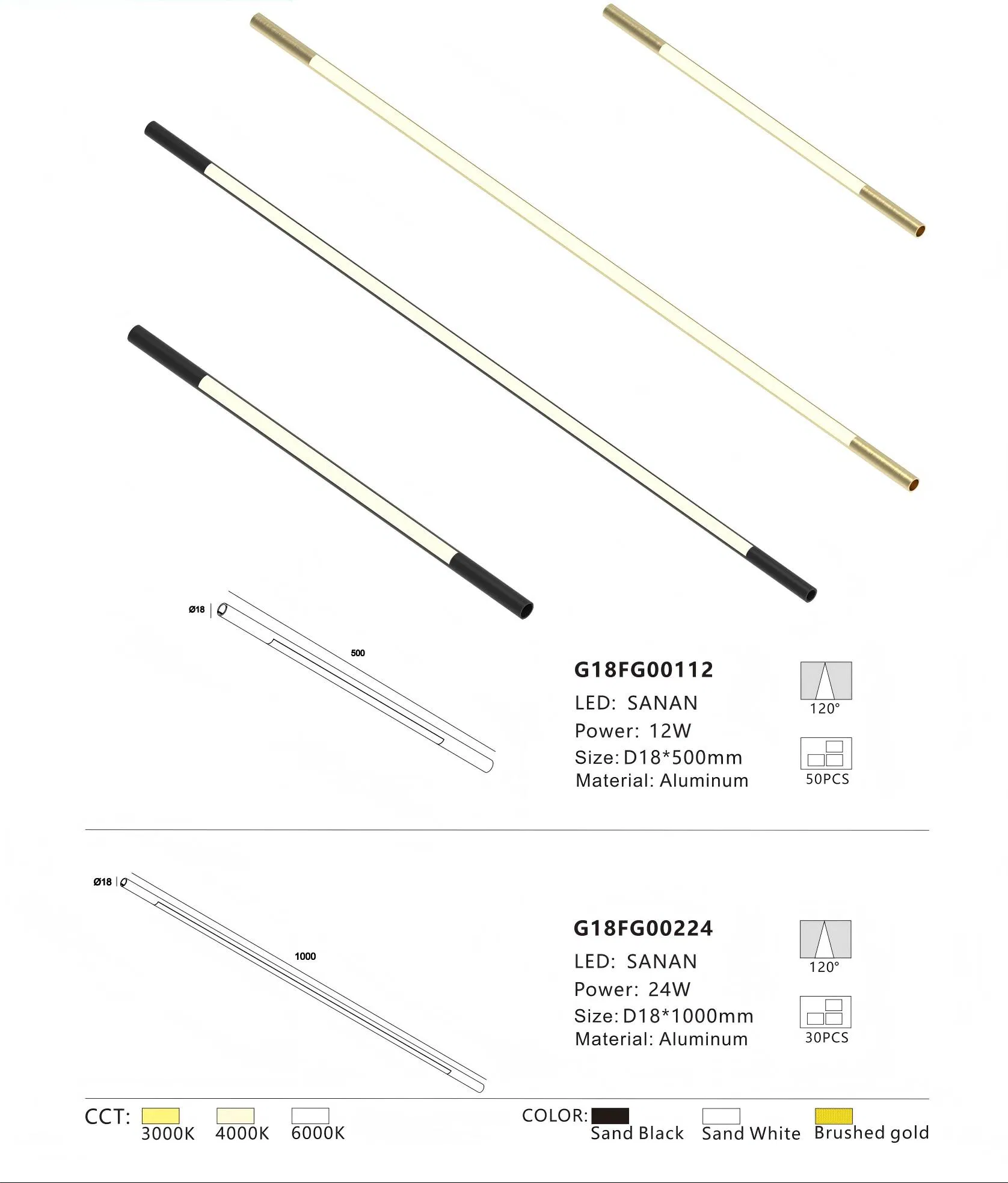

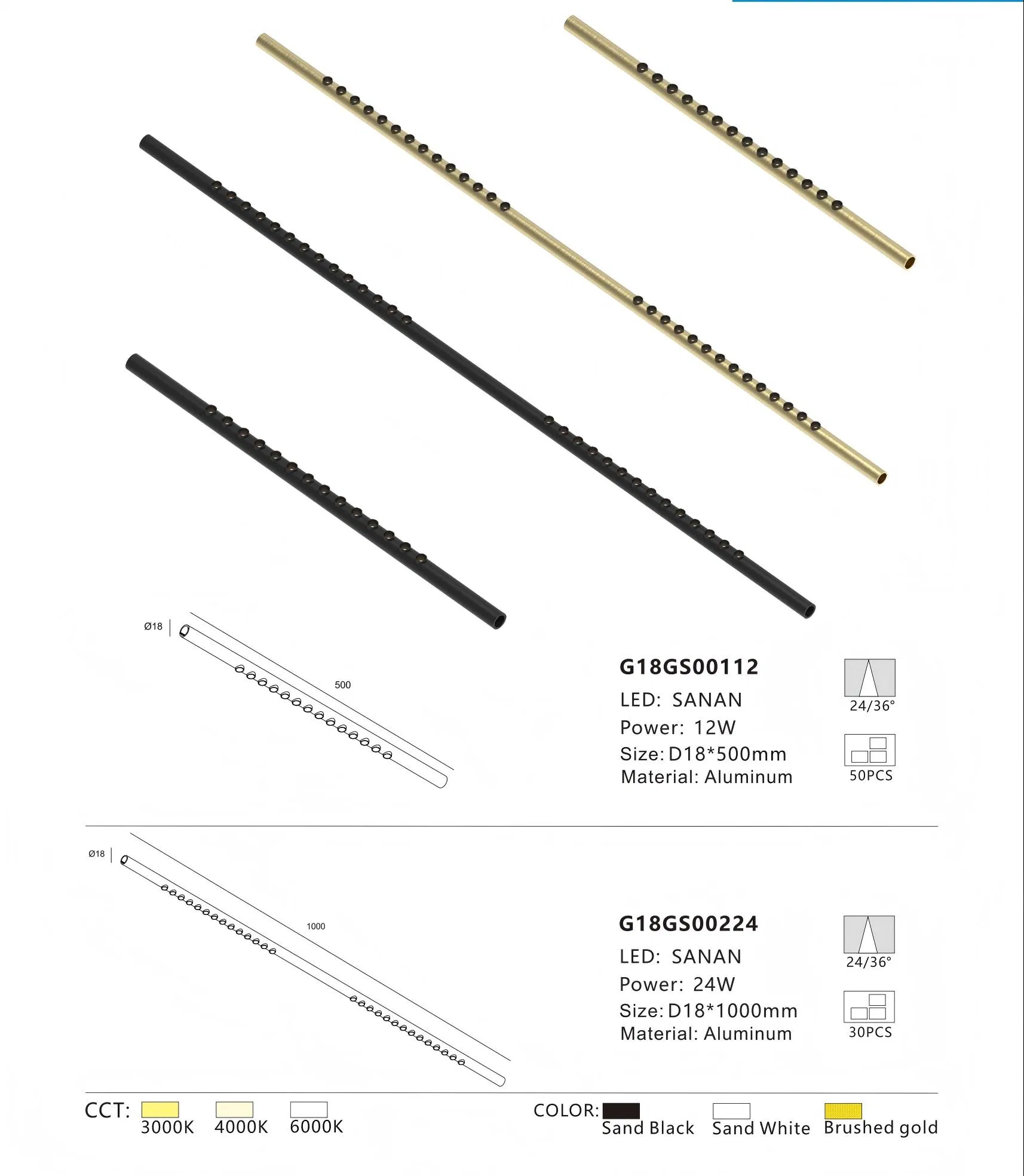

Specification Sheets
Featured Products

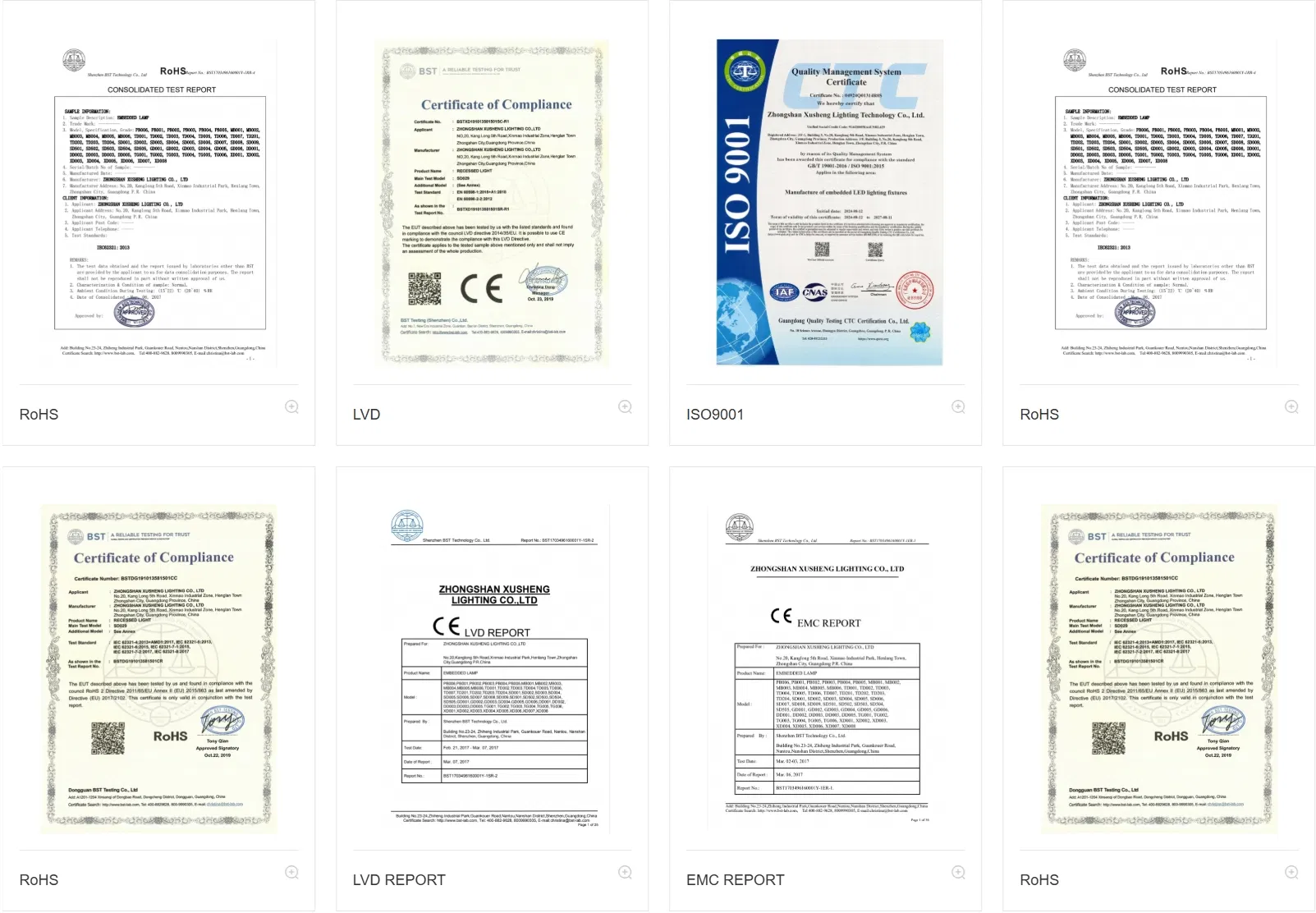

Certifications
All products comply with CE RoHS and other certifications as required by customers, and the factory has passed TUV quality inspection.
Manufacturing & Quality Control
We specialize in the design and production of LED lighting fixtures such as LED downlights, spotlights, and track lights. We export most of our products to Europe, South Asia, the Middle East, and South America. Our product offerings include premium frame housing series made from raw materials to completed finished products, enabling customized designs and highly competitive value.
Our manufacturing process follows a complete quality control system. All standard test documentations, IES files, spec sheets, and high-definition application photos are fully available upon customer request.

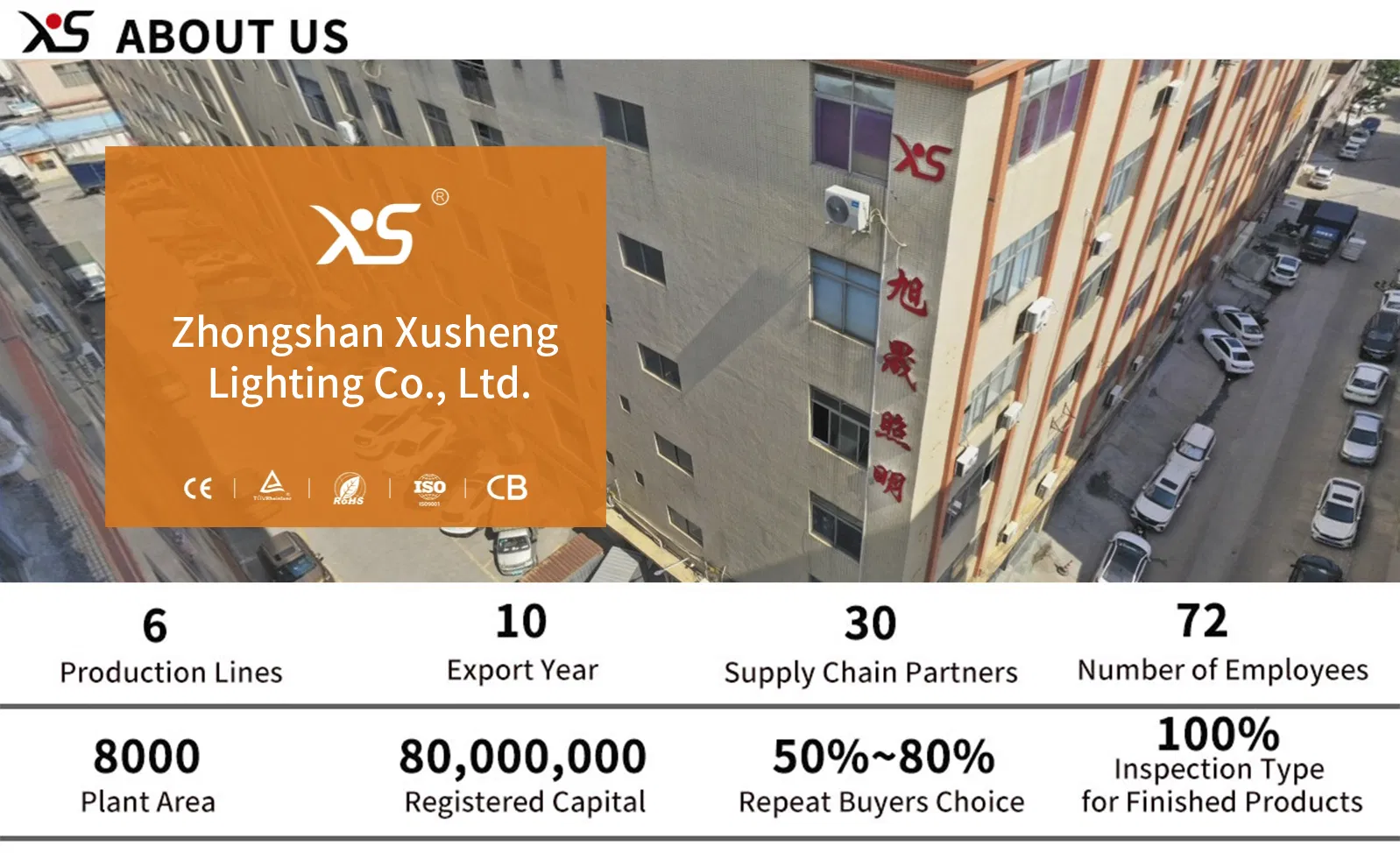

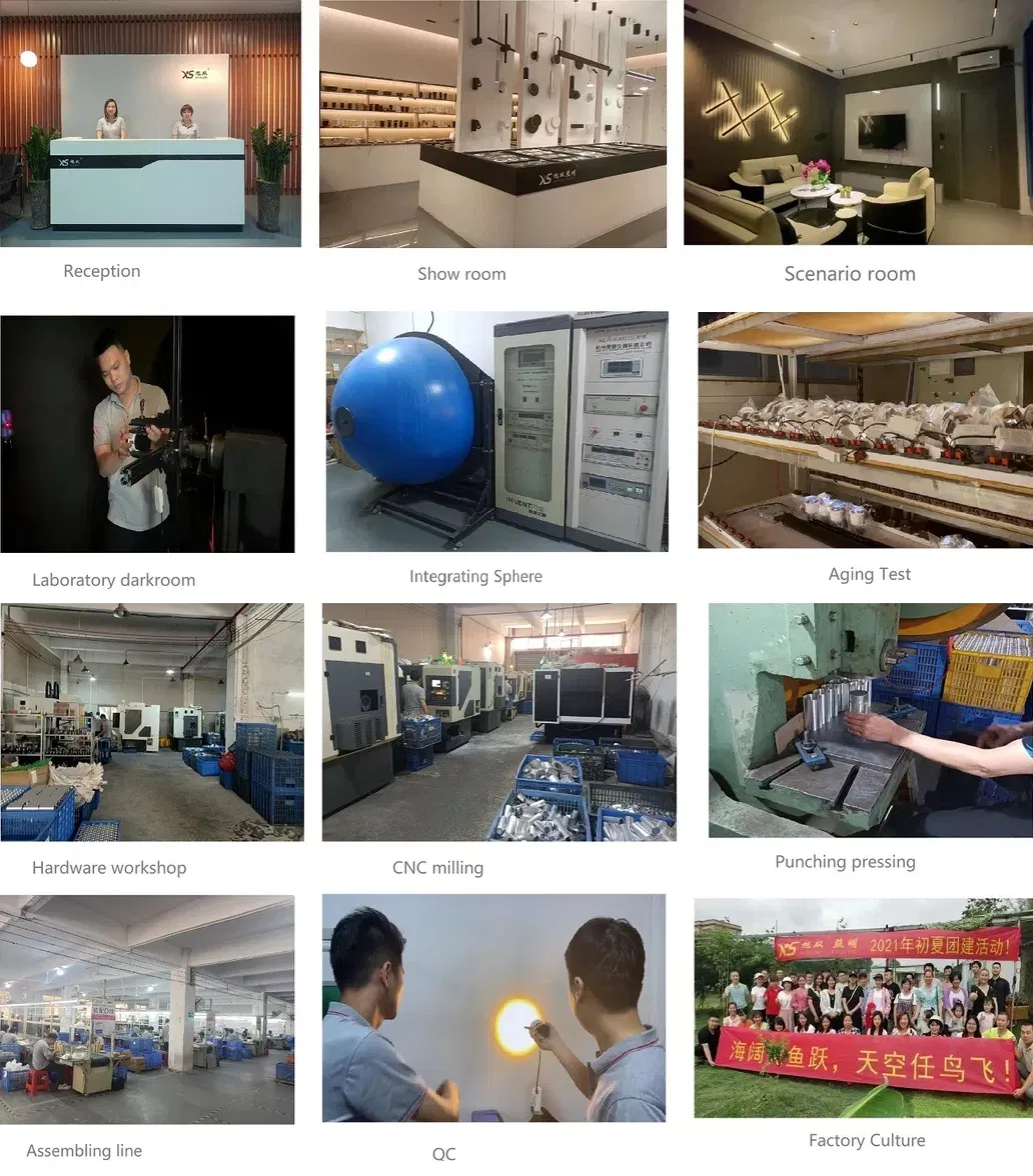

Production Workshop
International Exhibition
Our Services & Capabilities
Packaging & Shipping
Containers are safely packaged and shipped to global destinations with complete transit protection.
