C-Shape Aluminum Alloy Monorail Track for Trolley Working

Customization:	Available
Application:	Building Maintenance System
Carrying Capacity:	500kgs

Basic Info

Model NO.

C70

Certification

CE

Corrosion Resistance

Medium Corrosion Resistance

Installation Method

Bolted

Material

Alloy

Surface Treatment

Anodized

Rail Type

Monorail

Bending Angle

Max at 90 Degree

Rail Shape

C-Shape

Weight

7.49kg/Meter

Running Mode

Stationary

Structure

Bmu

Installation

Bmu

Driven Type

Electrical

Feature

Anti-Rust

Transport Package

Nude Packing

Specification

0

Origin

China

HS Code

8428909090

Production Capacity

30sets/Month

Packaging & Delivery

Package Size

100.00cm * 15.00cm * 15.00cm

Package Gross Weight

9.000kg

Product Description

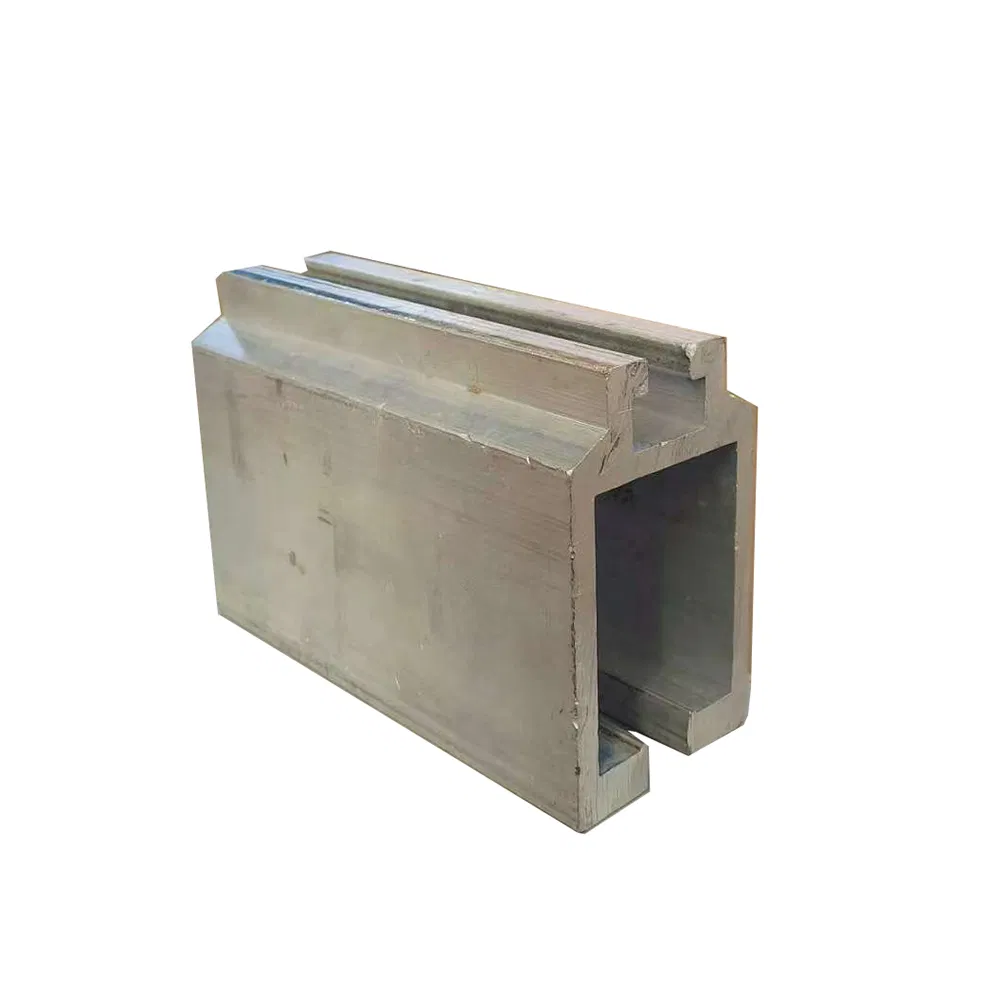

C-Shape Aluminum Alloy Monorail Track for Trolley Working

Product Parameters

Main Features of BMU

Monorail systems is by far considered as the most cost-effective and efficient window cleaning system in terms of purchase and running cost and having very minimal operation process.

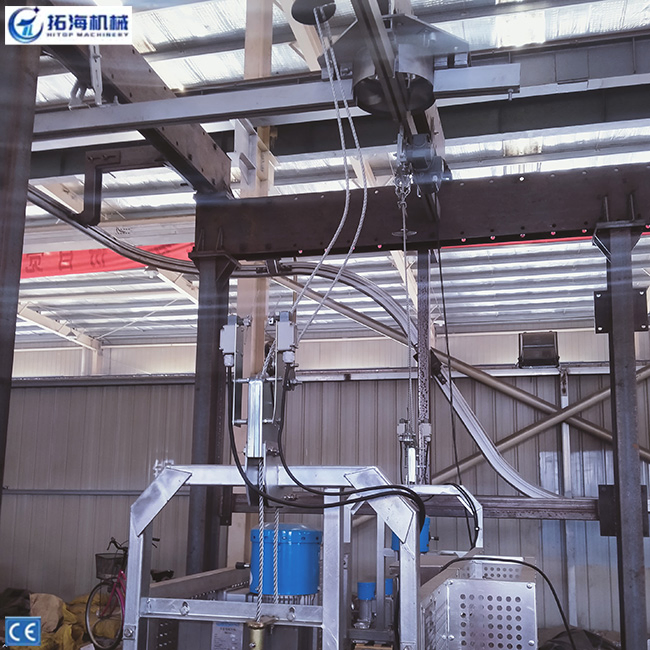

The monorail BMU is combined with self power cradle.

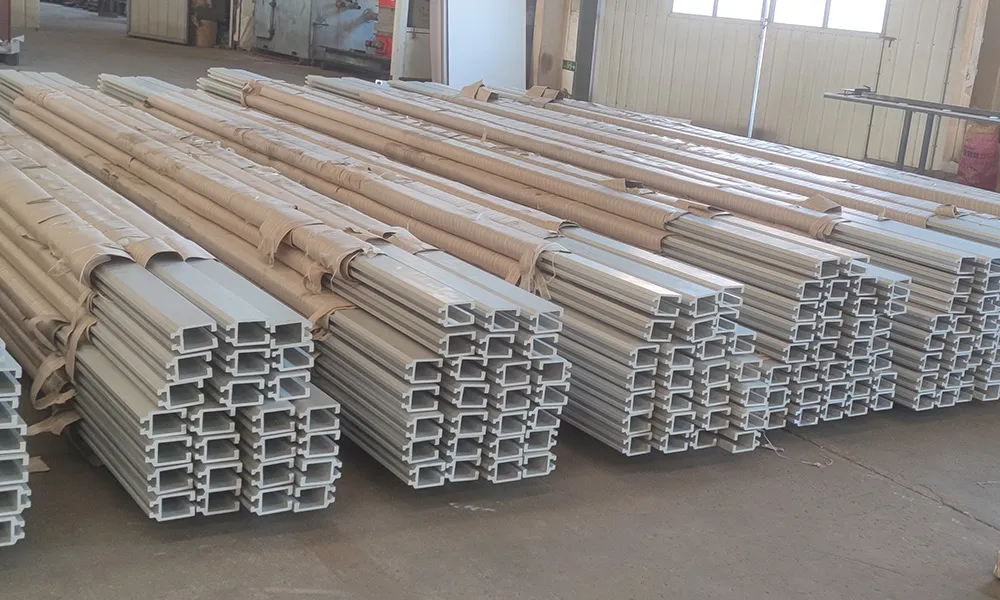

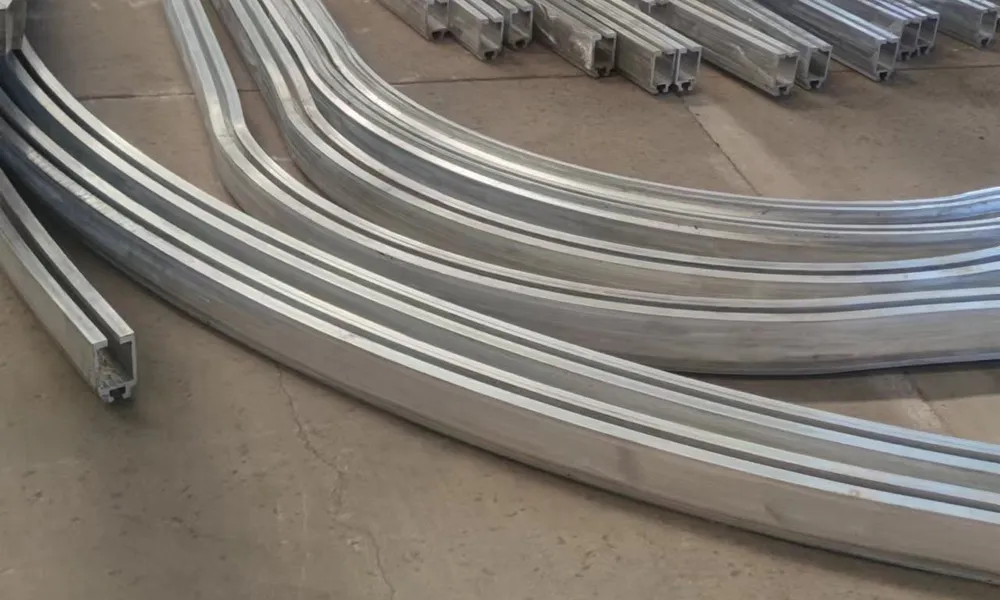

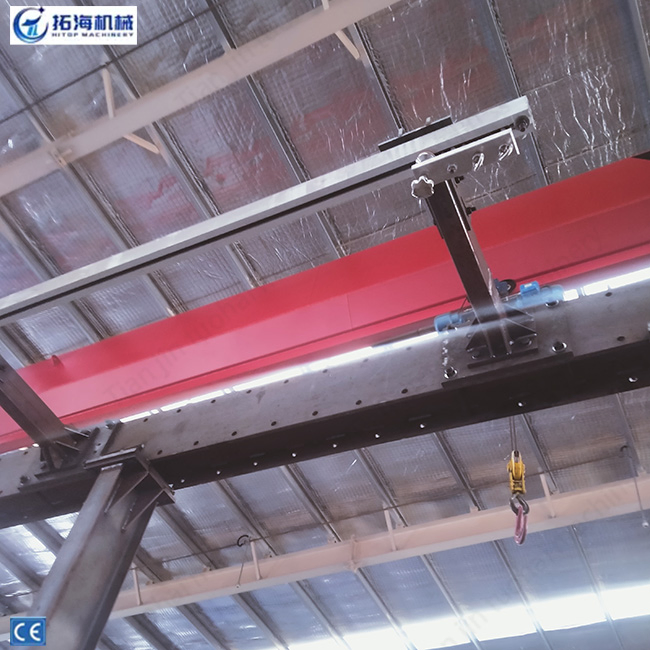

Monorail is an extruded aluminum element fixed outside of the building supported by steel brackets anchored to the concrete wall at intervals ranging from 1.0m to 2.5m, and used as a track way for trolleys from which the cradle will be suspended, it allows the cradle to traverse along the façade, these trolleys can be either manual or motorized depending on the application and project budget.

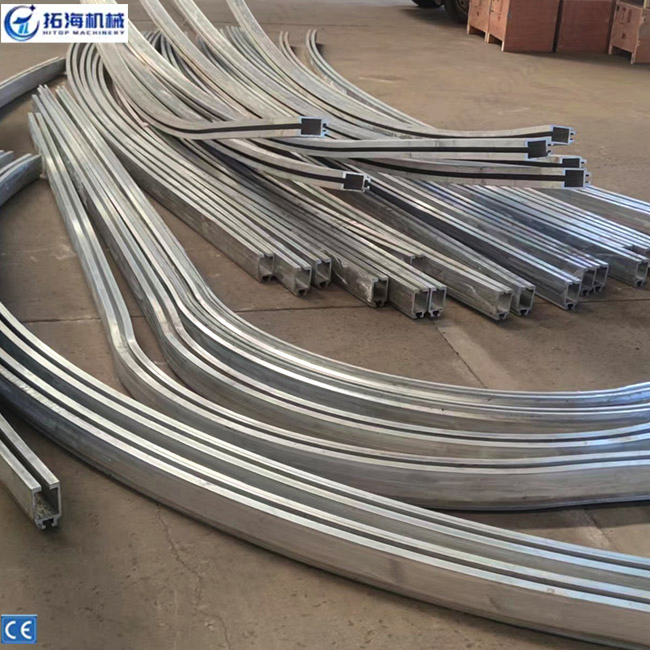

The simplicity of the system is the monorail can be bended to follow the contour of the building, it can be either ceiling mounted(C70) or face mounted(L70), the cradle can be configured to various sizes, and multiple cradle or glass lifting winches can be operated.

No	Item	Parameters
1	Model	C70 Monorail Track
2	Dimension(LWH)	Customized
3	Surface treatment	hot dip galvanized
5	Material	6061/T6
6	Weight	7.49kg/m
7	Interval of Brackets	Max 2500mm

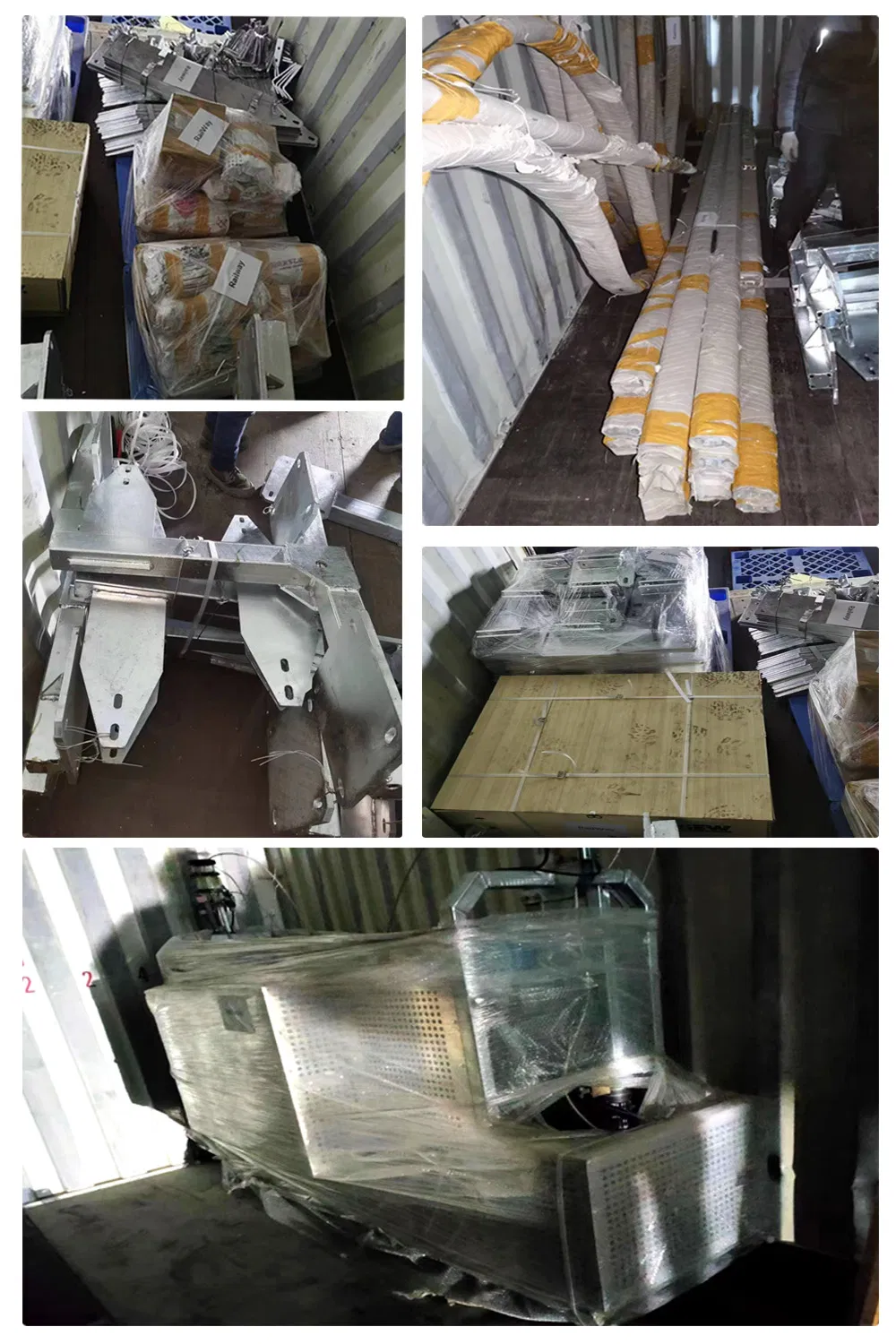

Packaging & Shipping

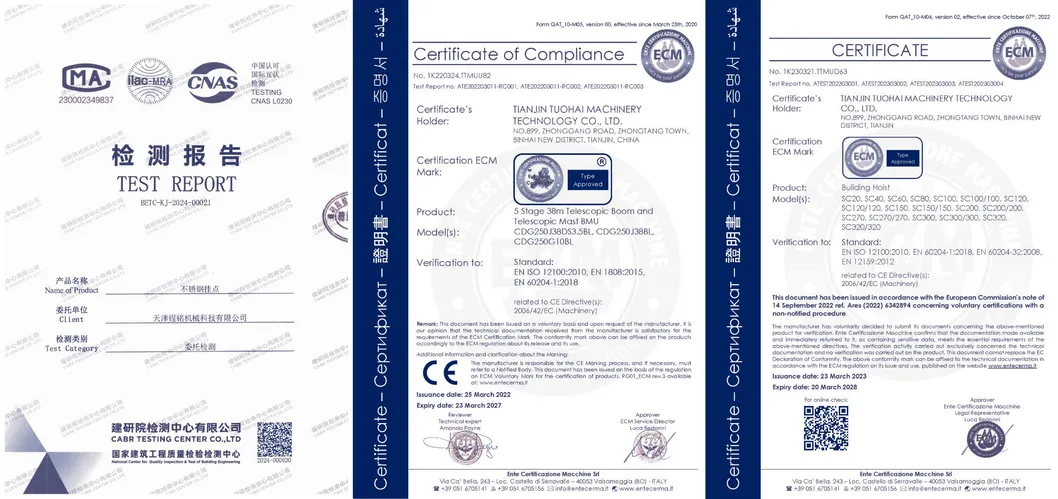

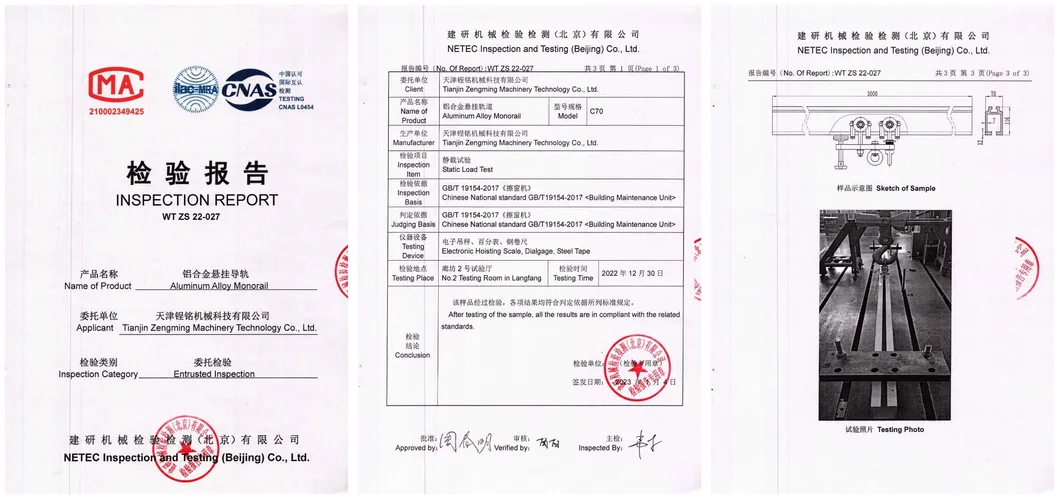

Certifications

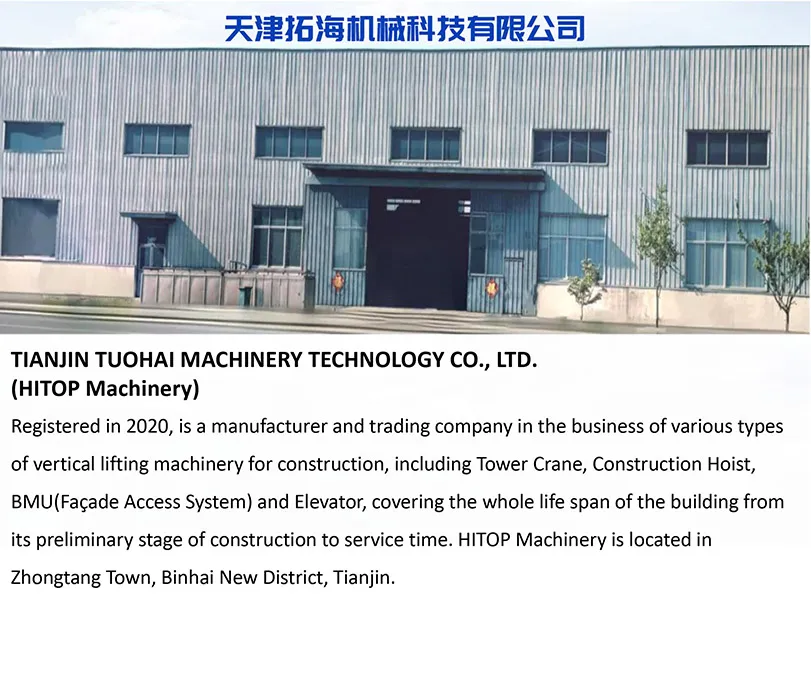

Company Profile

Employee team

The company has strong technical research and development strength, and the R&D personnel all have working experience in the Central Government Companies & Institute, are familiar with the European standards and Chinese National standards of the BMU, and have rich design and practical experience in the BMU.

At present, we have 2 professor-level senior engineer, 2 senior engineer, and 6 engineers.

Company Philosophy

We regard customer needs as our direction of progress, continuous innovation as our driving force, quality and brand as our core competitiveness for sustainable development.

Use the concept of long-termism to run through the entire process of our company's R&D, manufacturing and market development process, and strive to become the invisible champion in the vertical lift machinery industry.

FAQ

Q1Are you a factory or trading company?

We are both trading and manufacturer.

Q2Can you make customized design / size / packaging?

Yes, of course, we have our own factory, we have engineers in this field. We can make products according to customer's requirement such as capacity, materials, logo, packaging.

Q3How about your quality control?

We have passed the ISO9001, CE, SGS certificates. We have own QC to check mass productions in the factory. 100% quality check and durable testing before each of shipment.

Q4What is the MOQ?

No MOQ requirements.

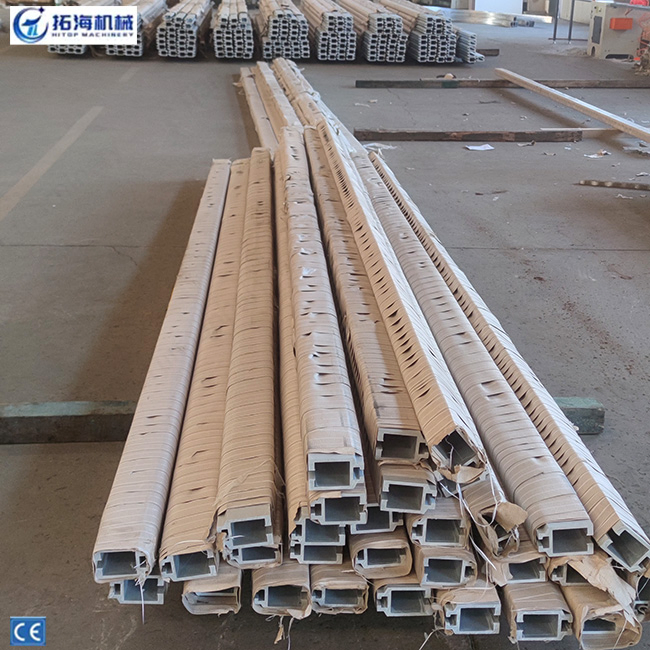

Q5What are your terms of packing?

Big parts wrapped with plastic films and fixed in container. Small parts in paper cartons or wooden boxes. For delivery in LCL, all will be packed in wooden crates.

Q6What are your Payment methods?

T/T, Paypal, Western Union, L/C
