Monorail systems is by far considered as the most cost-effective and efficient window cleaning system in terms of purchase and running cost and having very minimal operation process.

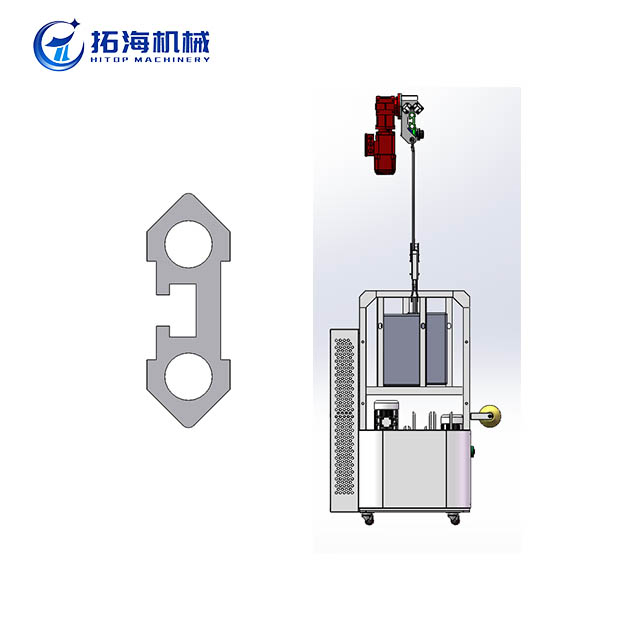

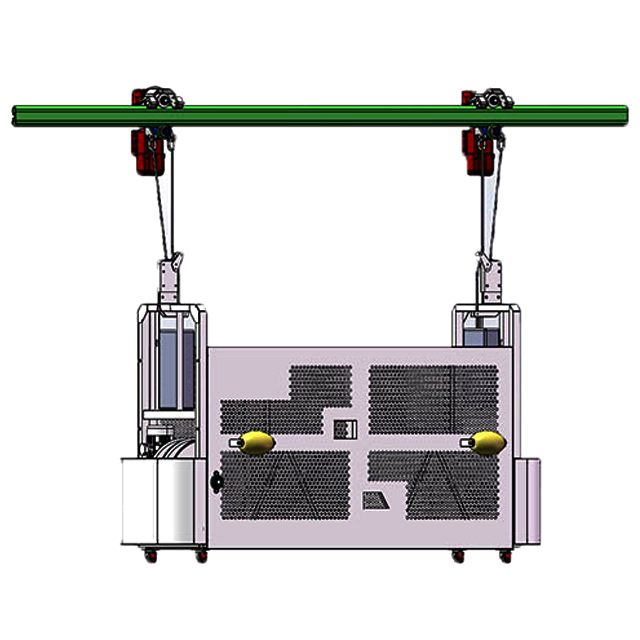

The monorail BMU is combined with self power cradle.

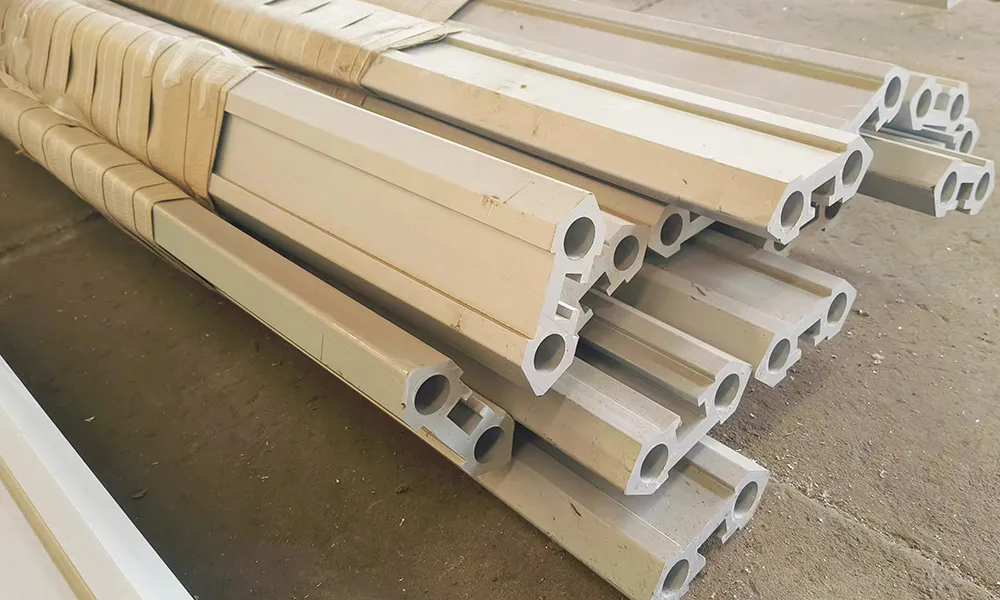

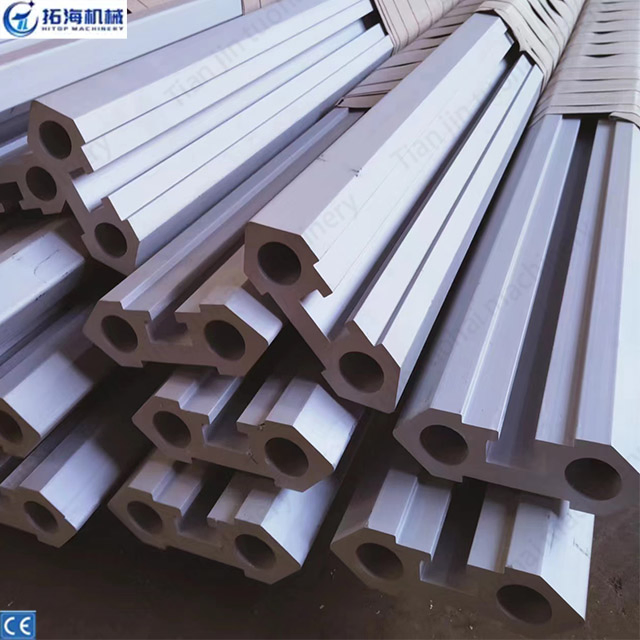

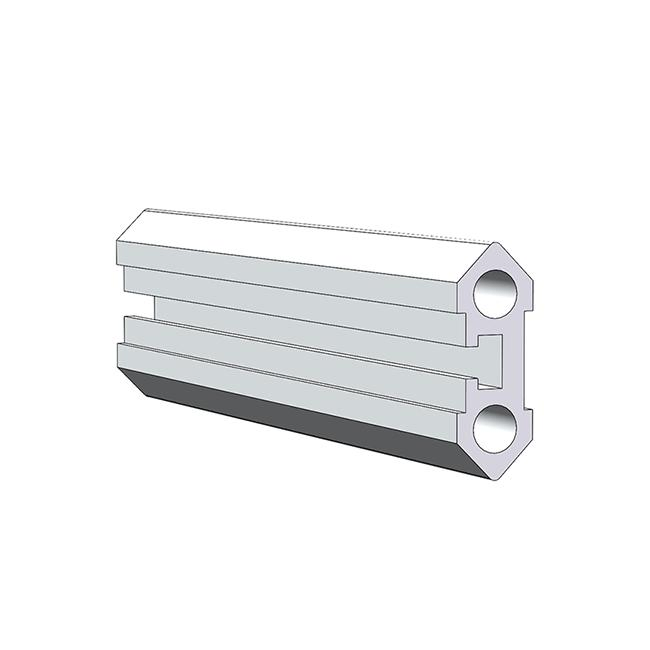

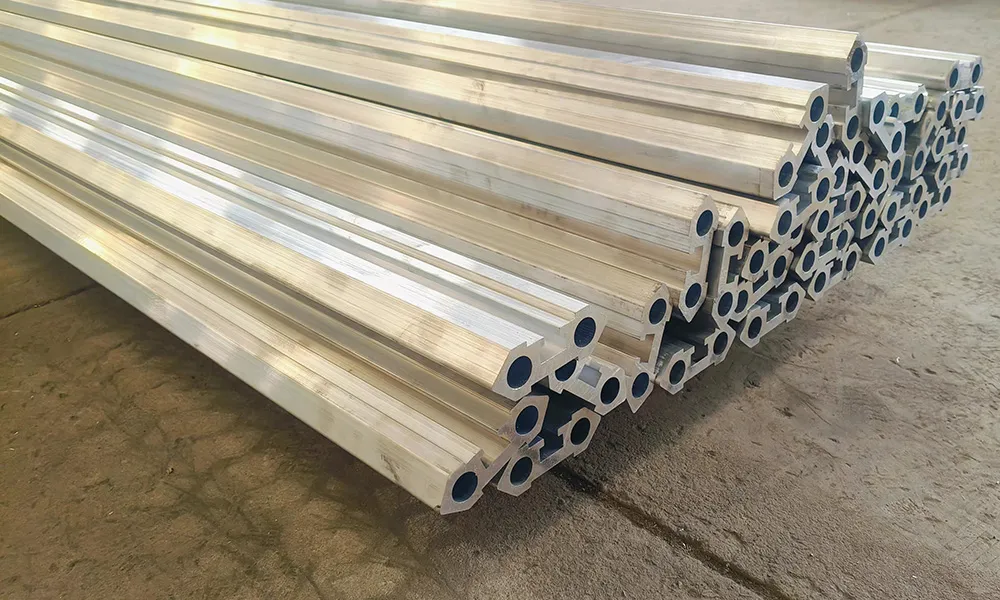

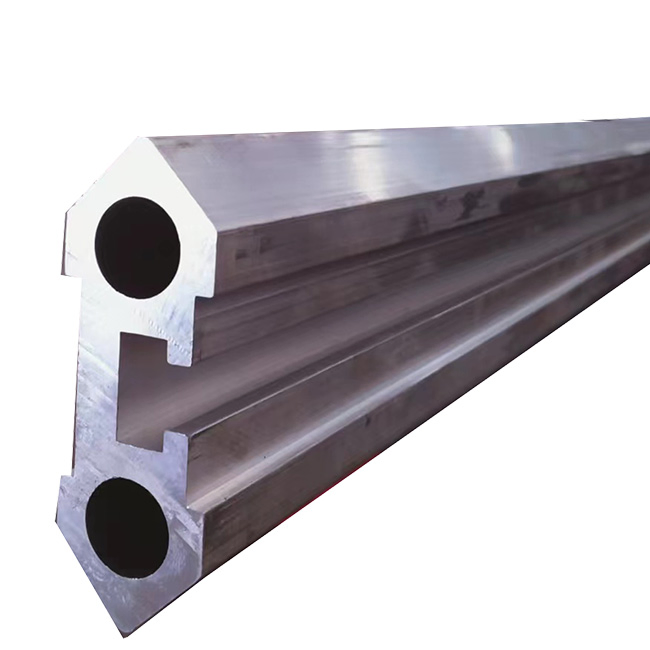

Monorail is an extruded aluminum element fixed outside of the building supported by steel brackets anchored to the concrete wall at intervals ranging from 1.0m to 2.5m, and used as a track way for trolleys from which the cradle will be suspended, it allows the cradle to traverse along the façade, these trolleys can be either manual or motorized depending on the application and project budget.

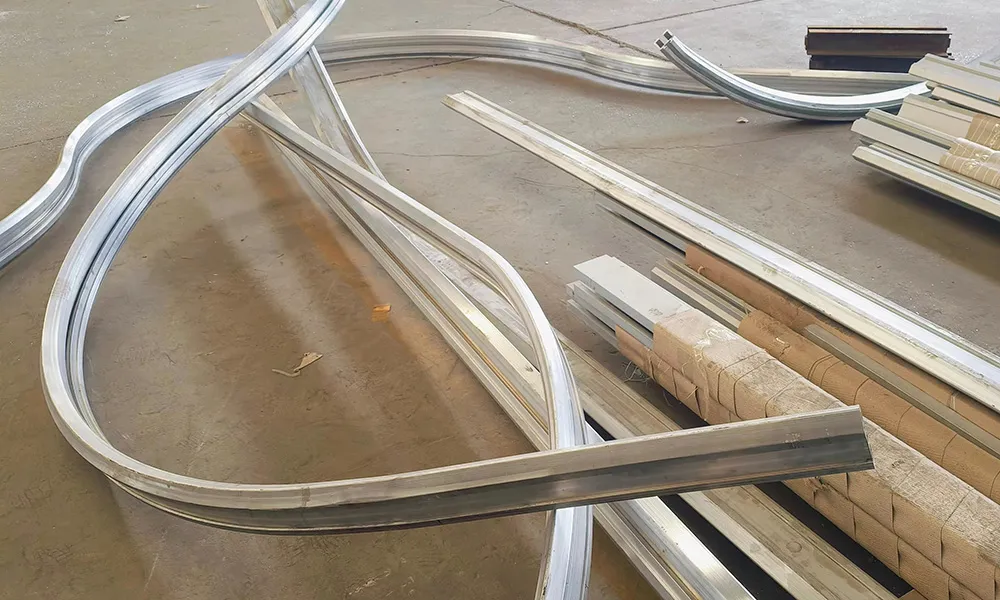

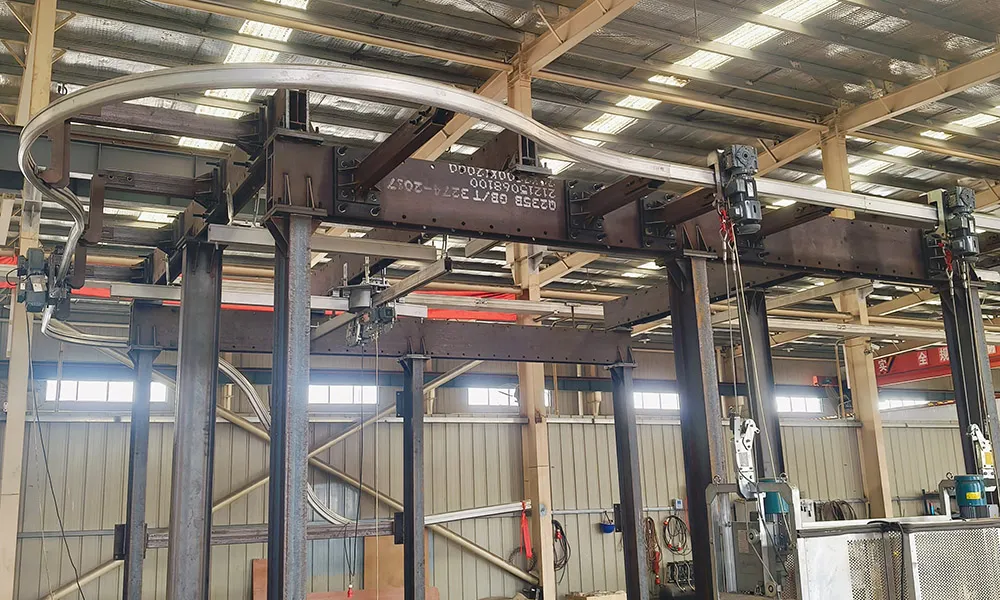

The simplicity of the system is the monorail can be bended to follow the contour of the building, it can be either ceiling mounted(C70) or face mounted(L70), the cradle can be configured to various sizes, and multiple cradle or glass lifting winches can be operated.
| No | Item | Parameters |
|---|---|---|
| 1 | Model | L70 Monorail Track |
| 2 | Dimension(L*W*H) | Customized |
| 3 | Surface treatment | hot dip galvanized |
| 5 | Material | 6061/T6 |
| 6 | Weight | 7.49kg/m |
| 7 | Interval of Brackets | Max 2500mm |
