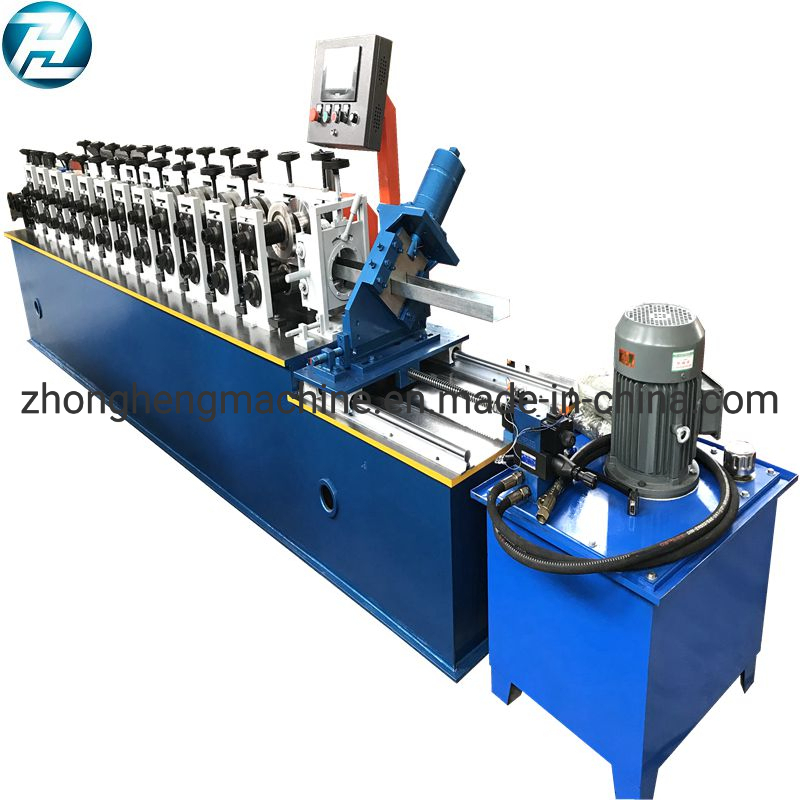

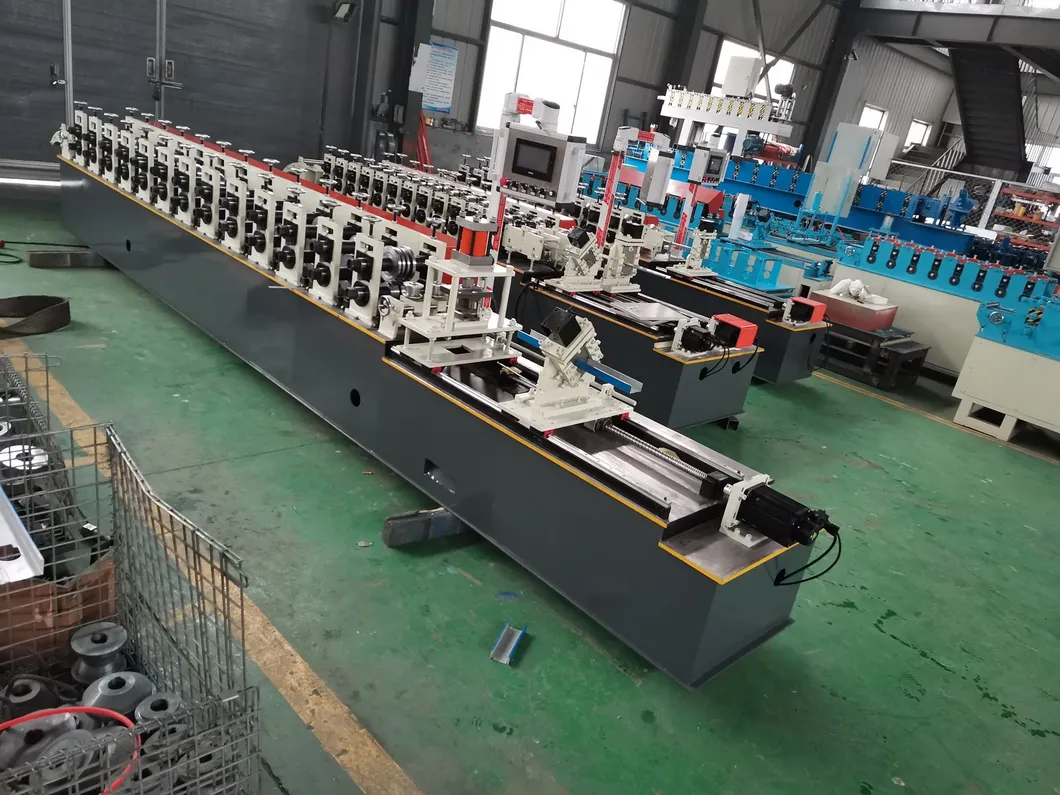

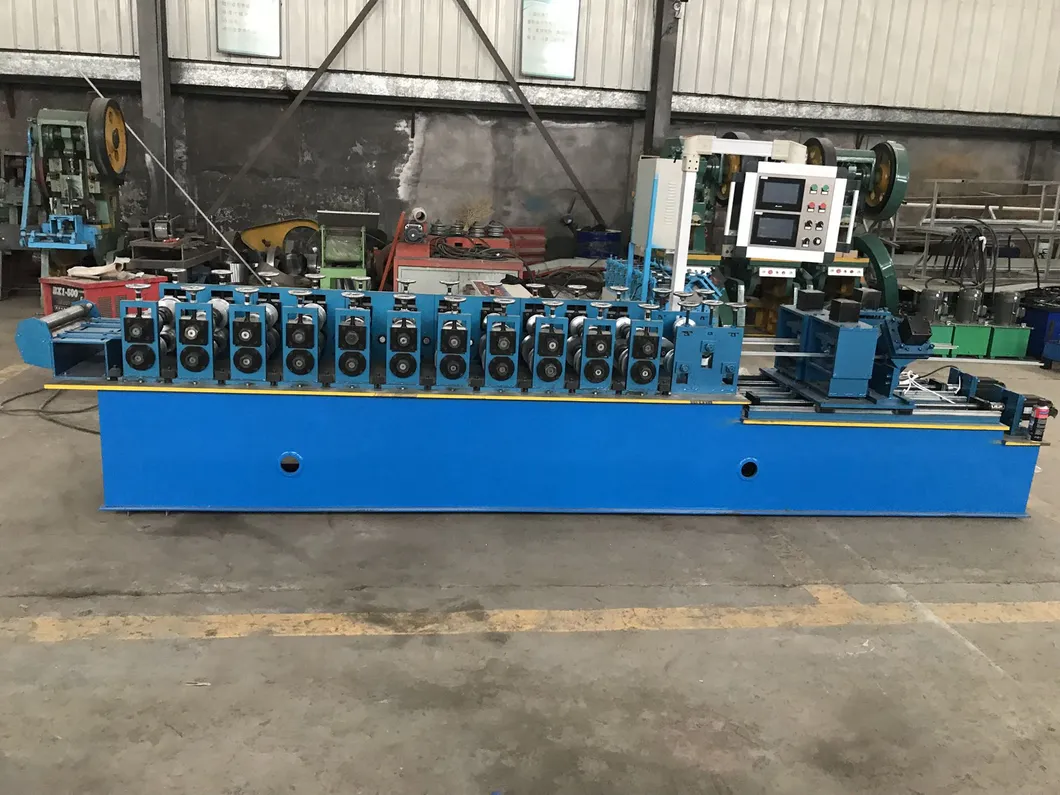

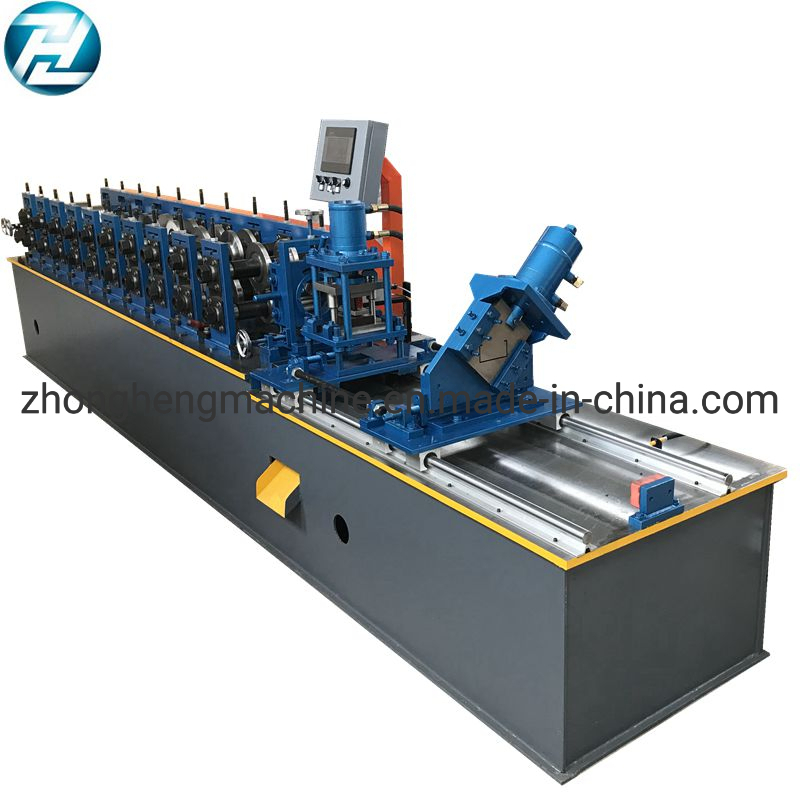

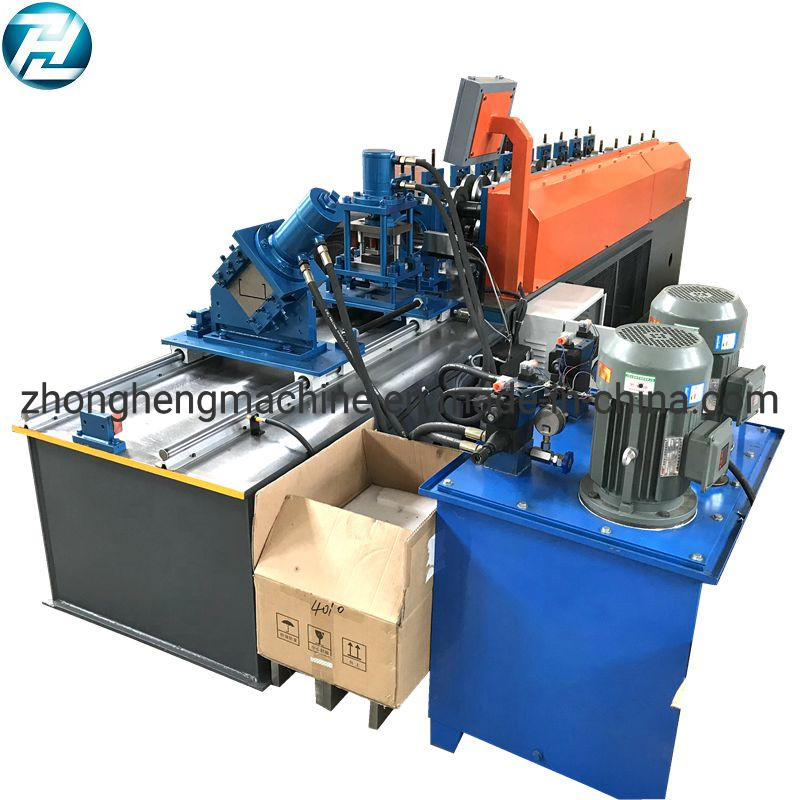

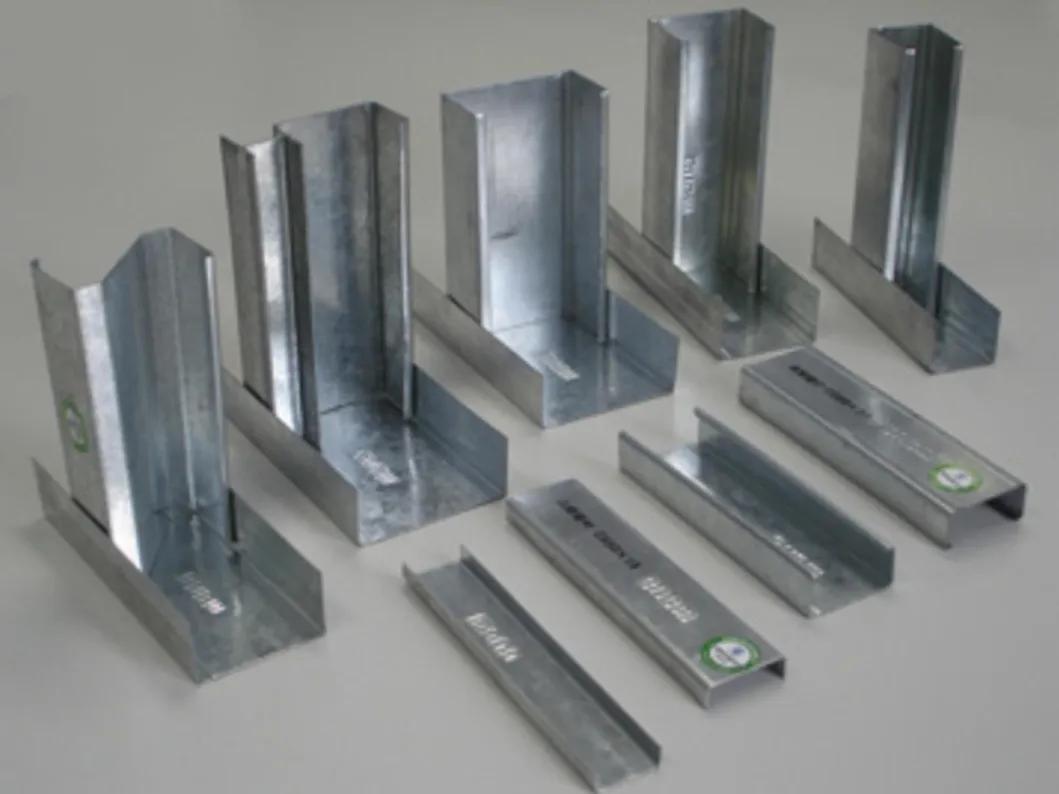

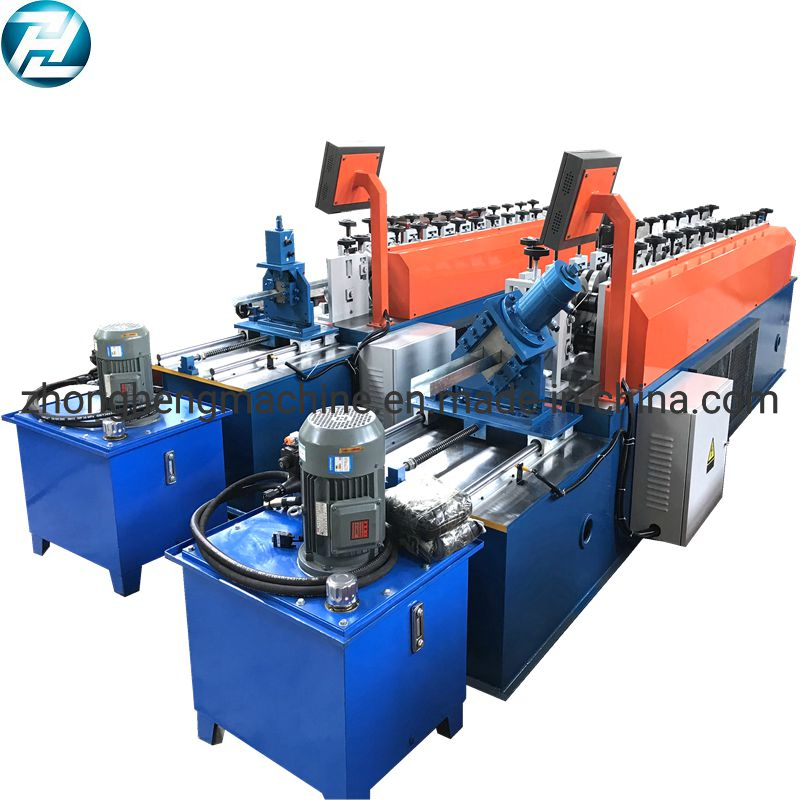

Light steel keel forming machine uses steel as a raw material, by continuous cold rolling molding to produce complex profiles sections of multiple types and versatile applications. The light steel keel molding machine is used for plaster board, gypsum board and other decorative finishes lightweight boards made for non-load-bearing walls and roofs of building style decoration. It creates a variety of decorative building roof shapes, inside and outside building walls, and ceiling scaffolding base materials.
| Specification Item | Technical Value / Standard |
|---|---|
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works, Other |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location | Philippines, Brazil, Sri Lanka, South Africa |
| Showroom Location | None |
| Condition | New |
| Type | Light steel keel roll forming machine |
| Tile Type | Galvanized strips |
| Use | ROOF |
| Production Capacity | 15-25m/min |
| Voltage | 380v |
| Dimension (L*W*H) | 5600*800*1500mm |
| Weight | 3.2 ton |
| Certification | CE, ISO |
| Warranty | 2 years |
| Key Selling Points | Famous brand PLC |
| Rolling Thickness | 0.3-0.8mm |
| Motor Power | 3kw |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Marketing Type | NEW Product 2020 |
| Warranty of Core Components | 2 years |
| Core Components | Motor, Bearing, Pump, Engine, PLC |
| Raw Material | PPGL/PPGI/GI/GL and so... |
| Roller Material | 45# steel Chrome Plated |
| Thickness | 0.35--1.0mm |
| Control System | PLC (imported Brand) |
| Cutting Blade Material | Cr 12 Steel |
| Shaft Material | 45# Steel |
| Suitable to Process | Galvanized strips |
| Usage | Construction |
This machine is designed to process PPGL, PPGI, GI, GL, galvanized steel strips, and colored steel. It handles thickness ranges from 0.3mm to 0.8mm (up to 1.0mm for specific profile components).
The machine features a standard rolling speed of 15 to 25 meters per minute, providing a highly efficient production output of up to 20 sets of complete structures per month.
Both the machine and its core components (including the motor, bearing, pump, engine, and PLC) come with a 2-year warranty. The machine is CE and ISO certified with factory inspection and video test reports provided before shipment.

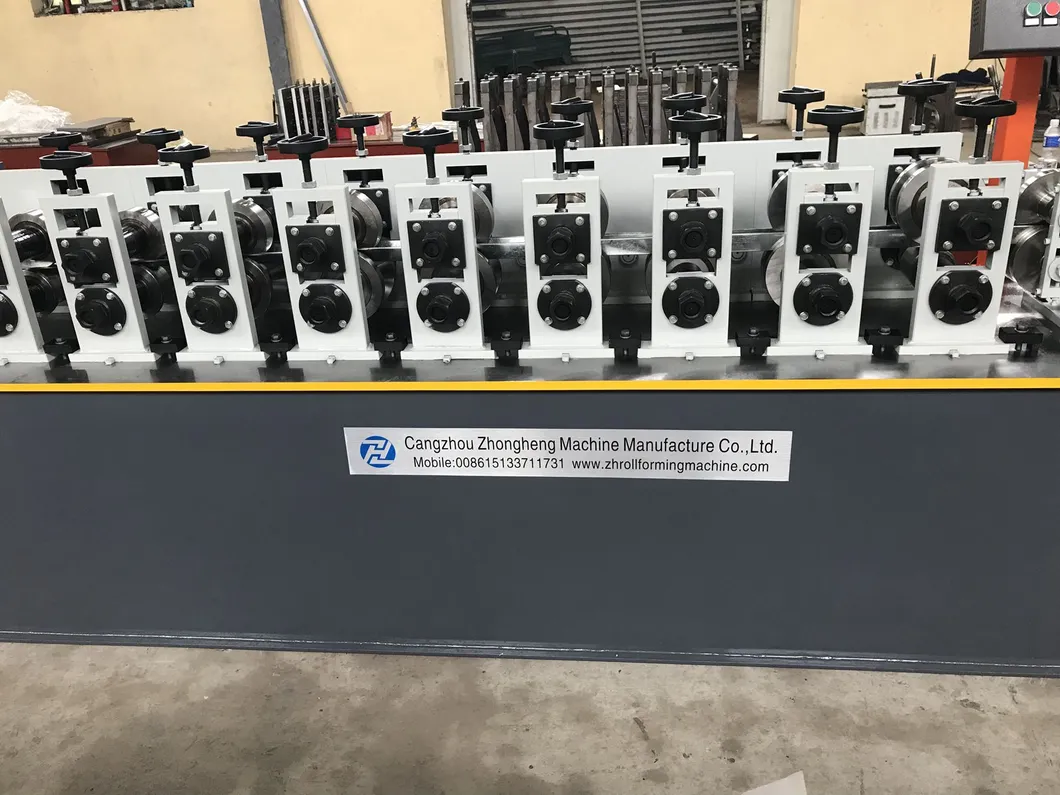

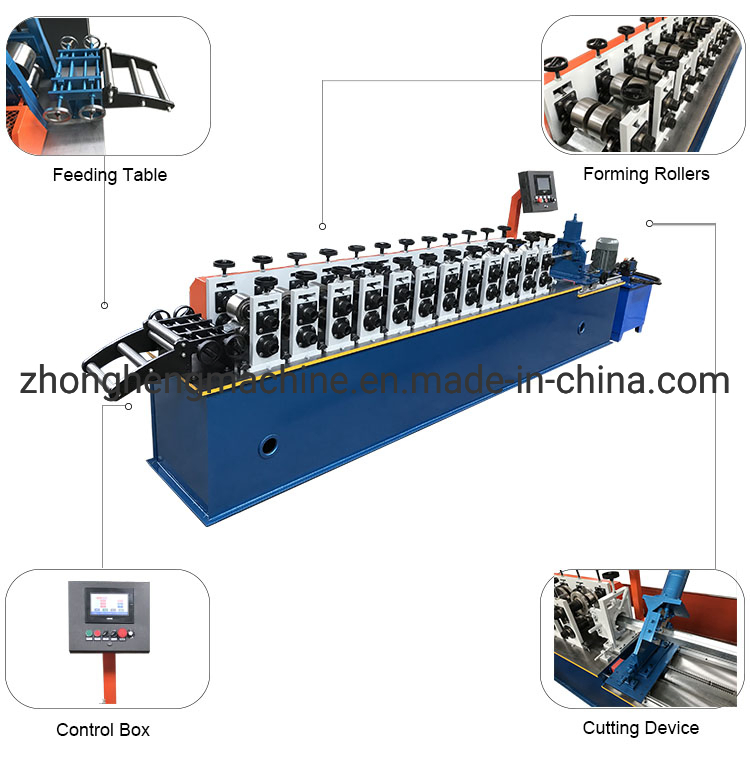

Operation is managed using an imported brand PLC control system. Highly durable Cr12 steel cutting blades and 45# chrome-plated steel rollers ensure precise profile formation and clean cutting actions.

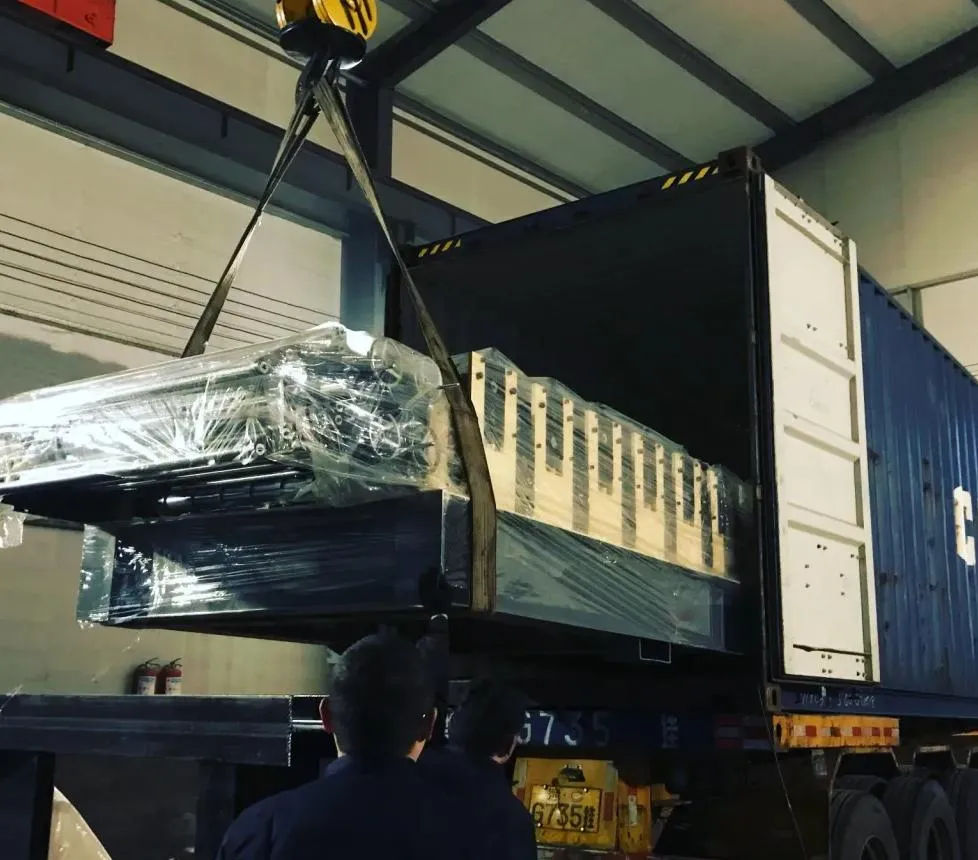

The equipment requires one 20-foot or 40-foot container for loading. Our professional technicians manage container loading to prevent any movement or damage during sea transport.
We offer comprehensive post-sales options, including video technical support, online troubleshooting assistance, replacement spare parts, and on-site field maintenance and repair services.
