Ranko Power
1 / 3

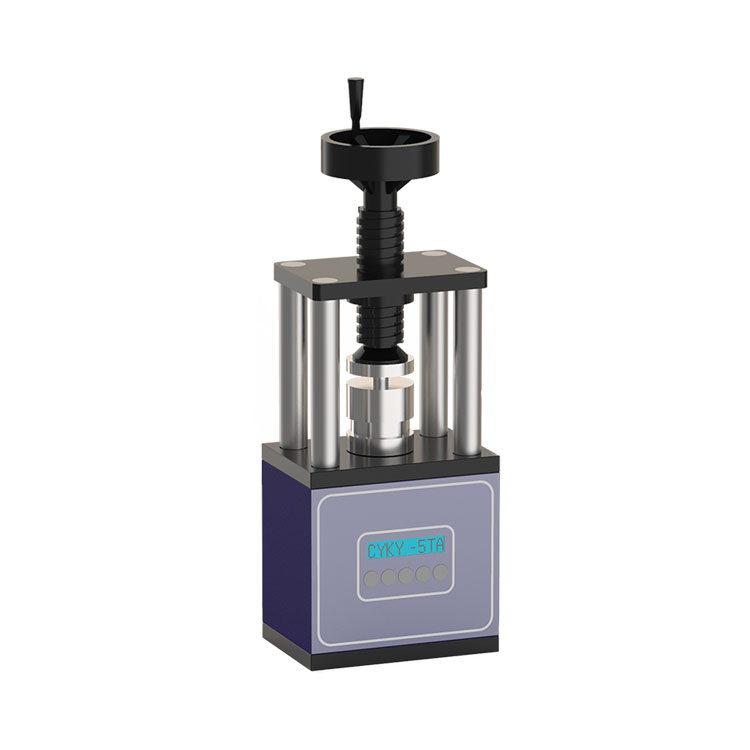

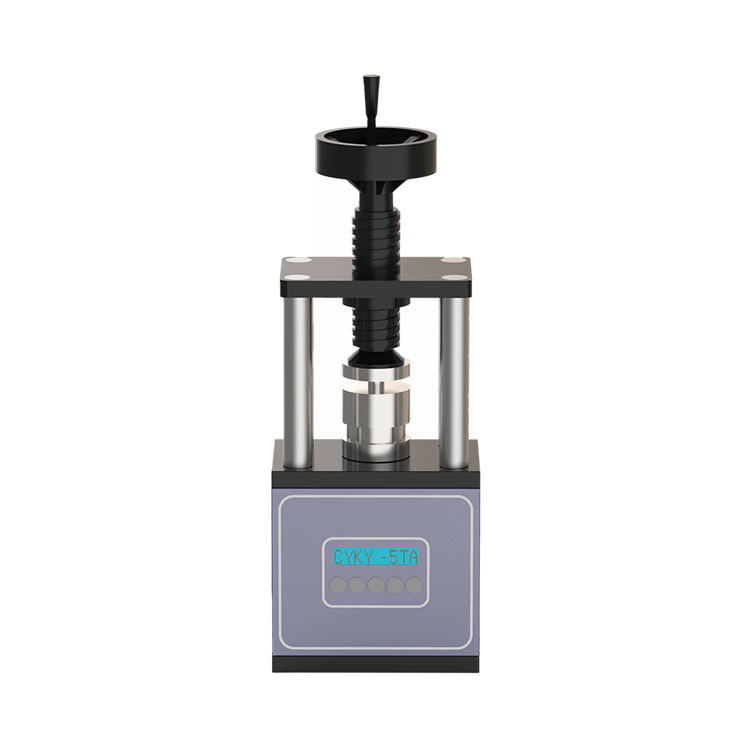

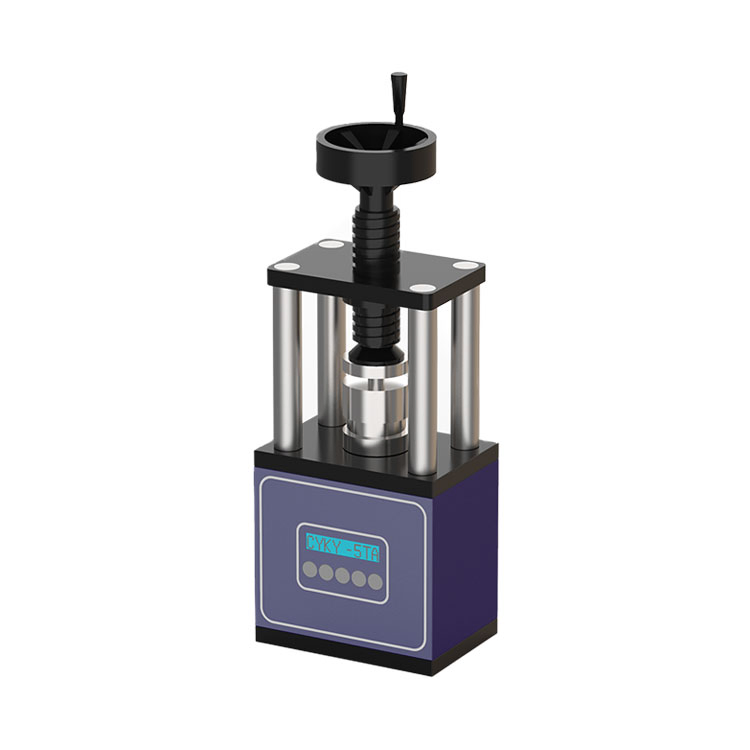

CY-5TA is a small oil-free electric press specially designed for use in glove boxes. It can press some oxygen-sensitive materials and the maximum pressure is 50000N. Therefore, the press is driven by a DC24V motor and can be used in a glove box protected by an argon atmosphere. It also completely solves the problem of oil leakage in the glove box of the traditional hydraulic press (the actual product shall prevail, the picture is for reference only).
| Parameter | Details |
|---|---|
| Working voltage |
The host input voltage is 24VDC Equipped with 110-240V AC to 24VDC power adapter. Adapter power: 90W |
| Pressure drive |
Adopts DC 24V DC reduction motor drive Motor power: 75W, reduction ratio: 1:20 |
| Pressure control |
Pressure display range: 10-50000 Newton Pressure control range: 1000-50000 Newton (adjustable) Constant pressure accuracy: ±50 N |
| Working space |
150mm(L) x 100mm(W) x 120mm(H) (adjustable height) According to different sample sizes, different sizes of pads can be configured |
| Press stroke | 35 mm |
| Instrument size | 240mm(L) x 165mm(W) x 560mm(H) |
| Instrument weight | About 35kg |
