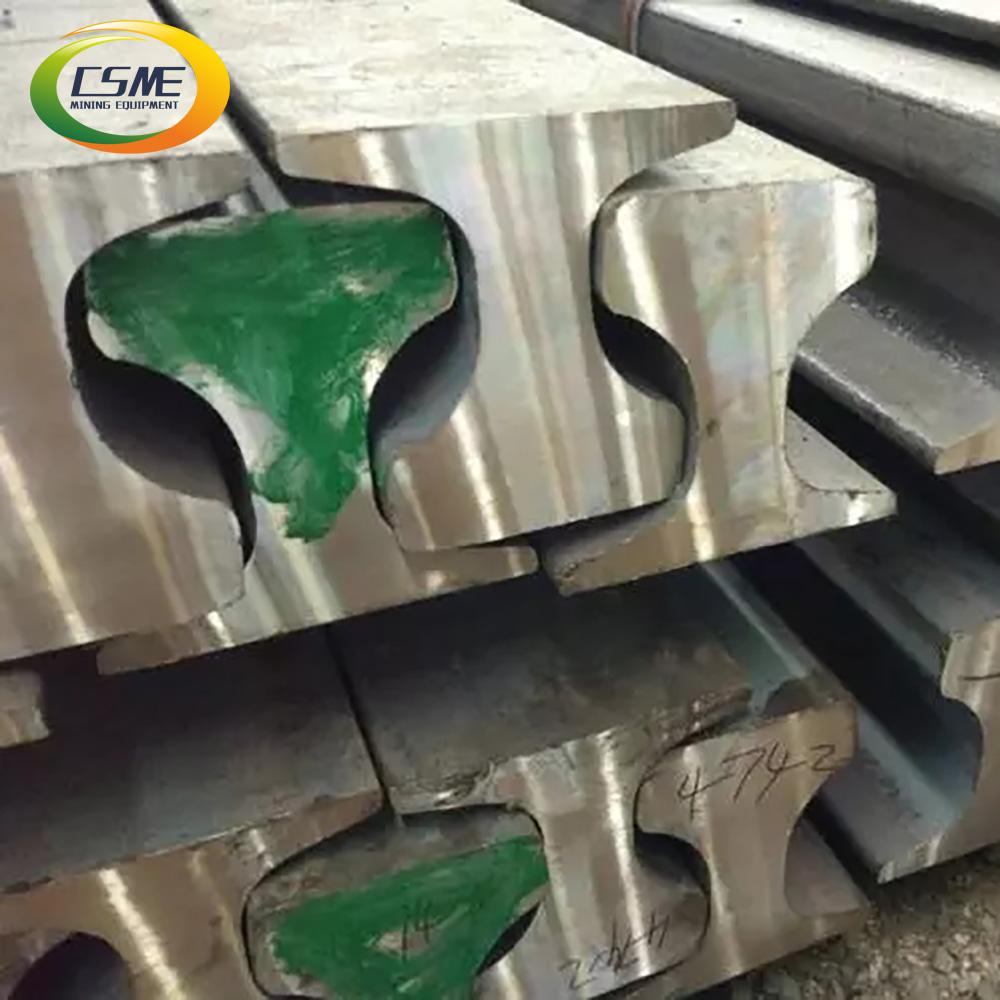

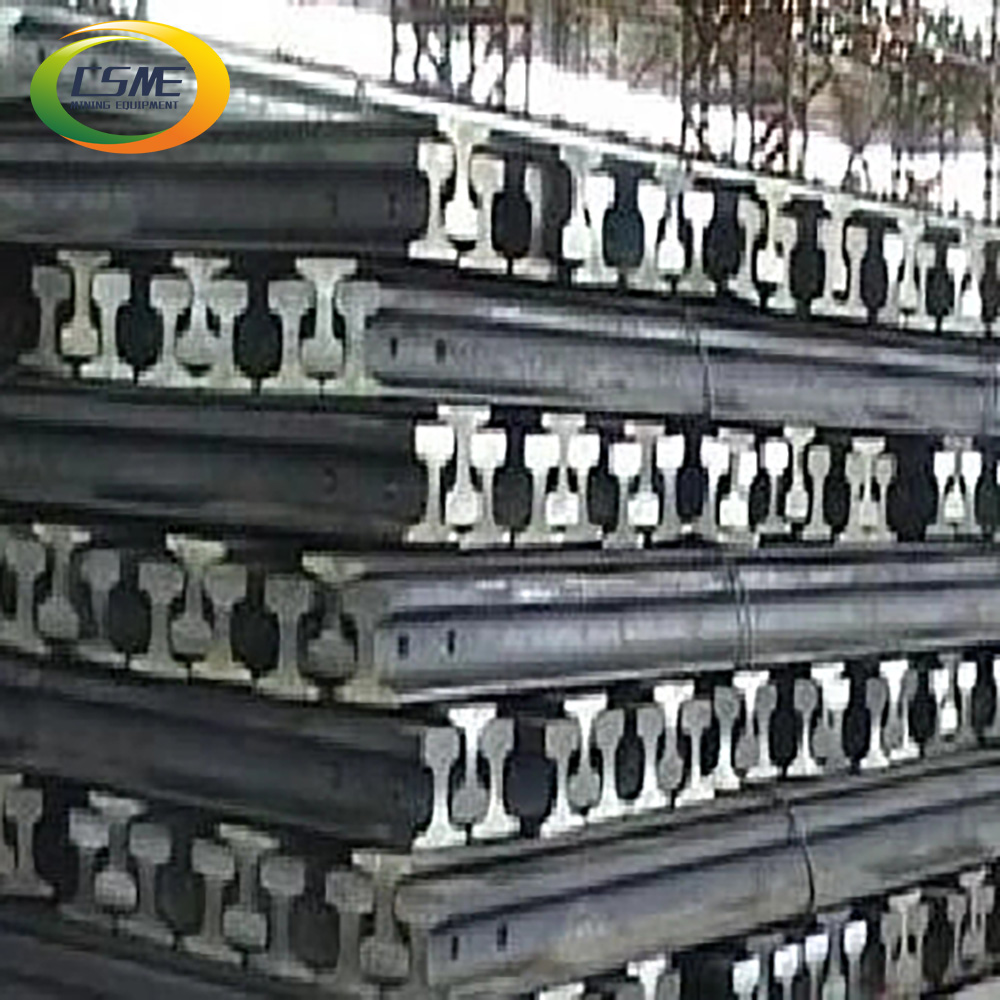

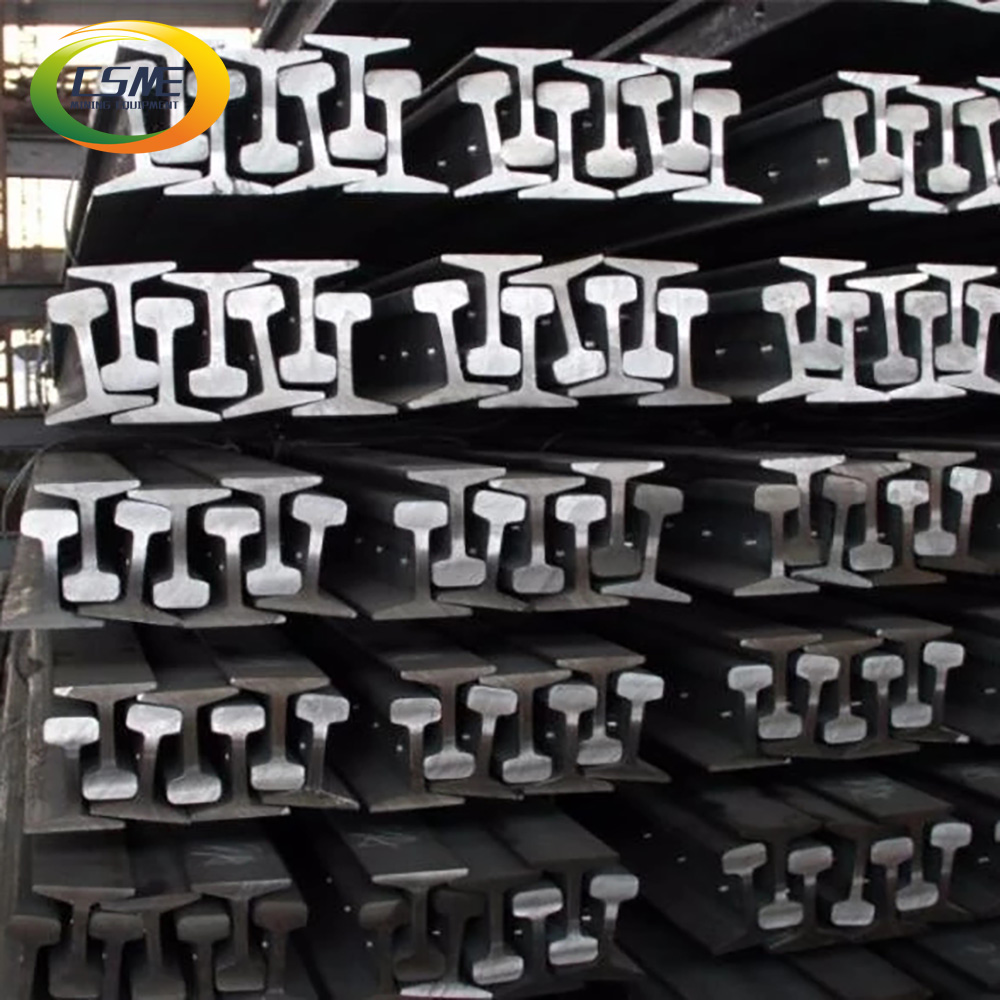

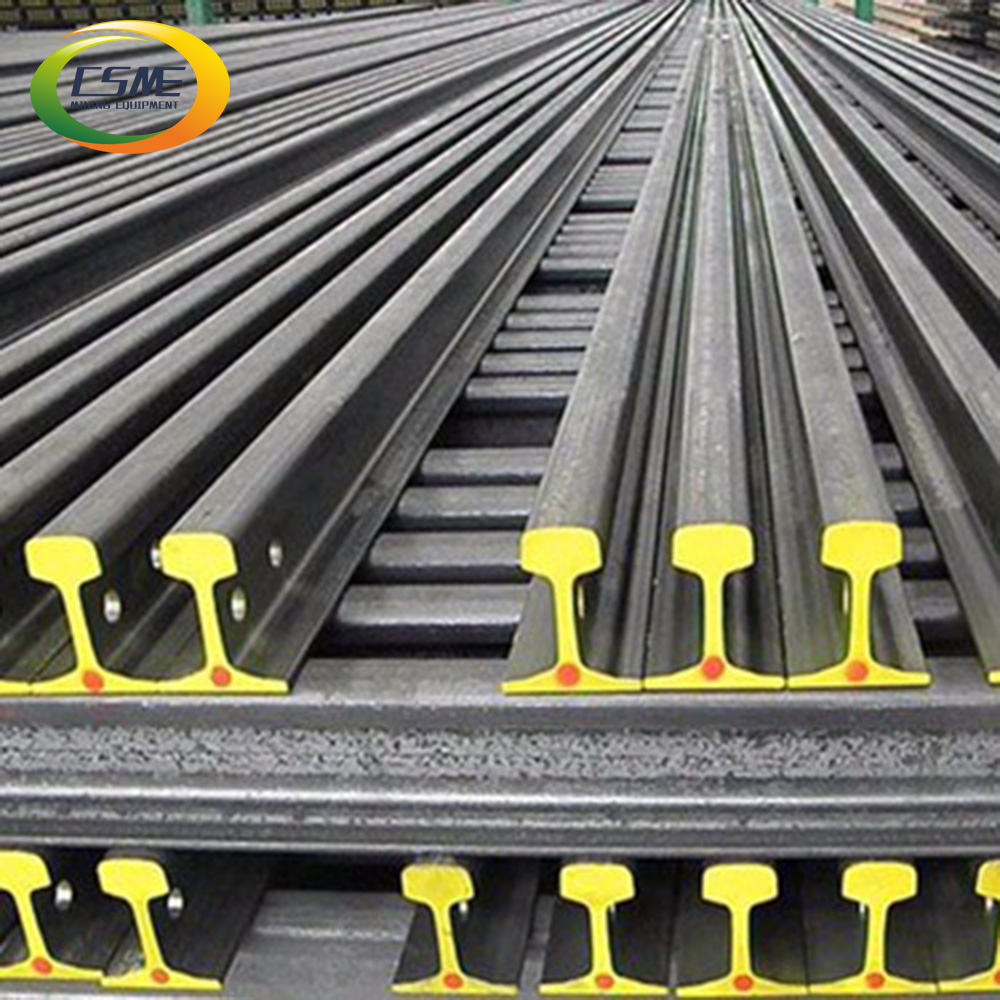

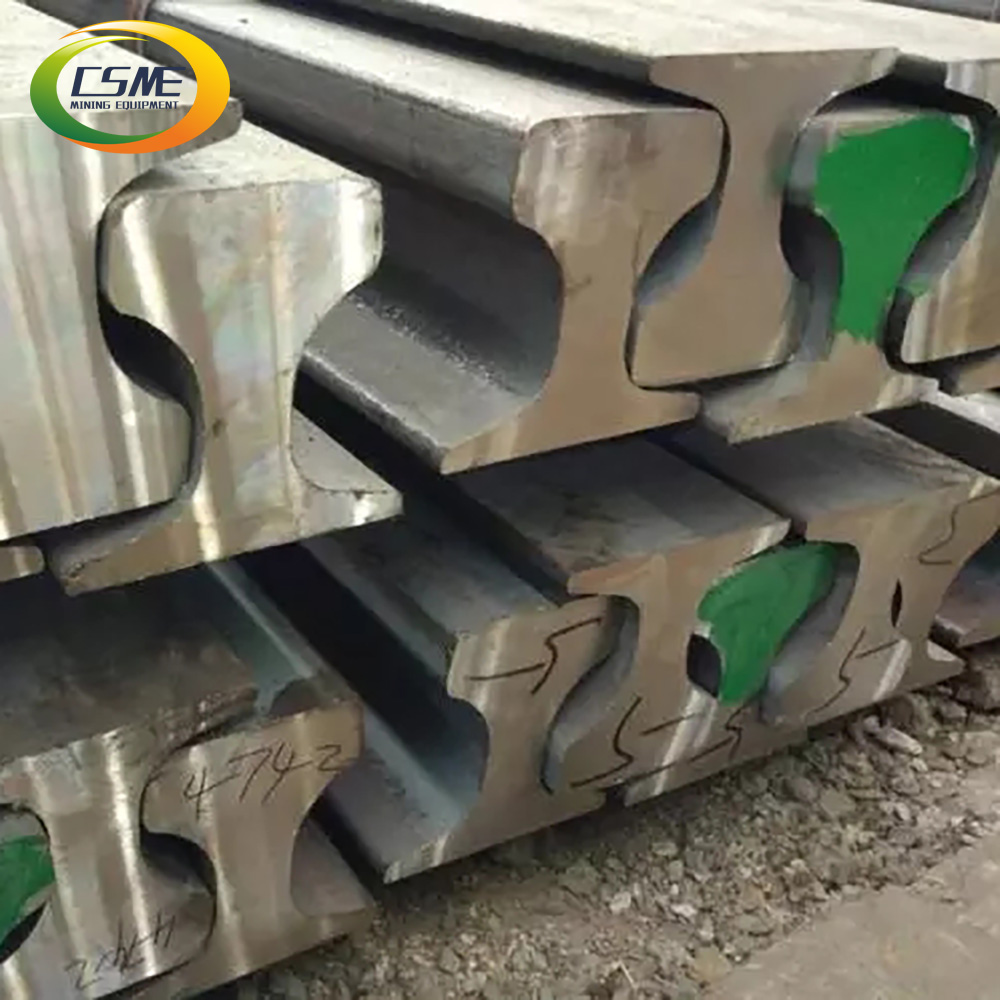

QU100 U71Mn Crane Rail Strong Heavy Duty Mining Track for Industrial Hoisting and Gantry Crane Systems

Product Description

Product Description
Steel rails: the core structural components of railway tracks

Serving three critical functions:

  • Guiding train wheels along the intended path.
  • Withstanding intense dynamic loads from locomotives and transferring these forces to the sleepers.
  • Providing a continuous, low-resistance rolling surface to ensure smooth and efficient wheel movement.

Additionally, in electrified railways or automatic block signaling systems, rails also act as electrical track circuits, enabling train detection and signal control. This dual role underscores their importance in both mechanical performance and advanced railway signaling infrastructure.

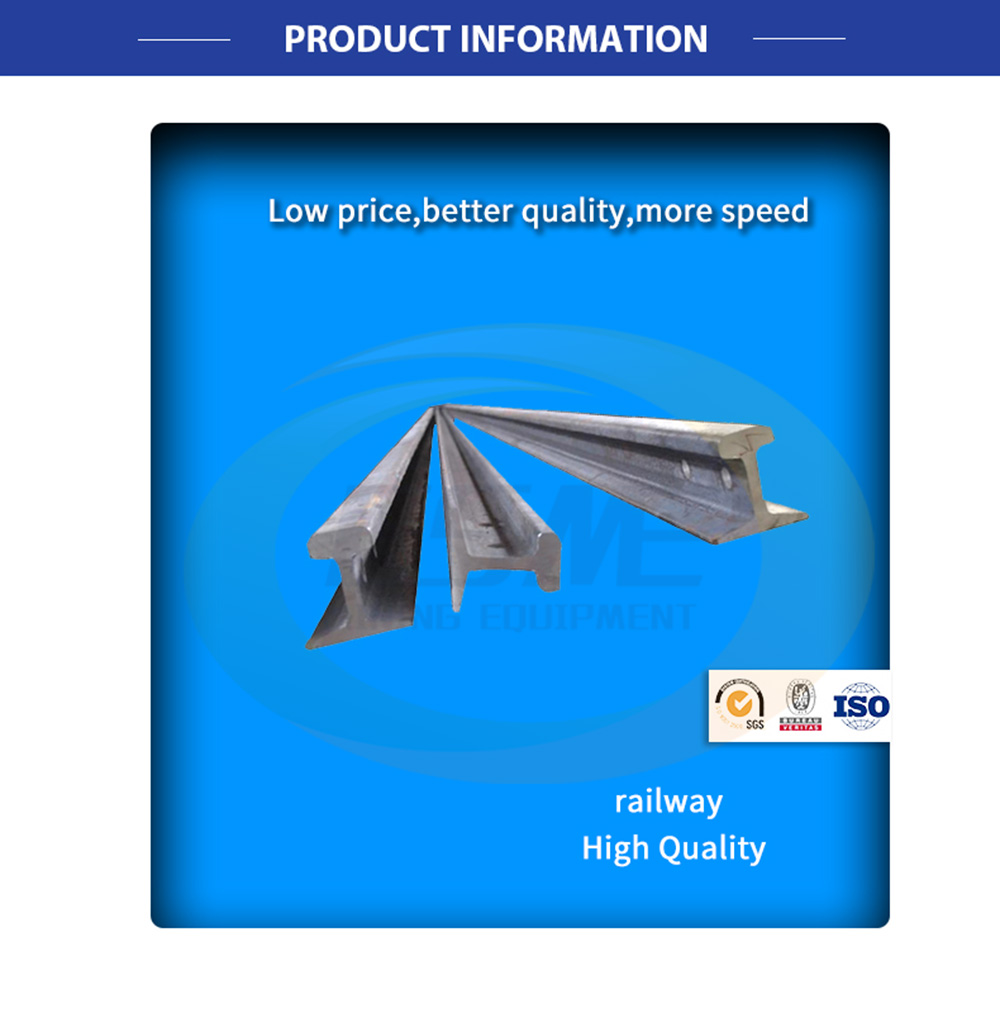

Steel rail structure product view 1

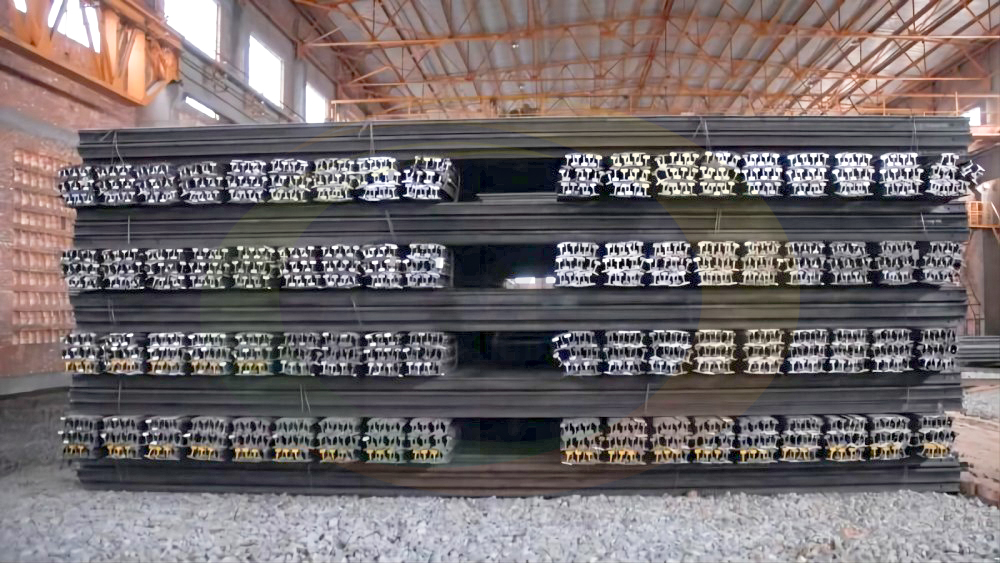

Steel rail structure product view 2

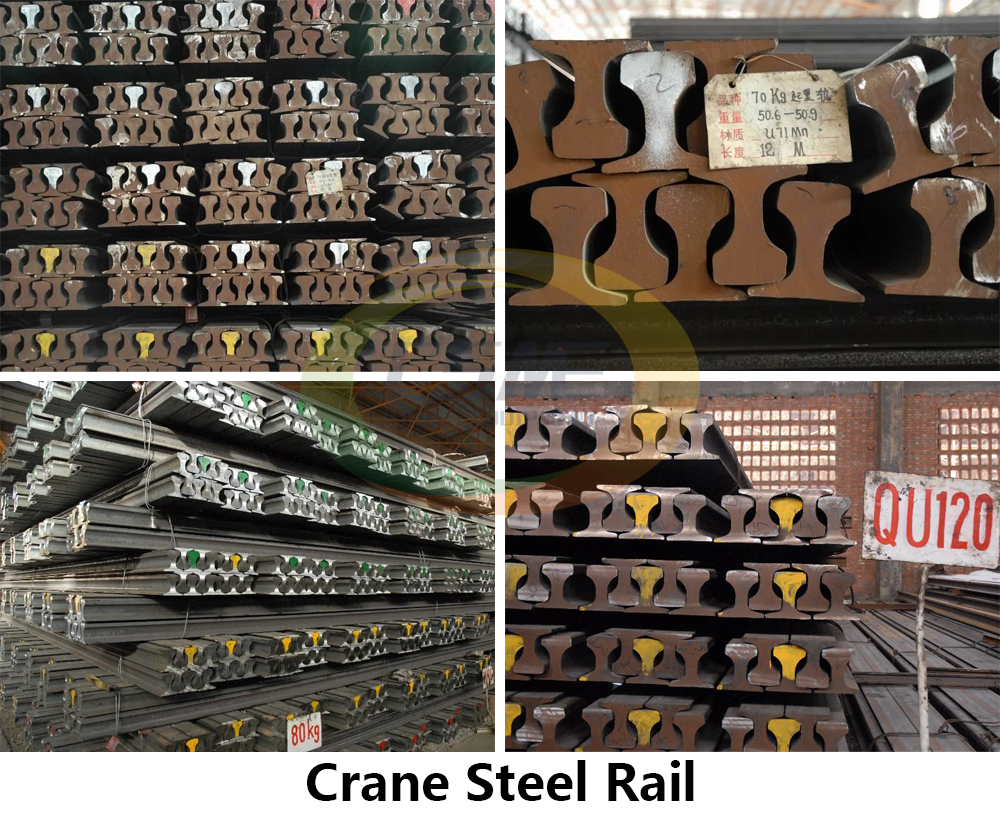

Steel rail structure product view 3

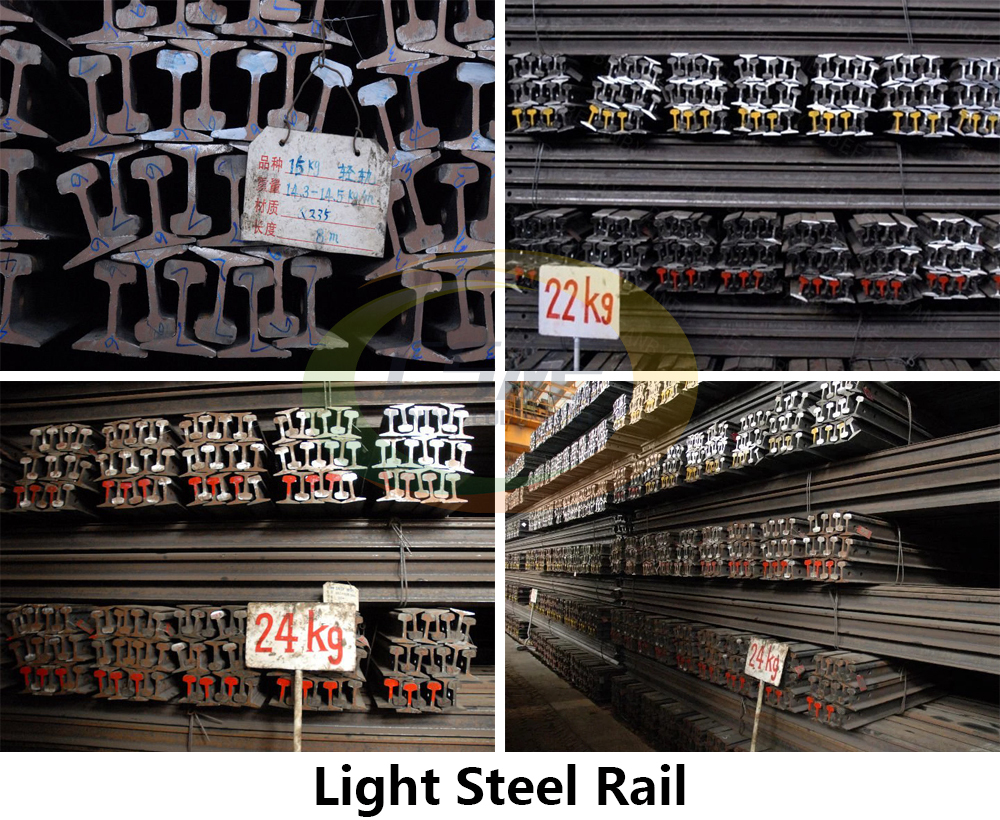

Steel rail structure product view 4

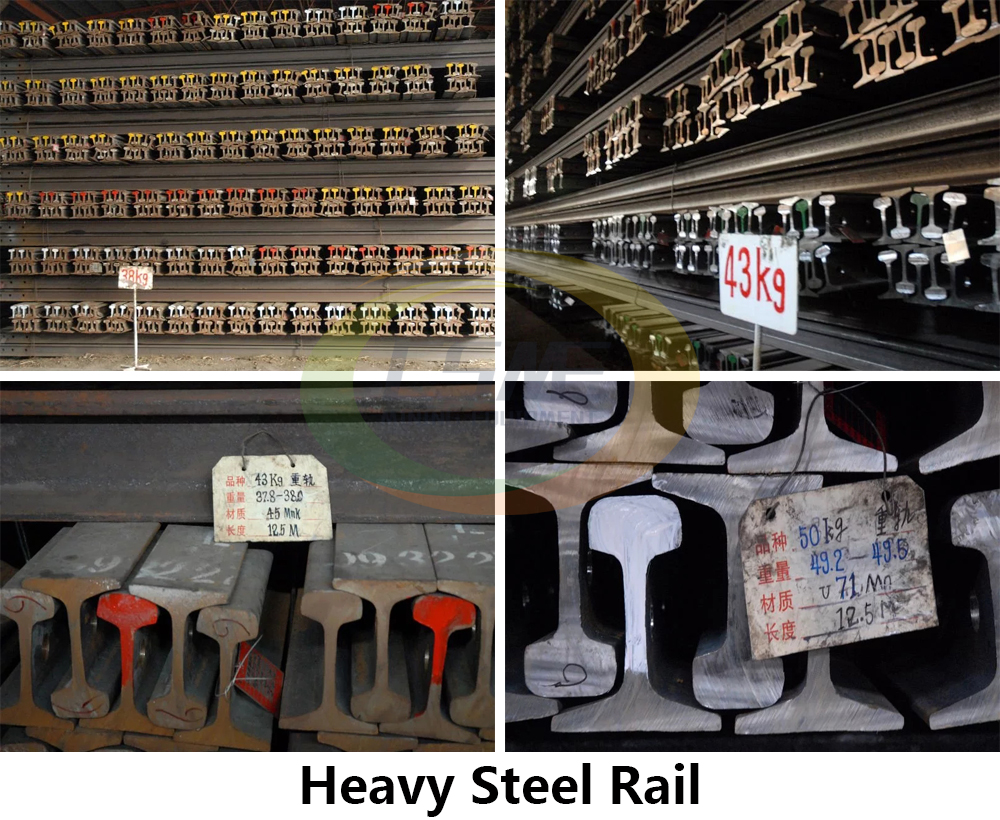

Steel rail structure product view 5

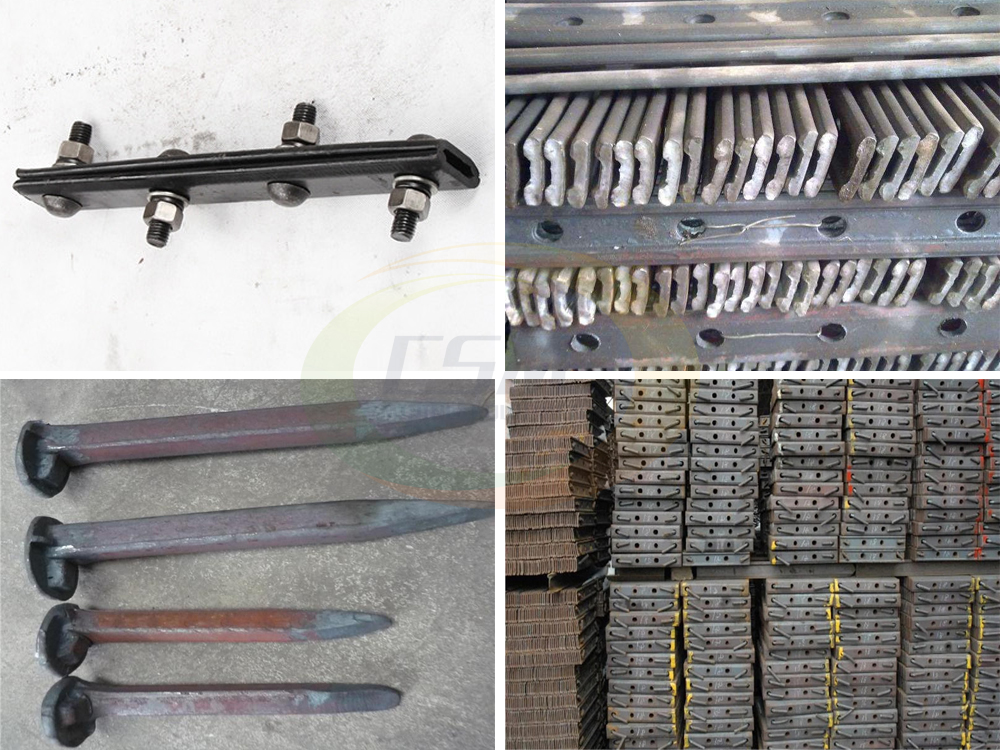

Steel rail structure product view 6

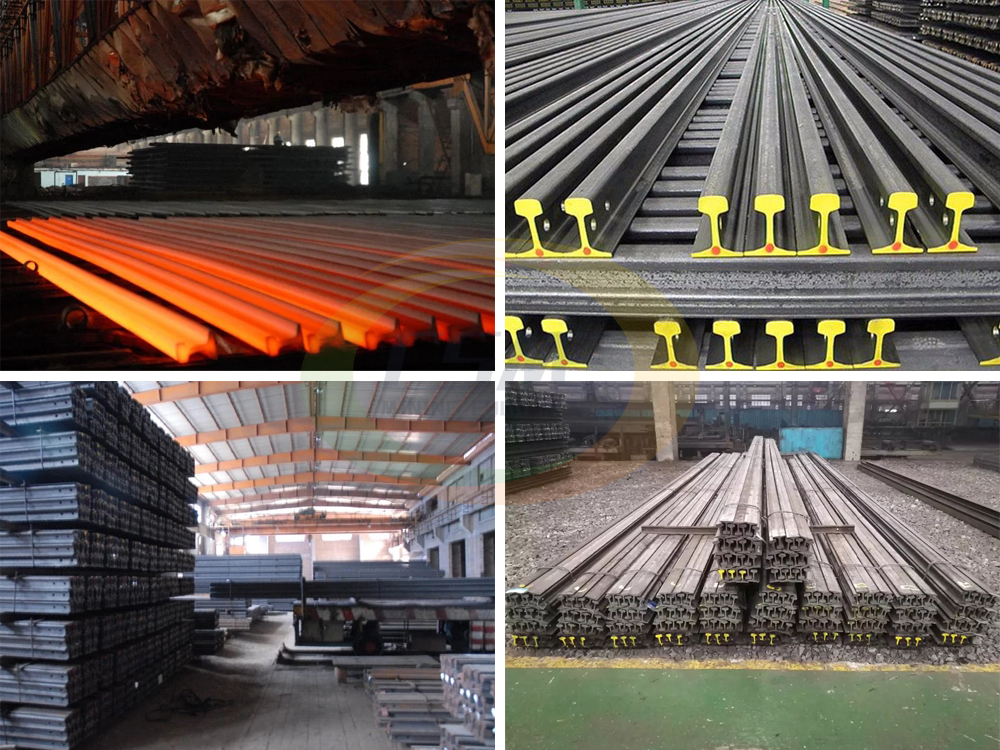

Steel rail structure product view 7
Specification
Type Specification (mm) Weight (kg/m) Information
Height Bottom Width Head Width Web Thickness
QU70 120 120 70 28 52.8 Crane steel rail
Material: U71Mn
QU80 130 130 80 32 63.69
QU100 150 150 100 38 88.96
QU120 170 170 120 44 118.1

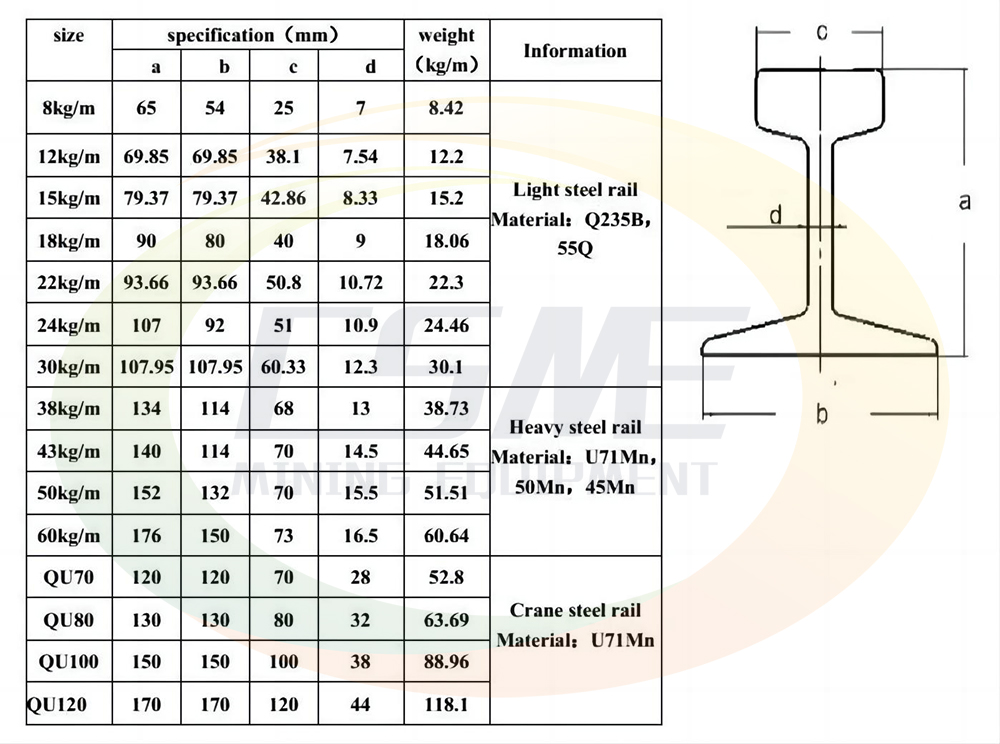

Steel rail technical specification blueprint drawing
Packing & Delivery

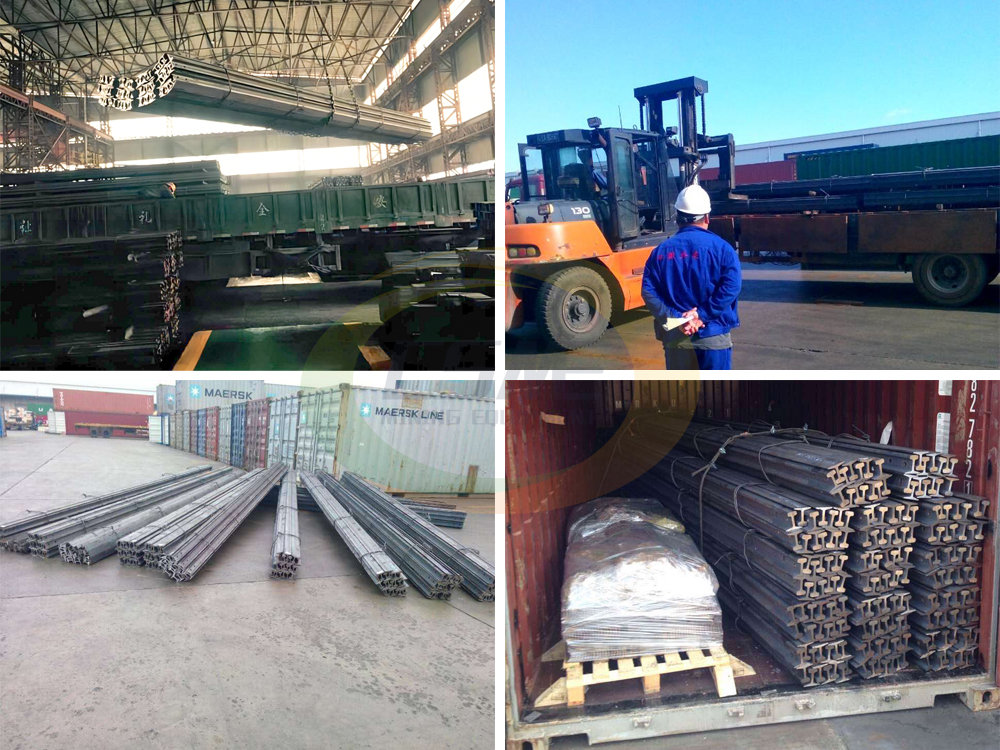

Steel rail packing view 1

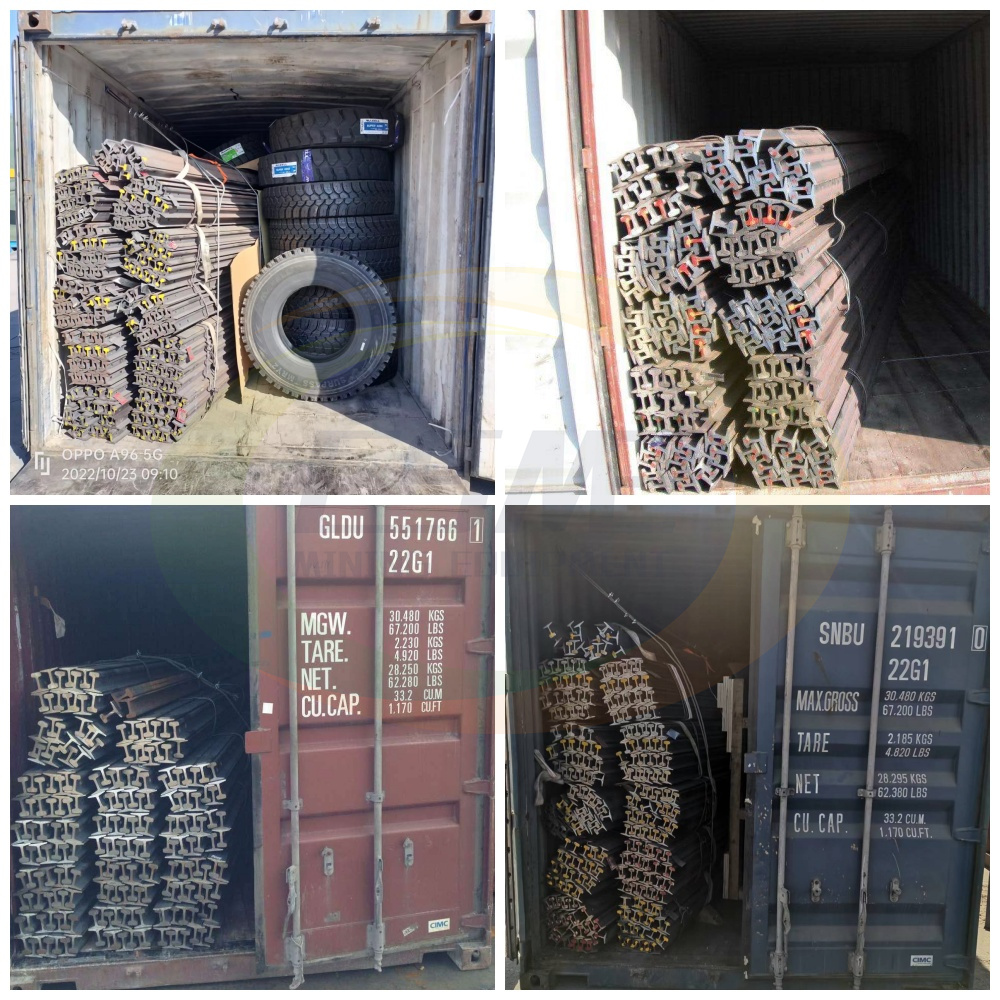

Steel rail delivery transport 2
Real Partnerships

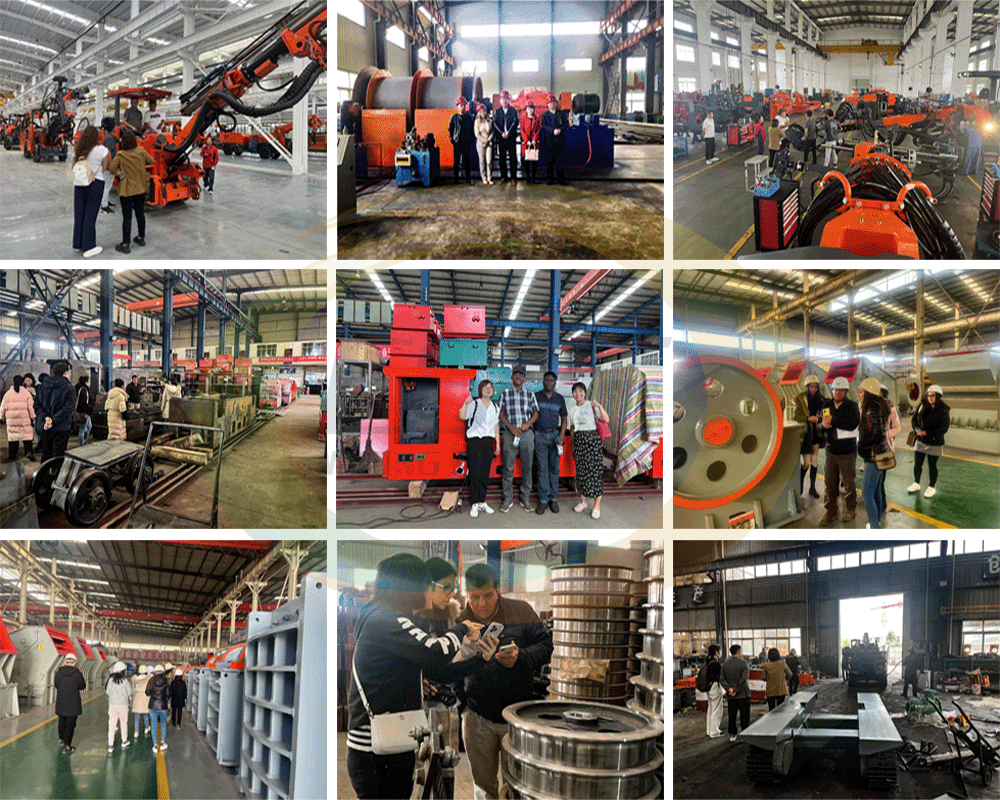

Cooperation partnership logo 1
Cooperation partnership logo 2

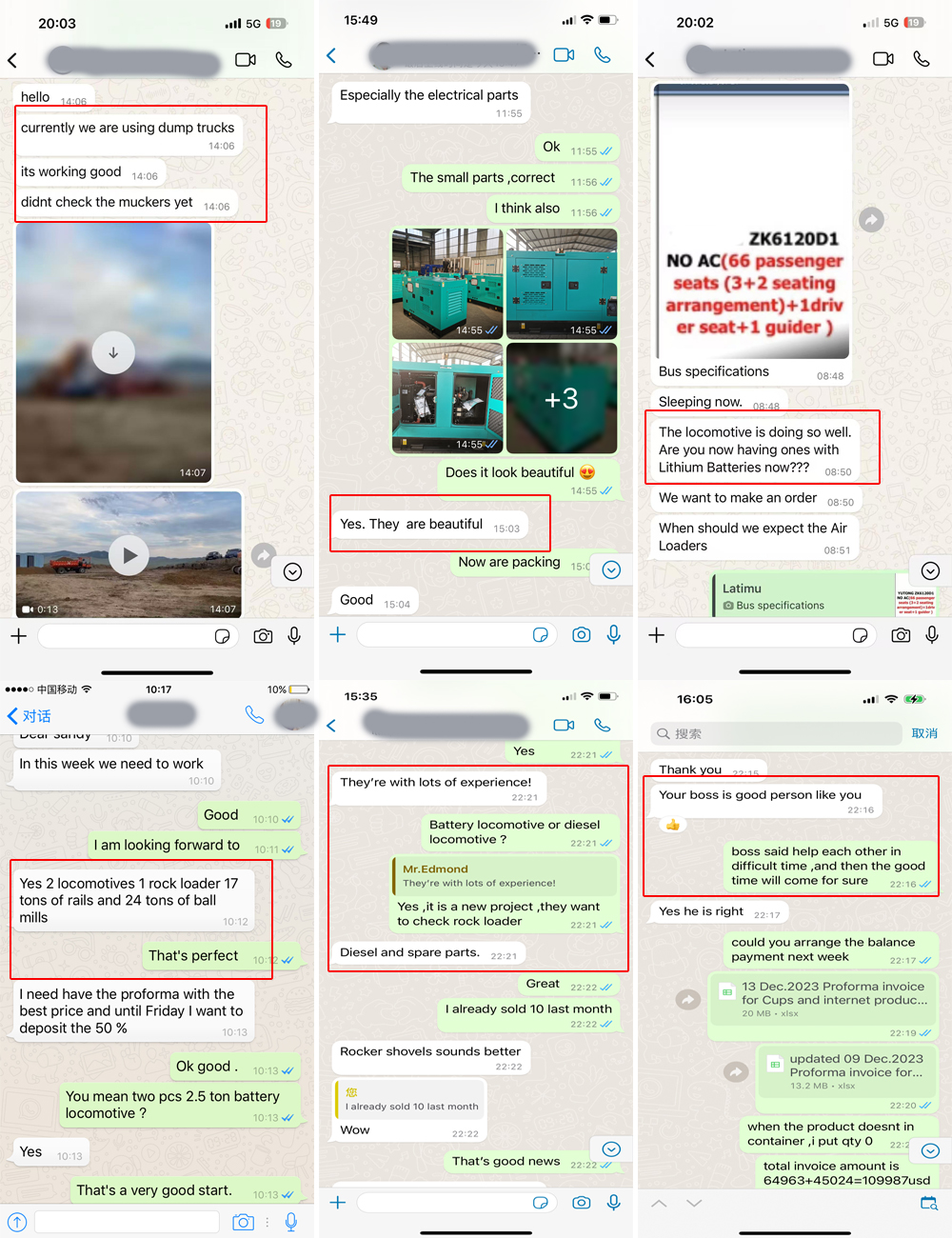

Partnership onsite cooperation
Exhibition & Certification
Quality certificate verification documentation
Exhibition event profile
Company Profile

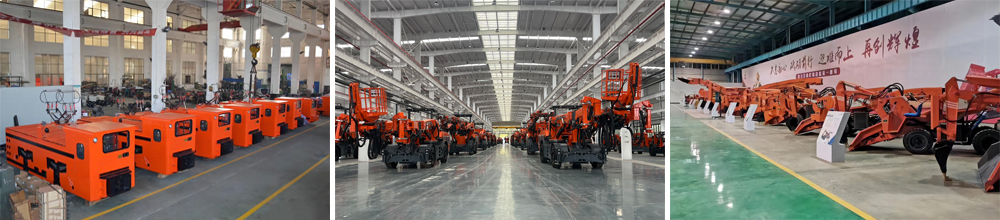

Production facility and operations overview

We are a professional and credible mining equipment supplier. We have more than 30 production plants with long-term cooperation and quality certification, which can not only reduce the resourcing cost, but also can ensure good quality and sufficient after-sale service.

We are specialized in helping our client to find the best suitable products, including mining hoist & winch, mining locomotive, mining wagon, rock loader, mucking loader, rock drill, light steel rail and ect.

We have a strong international trading team, with an excellent quality control team and a responsible after-sale service team. We will continue to explore and exploit bravely against the torrent of difficulties, and have the confidence to fix problem for our clients and provide solution for them in mining industry.

If you have any requirements for mining equipment, kindly please feel free to inquire, we will be very pleased to presents all the details for you to check.

FAQ
What types of mining equipment do you specialize in?
We specialize in helping clients locate and acquire the most suitable mining equipment, including mining hoists & winches, mining locomotives, mining wagons, rock loaders, mucking loaders, rock drills, and light/heavy steel rails.
How is product quality guaranteed?
We ensure high quality through rigorous standards: we always provide a pre-production sample before starting mass production, and we perform a final inspection on all items prior to shipment.
What products are available for purchase?
You can purchase a wide variety of equipment from us, such as Mining Locomotives, Mining Hoists/Winches, Mucking Loaders, Rock Loaders, and Mining Wagons, alongside standard steel rail supplies.
Why should we choose your services over other suppliers?
We serve as a dedicated, one-stop supplier focusing on mining equipment for more than 10 years. Partnering with over 30 certified production plants, we offer optimized resourcing costs, reliable quality control, and a proven track record across more than 20 countries.
What delivery terms and payment options are supported?
We accept delivery terms including FOB, CIF, EXW, and FCA. Supported payment currencies include USD, EUR, HKD, and CNY, through T/T, L/C, Western Union, or Cash payments.
What structural functions do steel rails perform?
Steel rails serve to guide train wheels, withstand dynamic loads from locomotives to transfer them to sleepers, and provide a low-resistance rolling surface. They also act as signaling track circuits in electrified systems.
