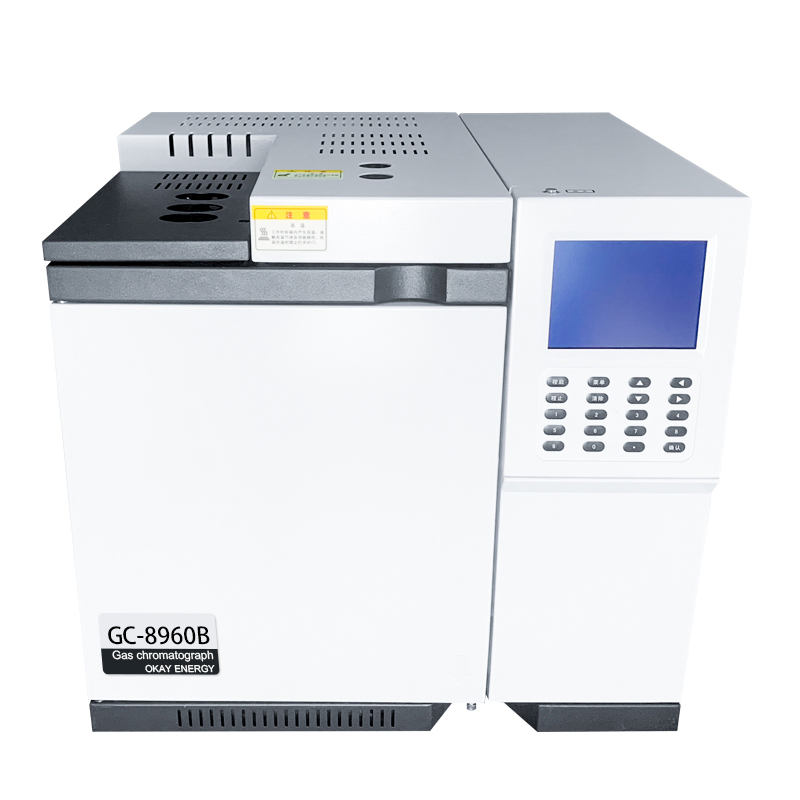

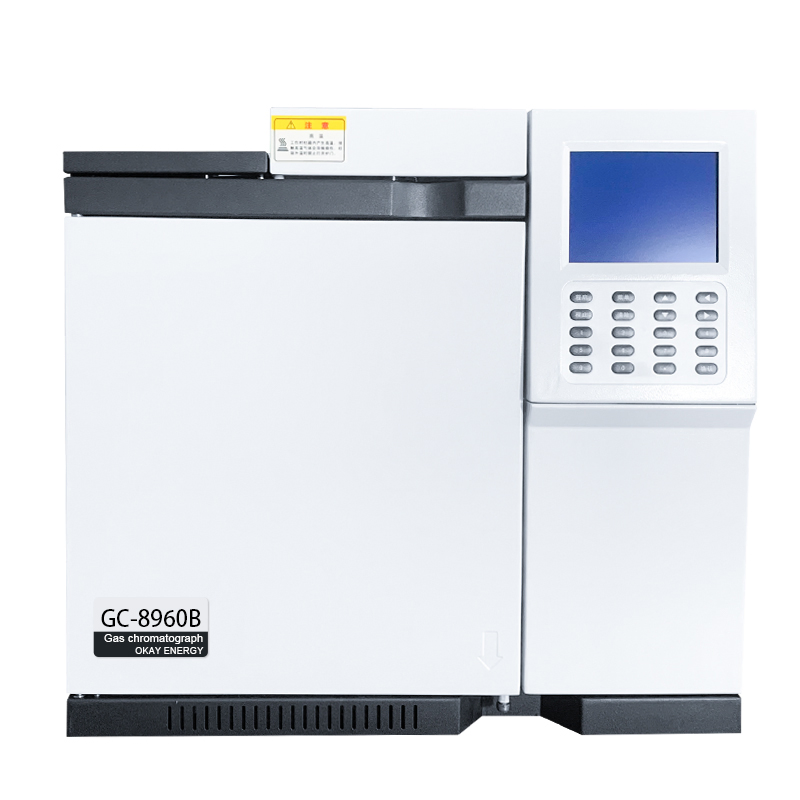

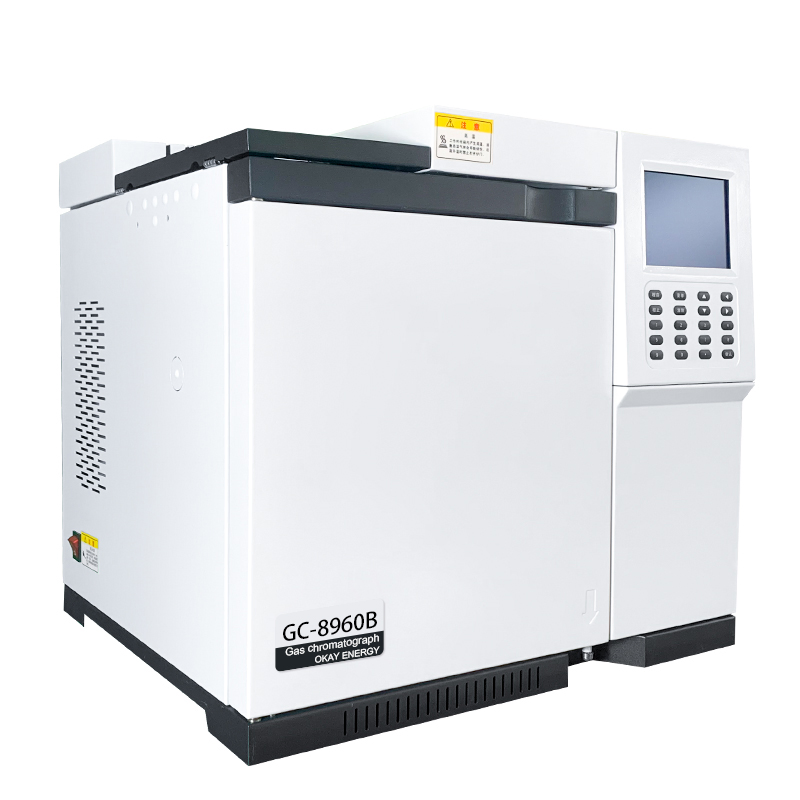

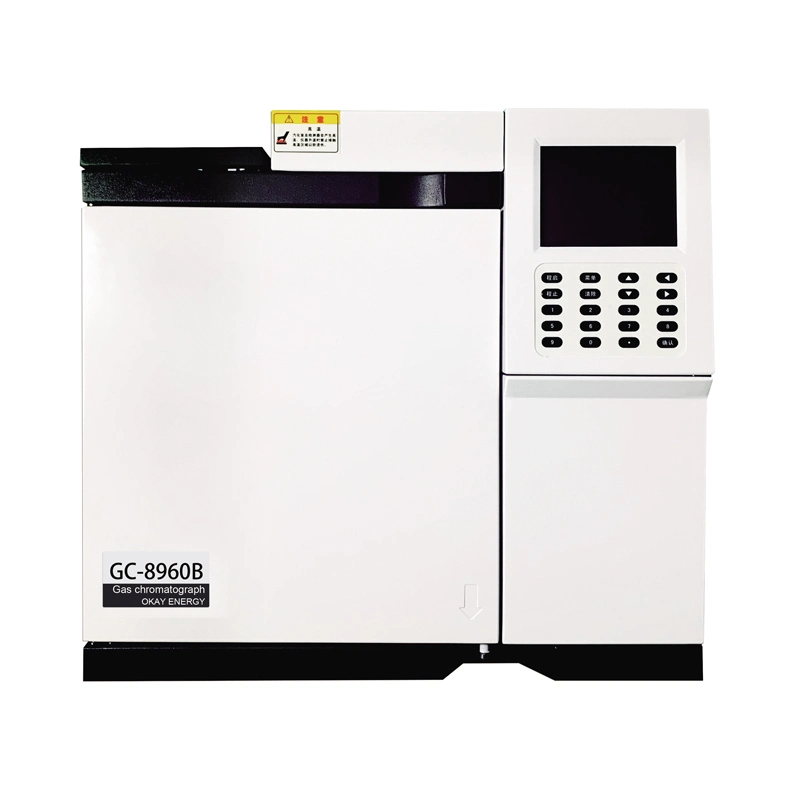

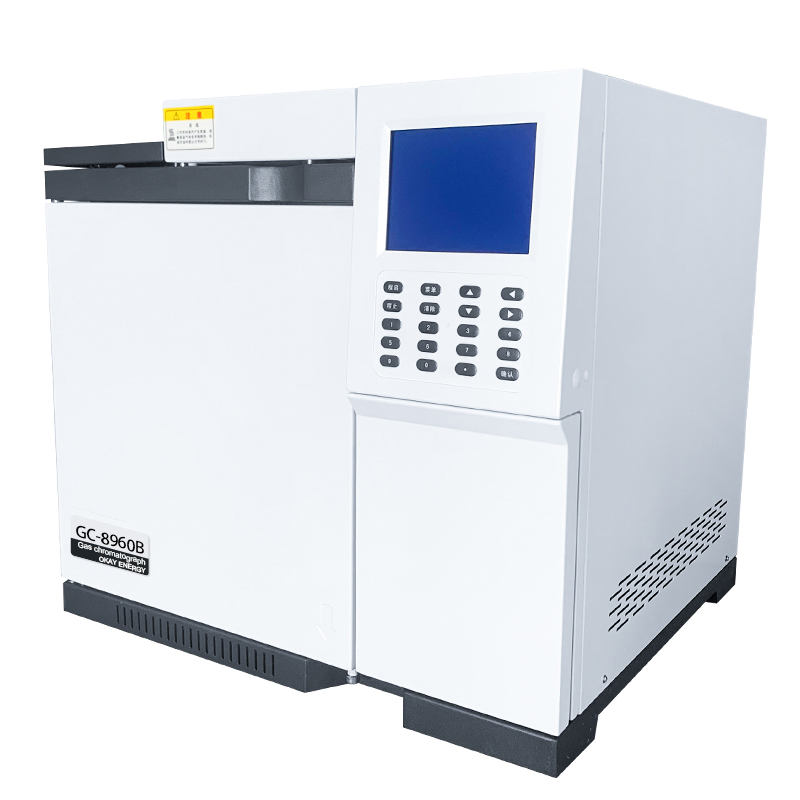

Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
1 / 5
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)

Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)

Customization: Available
After-sales Service: Lifelong Technology Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info
Model NO.
OKGC-8960B
Appliance
The Analysis of Environmental Samples
Ray Type
X-Ray Spectrometer
Gaspath System
Single
Detector
FID
Energy Resolution
≤8%
Certification
CE
Mobile Phase
Liquid
Chromatography Type
Gas Chromatography
Chromatographic Column Type
Conventional Analytical Column
Chromatographic Column Length
10~30cm
Chromatographic Column Diameter
1~2mm
Transport Package
Standard Export Carton
Specification
550*535*485mm
HS Code
90273000
Production Capacity
1000sets/Month
Product Description
Bench Top Lab Analyzer Machine Portable Gas Chromatograph With Flame Ionization Detector (FID)

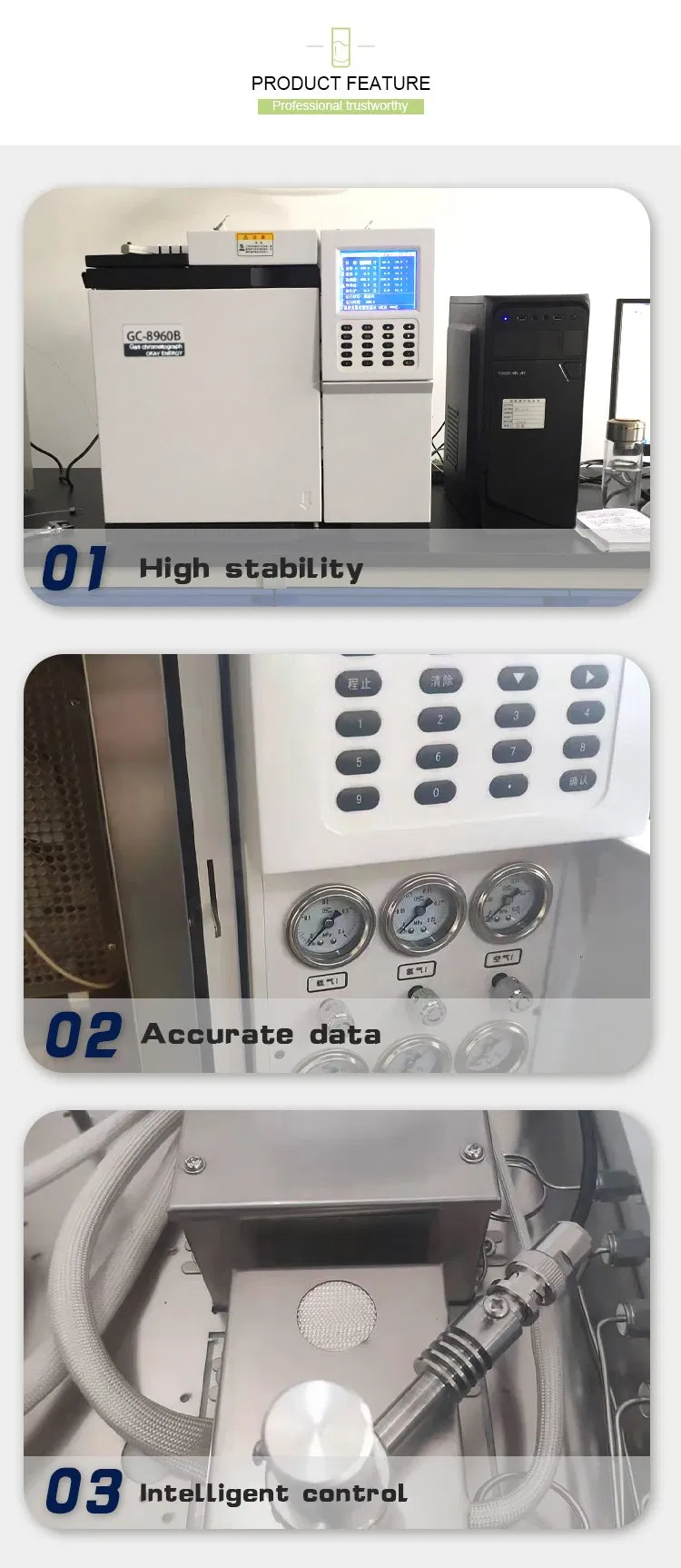

Product Features

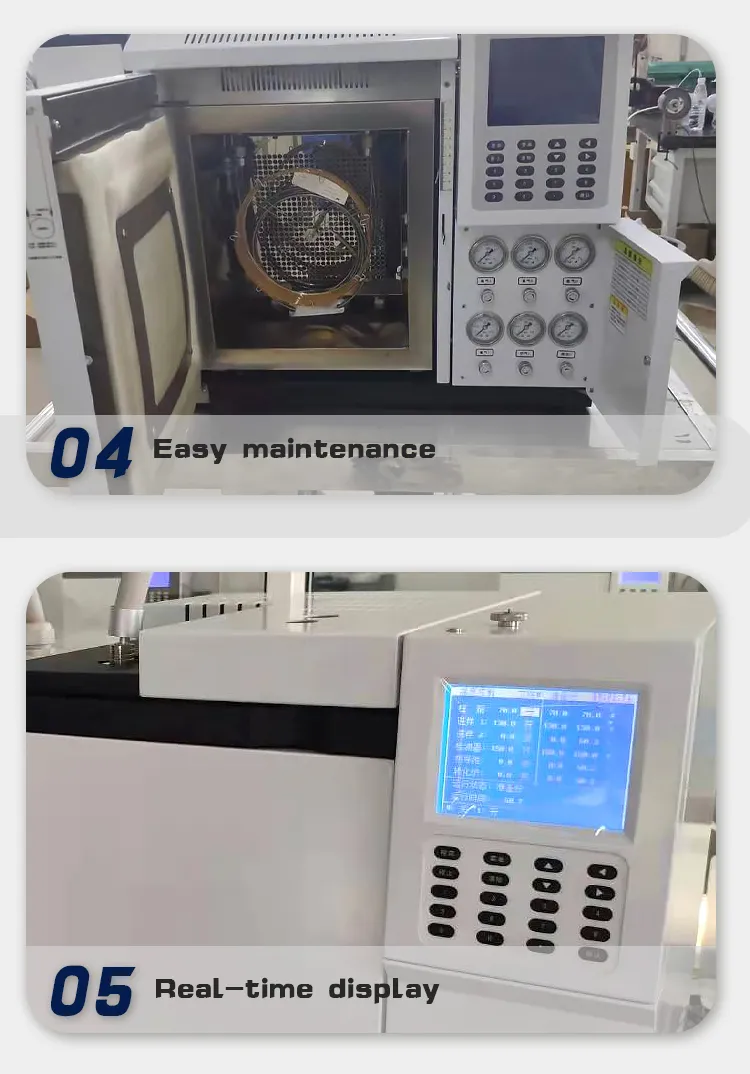

  • Large-screen LCD display, real-time display of various temperature and operating conditions, clear and intuitive content, and truly realize the man-machine dialogue.
  • Power-on self-test, wide-range self-diagnosis function, can accurately determine the fault location and alarm.
  • Six-channel independent temperature control (the vaporization chamber and capillary vaporization chamber can independently control the temperature), eight-step temperature program function.
  • Over-temperature protection function: if any channel exceeds the set temperature, the instrument will automatically power off and alarm.
  • The unique vertical heating device makes the sample vaporization more reliable, minimizes the heat radiation generated by the vaporization chamber, and ensures that the temperature deviation in the oven is extremely small.
  • The door opening system after the intelligent fuzzy control automatically tracks the temperature and dynamically adjusts the angle of the air door to truly achieve near room temperature operation.
  • Equipped with packed column stigma injection, glass lining injection, capillary split/splitless injection device with diaphragm cleaning function, and a gas sampler can be installed.
  • High-precision dual-stable gas circuit, three kinds of detectors can be installed at the same time.
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Technical Parameter
Model OKGC-8960B
Relative Humidity < 85%
Power 2000W
Measuring Range customizable
Measuring Object customizable
Net Weight 40kg
Size 550*535*485mm
Oven Size 240*250*155mm
Column Installation Interval Size 152.4mm(6 inch standard interface)
Oven Temperature Control Room temperature plus 8ºC~400ºC, (optionally set in 1ºC increments)
Lift Rate 0.1ºC~50ºC (increment of 0.1)
Working Temperature 5ºC~35ºC
AC Voltage 220±10%
Sample System -
Maximum Temperature 400ºC
Number of Inlets Can be equipped with up to 3
Injection Mode Filled injection, split capillary injection, split/splitless capillary injection
Detection System -
1. Hydrogen Flame Ion Detector (FID) -
Minimum Detection Limit ≤5 x 10-12g/s (n-hexadecane)
Dynamic Range ≥10
Baseline Noise ≤2 x 10-13 A
Baseline Drift ≤5 x 10-13 A/30 min (after the instrument is stable for 1 hour)
Linear Dynamic Range ≥107
Insulation Strength ≥1500 volts, 220V leakage current ≤ 1mA
2. Thermal Conductivity Detector (TCD) -
Sensitivity S≥8000mv.ml/mg (n-hexadecane)
Baseline Noise ≤20uv
Baseline Drift ≤100uv/30min (after the instrument is stable for 1 hour)
Linear Dynamic Range ≥104
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Application & Solutions
  1. Gas analysis of pressure transformer oil (GB/T 17623-1998, DL/T 722-2000, DL/T 703-1999)
  2. Air quality (TVOC, benzene, total hydrocarbon and non-methane total hydrocarbon) analysis (GB/T 50325-2001, GB/T 18883-2002, gb16927-1996); Workshop exhaust gas, flue gas analysis, and VOC, benzene and non-methane total hydrocarbon in flue gas 24 hours uninterrupted online analysis;
  3. Natural gas, refinery gas, pyrolysis gas, artificial gas and other industrial gas gas analysis (simple single valve type, wide spectrum process double valve four-column economy type, wide spectrum process three valve four column practical type, wide spectrum process five valve six column high end type, three valve four column TCD type, four valve five column double TCD type, etc. In accordance with GB/T 13610-2003, UOP539, ASTM1945, ASTM D 1946 and GPA2261; Can be customized according to the user's specific samples);
  4. Safety gas analysis in underground coal mine gas chromatography (available for 24 hours continuous cycle sampling analysis of 32 points);
  5. Water quality analysis (accord with GB/T 5750-2006);
  6. Gas, methane analysis (H2, O2, N2, CH4, CO, CO2 six components, unique single valve sequence conversion);
  7. Sulfur compounds in natural gas (unique single-valve sequence reversal method for detection of H2S, CSO, SO2 and total sulfur);
  8. High purity gas analysis, electronic industrial gas analysis (minimum detectable concentration up to 10ppb);
  9. Benzene and toluene in gasoline (accord with ASTM D3606; SH/T 0713-2002);
  10. Analysis of oxygen-containing compounds in gasoline (accord with ASTM D4815 and SH/T 0633-1998);
  11. Analysis of benzene, toluene and aromatics in gasoline (in accordance with ASTM d5580-1995, SH/ t0693-2000);
  12. SOA analysis of hydrocarbon group composition in gasoline (content detection of saturated hydrocarbon, olefin, aromatic hydrocarbon and benzene, using a special olefin adsorption trap; In line with SH/T 0741-2004), PONA analysis of single hydrocarbon in gasoline and CPNA analysis of the composition of carbon family;
  13. Simulated distillation gas chromatography (accord with SH/T 0558, ASTM D5307, D3710, D6352, D2887);
  14. Blood ethanol analysis (in line with the ministry of public security standard GA/ t105-1995);
  15. Cigarette sticks VOC (in line with YC/T 207-2006), drug residue analysis, ethylene oxide in medical devices (in line with GB/T 16886.7-2001), solvent residue detection in packaging materials;
  16. Gas chromatography for room temperature gases (CO2, CH4 and N2O, 0.1ppm-100%);
  17. Catalytic evaluation, Fischer-Tropsch synthesis, high pressure and high temperature on-line analytical system (system chromatography based on requirements);
  18. Process gas chromatography (industrial chromatography), sample pretreatment, analysis cabin construction, multiple flow path sample selection. (up to 32 sample options are supported), etc
Bench Top Lab Analyzer Machine Portable Gas Chromatograph with Flame Ionization Detector (FID)
Frequently Asked Questions
What are the primary applications of this Gas Chromatograph?
The system is widely used for environmental sample analysis, transformer oil gas analysis, air and water quality monitoring, natural gas analysis, coal mine safety gas detection, and petrochemical testing.
What type of detectors does the OKGC-8960B support?
It comes equipped with a High-Precision Hydrogen Flame Ionization Detector (FID). Additionally, it can support a Thermal Conductivity Detector (TCD) depending on configuration requirements. Up to three detectors can be installed simultaneously.
What temperature range does the oven operate in?
The oven temperature control ranges from room temperature plus 8ºC up to 400ºC, with an option to adjust in 1ºC increments. It also features an eight-step temperature programming capability.
Does this analyzer feature built-in safety controls?
Yes. It features a power-on self-test, wide-range self-diagnosis functions to identify faults, and an over-temperature protection system that automatically cuts power and triggers an alarm if any channel exceeds limits.
What injection modes are supported by this gas chromatograph?
It supports packed column stigma injection, glass lining injection, and capillary split/splitless injection devices with diaphragm cleaning functions. Gas samplers can also be installed.
Is it suitable for online exhaust gas monitoring?
Yes. It is fully capable of 24-hour uninterrupted online analysis of workshop exhaust gas, flue gas, and various hydrocarbons such as VOC, benzene, and non-methane total hydrocarbons.
