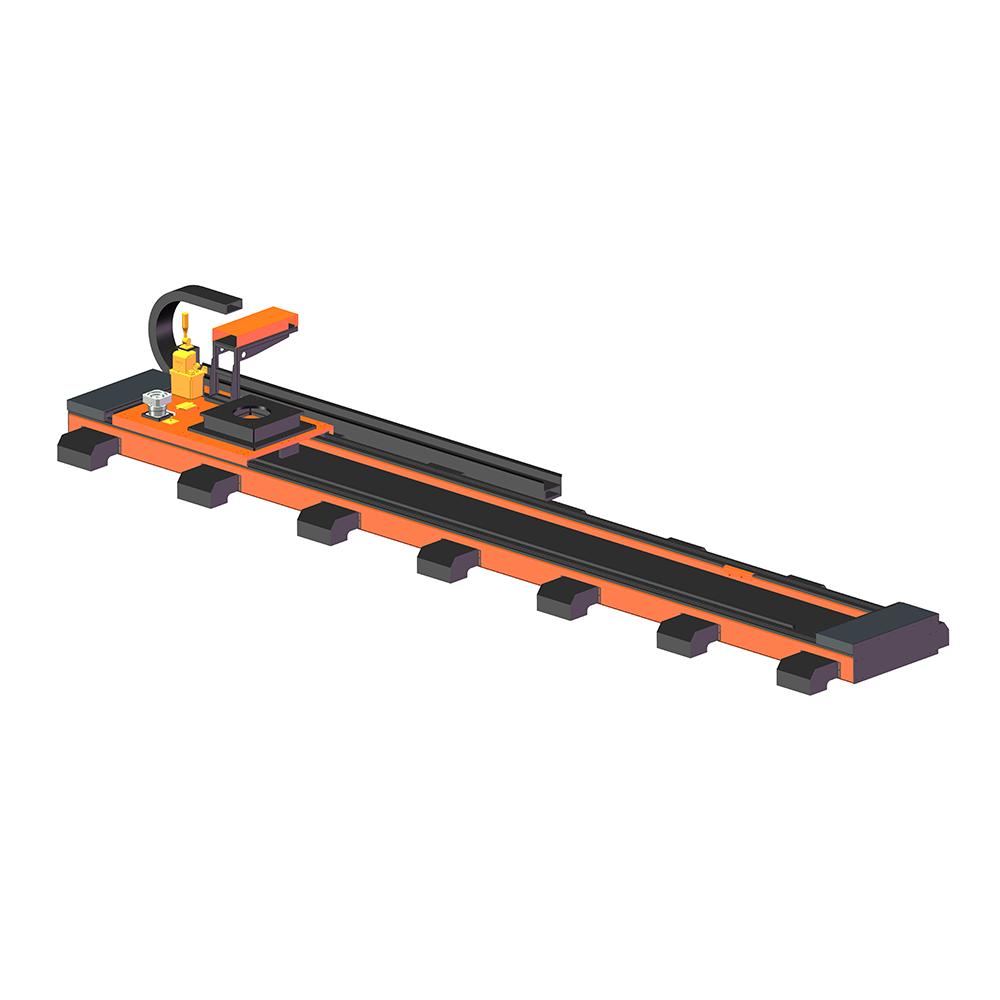

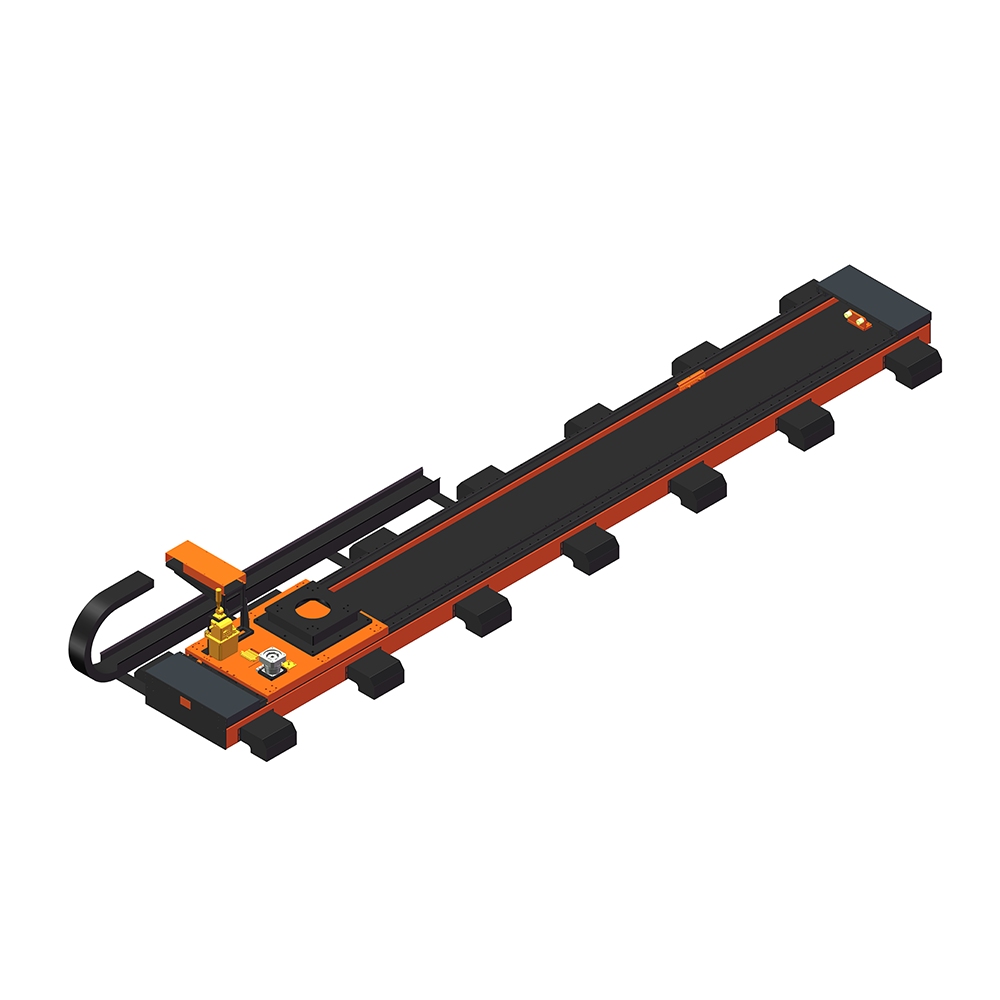

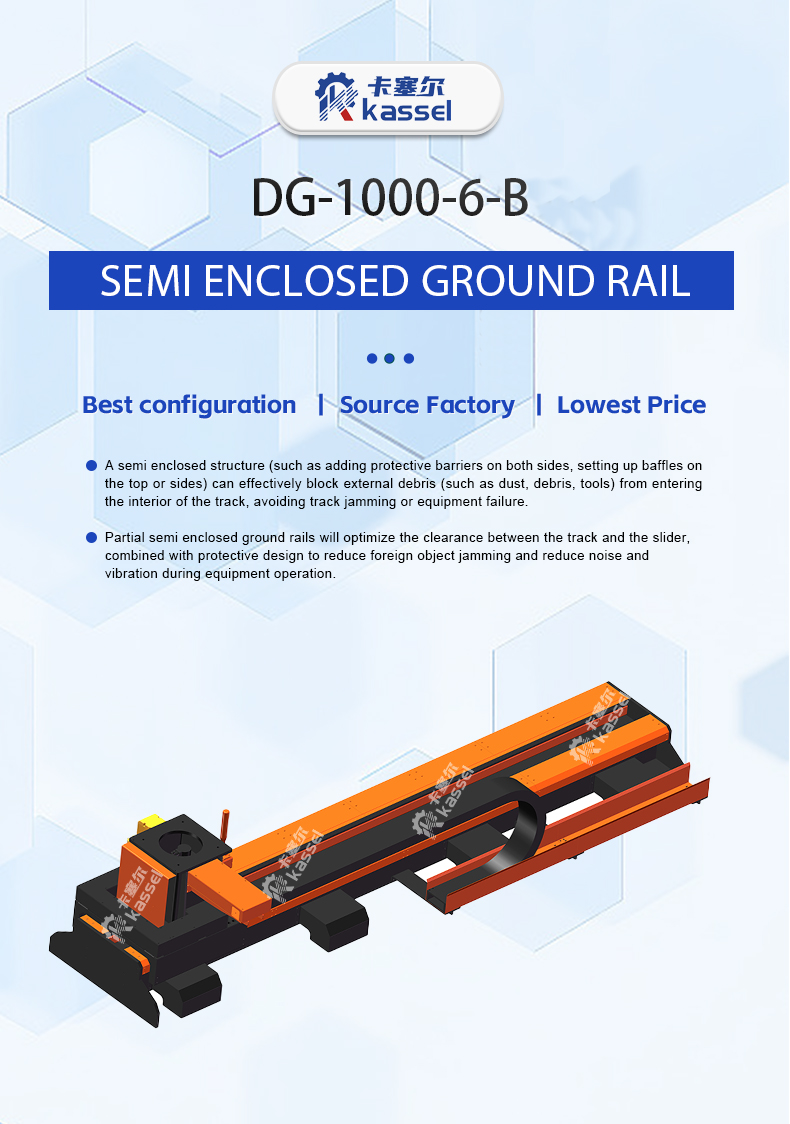

Product Parameters
| Rated load |
500KG |
| Form |
Handling ground rail (standard 500*300 high-precision, durable closed version) |
| Applicable robot |
Robots of any brand with a load capacity of 20kg or less and within a 2-meter radius |
| Customer's rated power and torque |
2.0KW / 9.5n.m |
| Reducer model |
Standard configuration with Japan Shimpo 115 series, 3 arcminutes high precision |
| Total reduction ratio |
10:1 |
| Rated speed |
800mm/sec |
| Maximum speed |
1200mm/sec (Special requirements can be customized) |
| Maximum torque |
1900N.M |
| Electrical box pallet |
Optional configuration |
| Repeat positioning accuracy |
±0.02mm (Note: If positioning accuracy [trajectory accuracy] is required, it needs to be proposed separately) |
| Standard linear guideway |
Standard configuration: Taiwan Airtac (optional: Shangyin / PMI / THK), Model 30 * 6sets |
| Rack / Gear / Wool wheel |
Taiwan Jingte M2 helical gear (36 teeth, gear radius 38.2mm) travels 240mm per full rotation |
| Automatic lubrication system |
Standard configuration: Taiwan Baoteng fully automatic (with time interval control) |
| Drag chain |
Standard configuration with built-in Lange closed type with baffle (external optional) / internal dimensions 44*125 R200 |
| Volumetric distributor / Oil pipe |
Standard configuration with Taiwan Baoteng |
| Maximum length of a single piece |
twelve meters |
| Surface treatment |
Sandblasting/Phosphating/TemperingPowder coating |
| Horizontal axis motor mounting flange |
130 flange / 22mm shaft /clamp type |
| Robot base |
Standard configuration |
| Treading form |
Treadable (with internal keel structure) |
| Enclosure form |
Cast steel |
| Standard color |
(Phosphating / sandblasting / spray coating) Standard configuration: Main body in gray-white RAL7035 / sheet metal in orange RAL2004 |
| Butt extension |
Can be extended by multi-section butt joint within 100 meters |

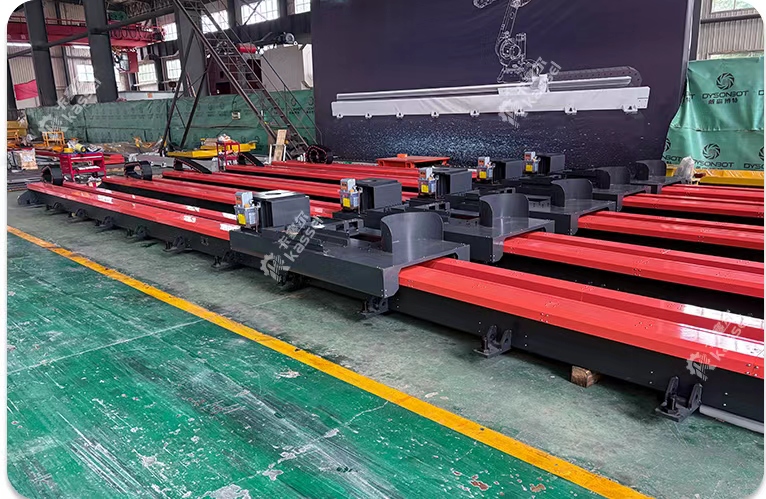

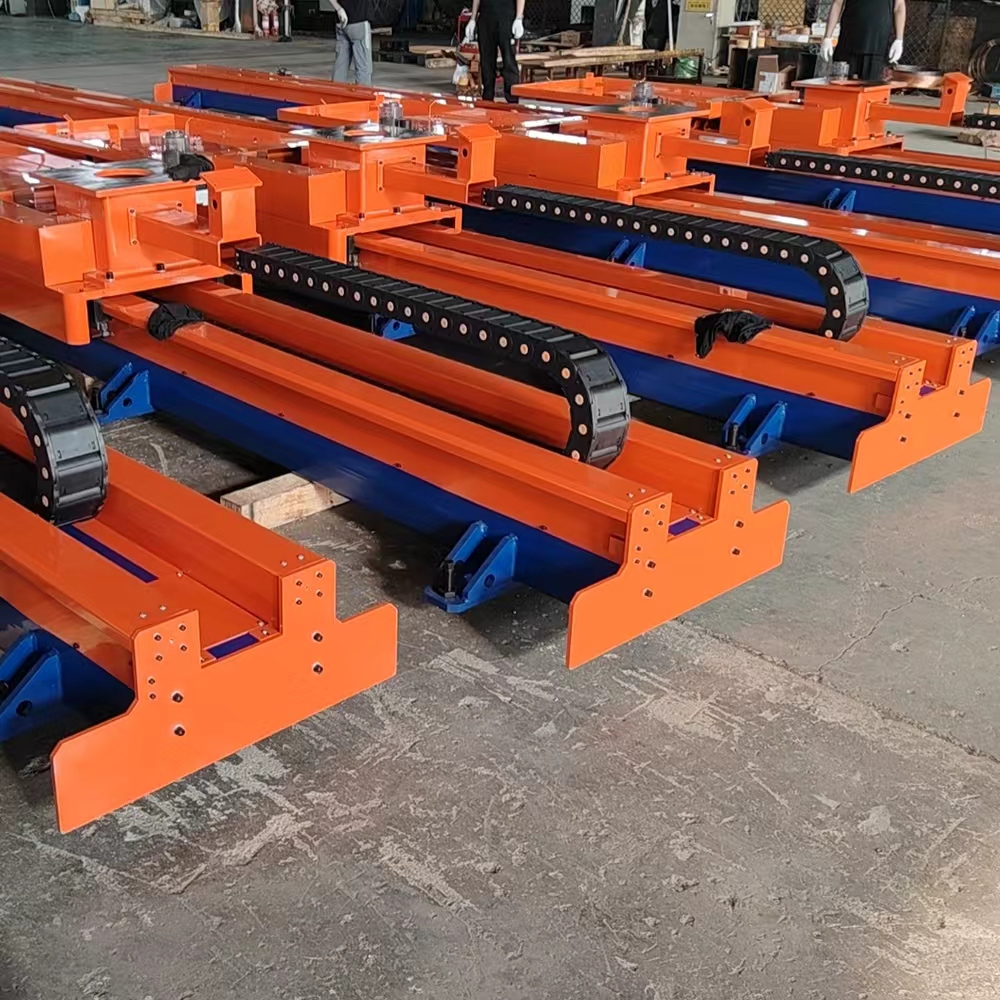

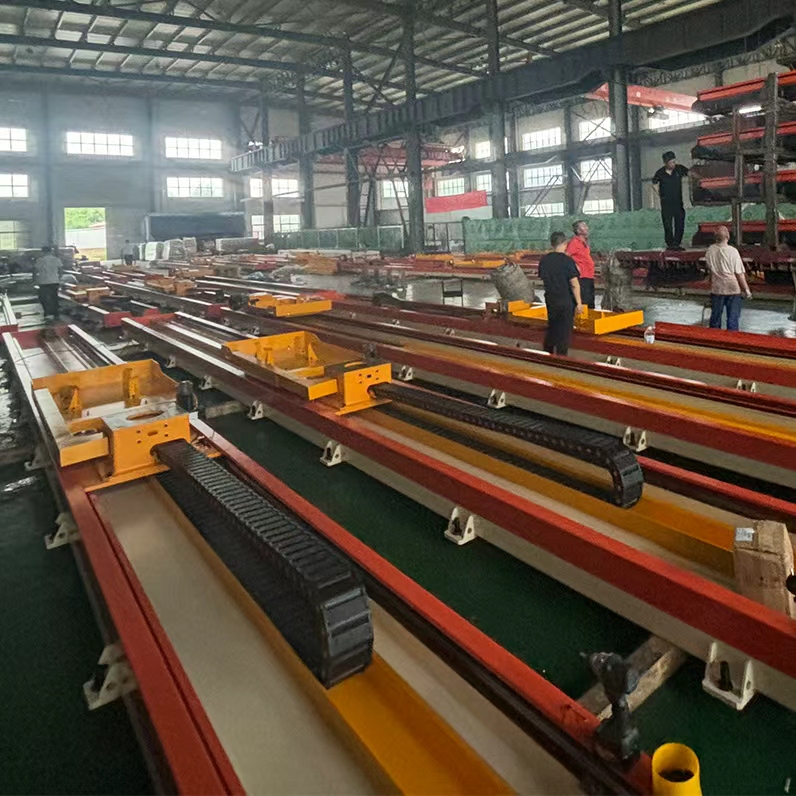

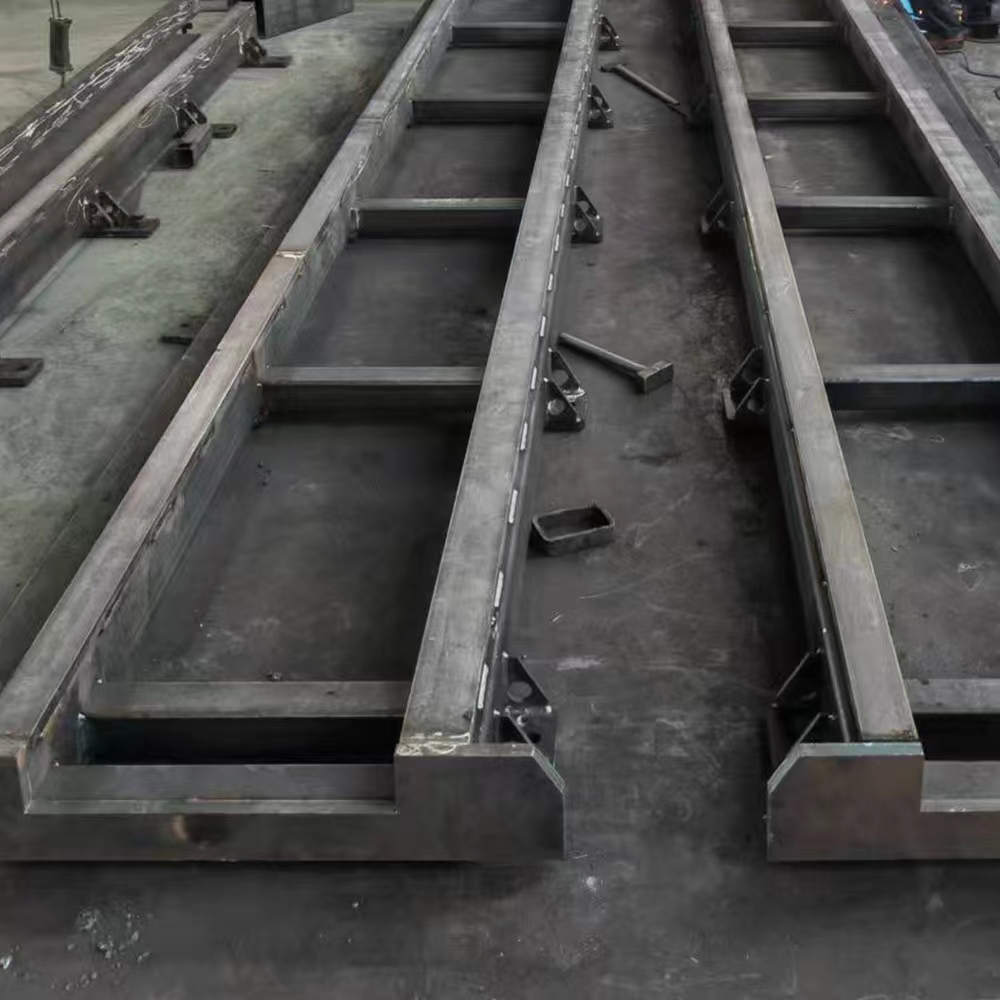

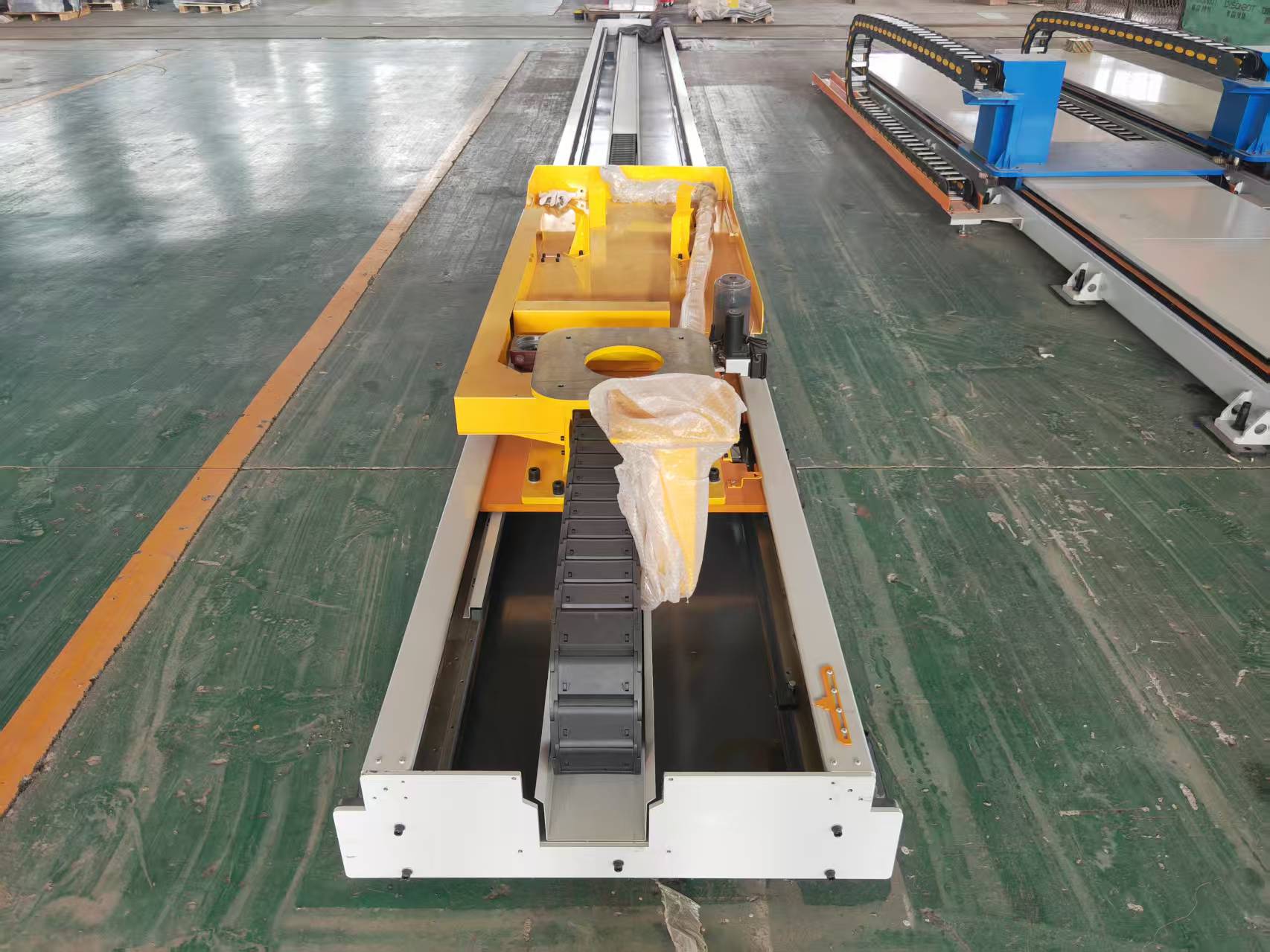

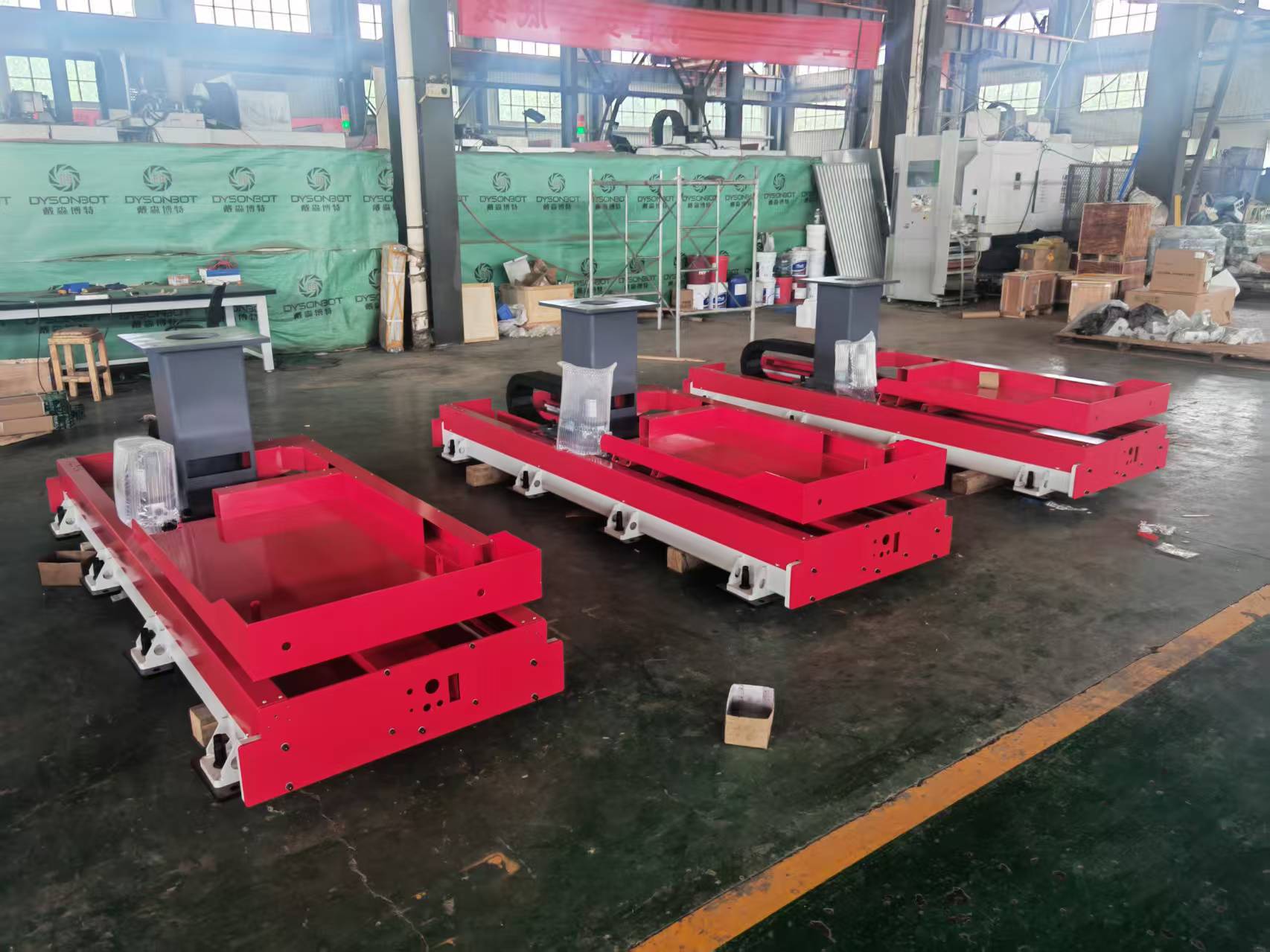

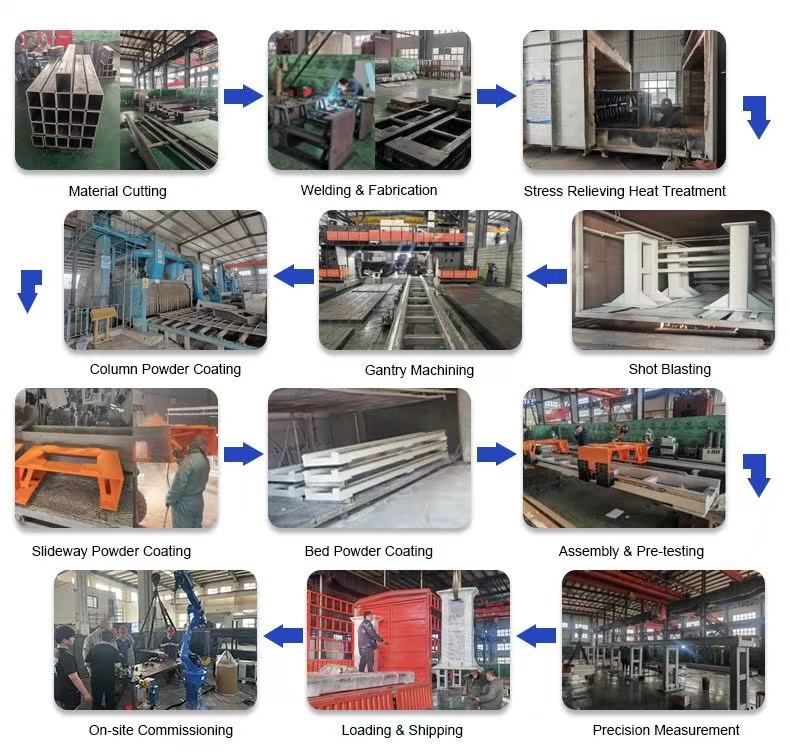

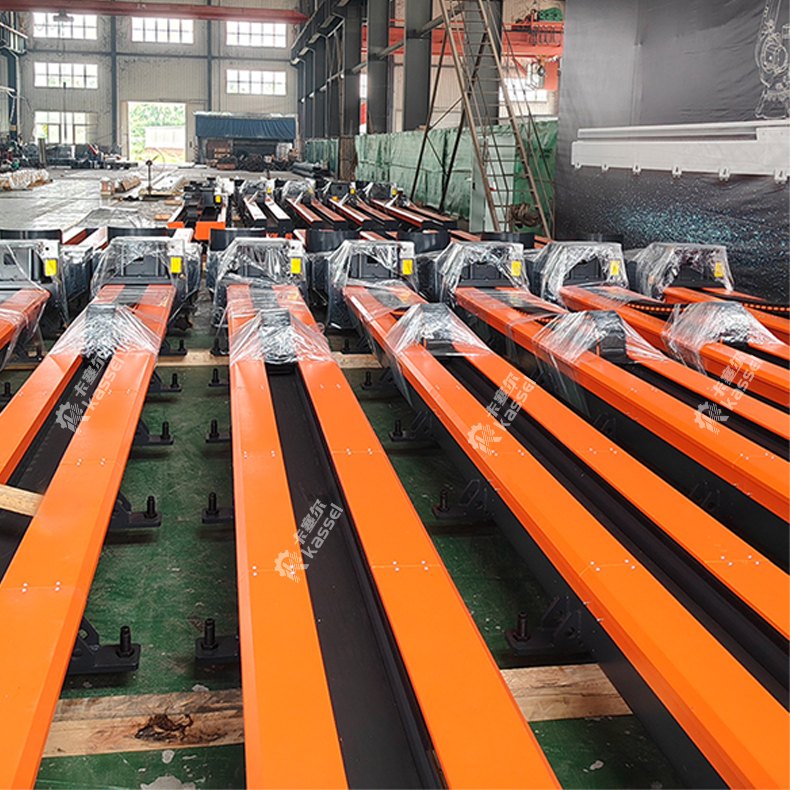

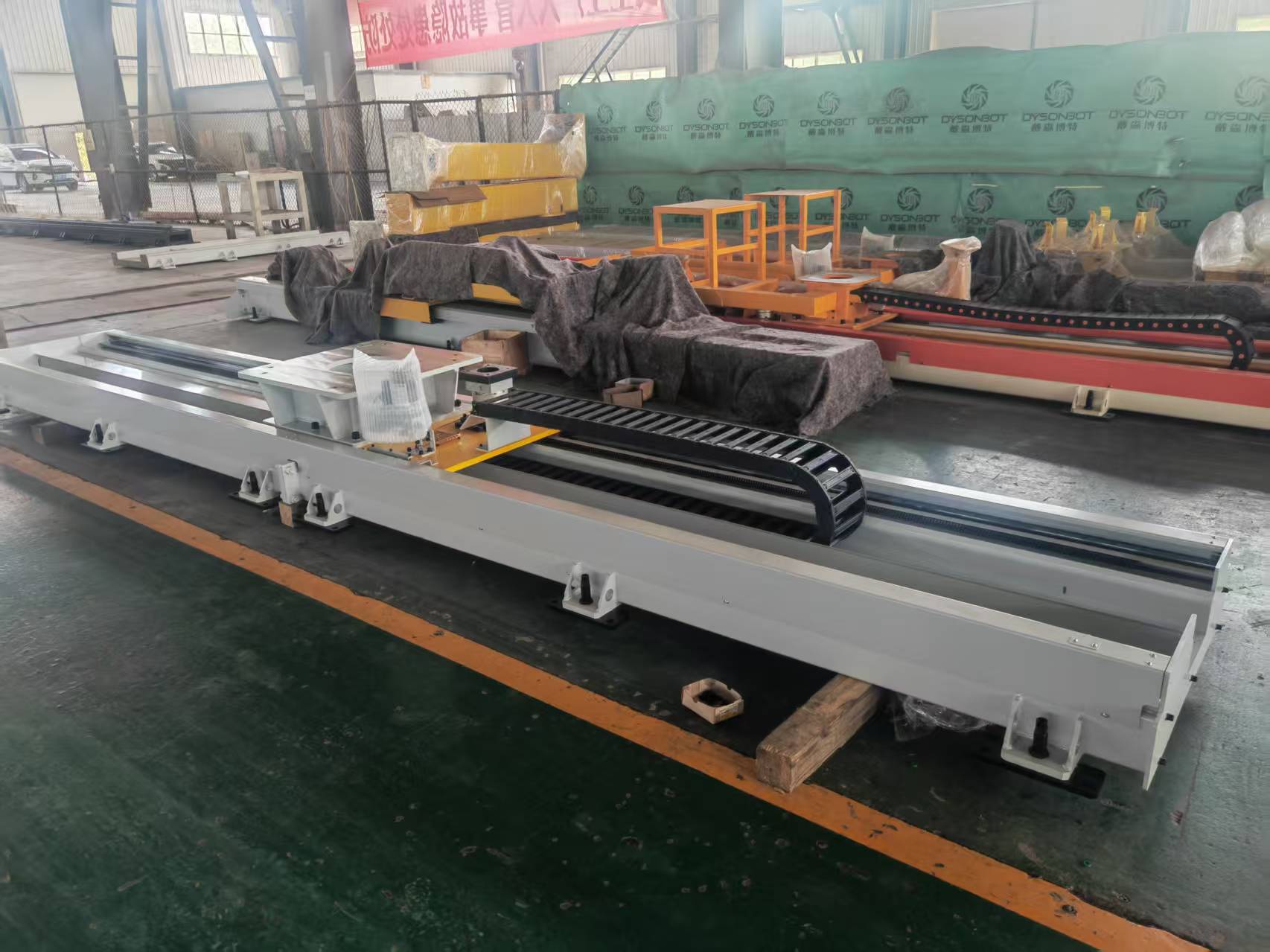

The L-plate is made of ductile iron casting. Equipped with slide plate safety guardrails. It features high rigidity, suitable for low-speed operation without jitter, stable high-speed performance and other comprehensive characteristics. The frame adopts an integrated structure, which undergoes overall tempering/phosphating and surface treatment, followed by final precision machining of the rail surface to ensure rail accuracy. It has the characteristics of high repetitive positioning accuracy, long service life, allowing arbitrary treading, durability, etc., and is compatible with handling robots of any brand. The origin and limit use Omron travel switches (not required for external axis control; please specify if needed for non-external axis control).
