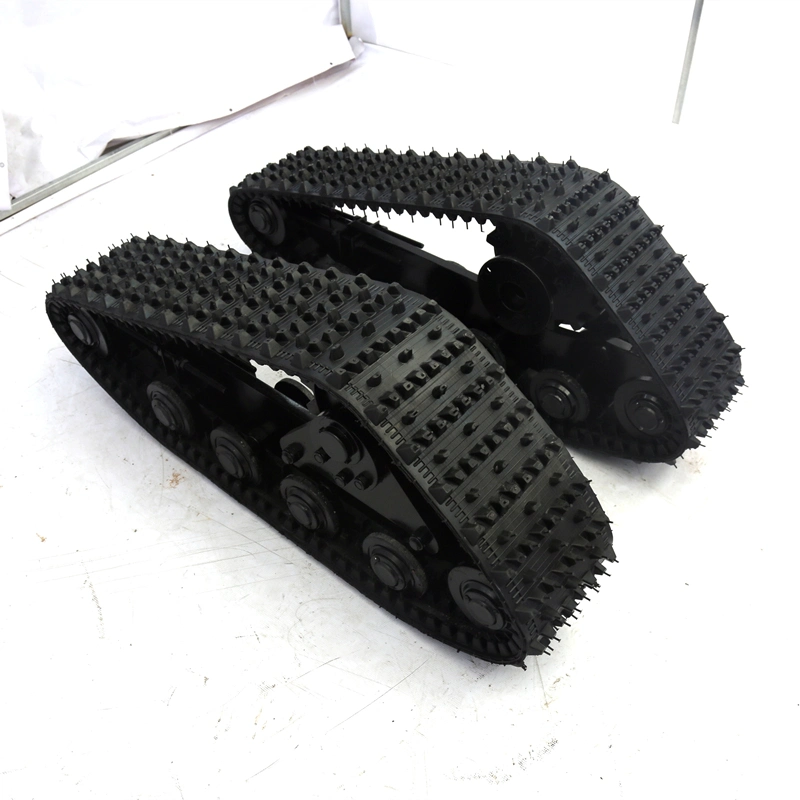

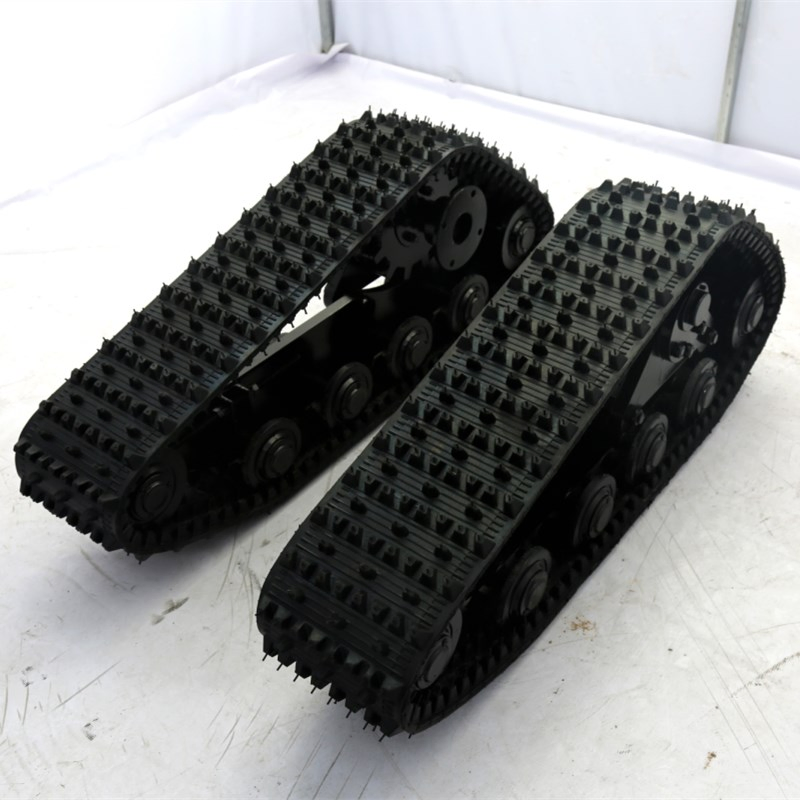

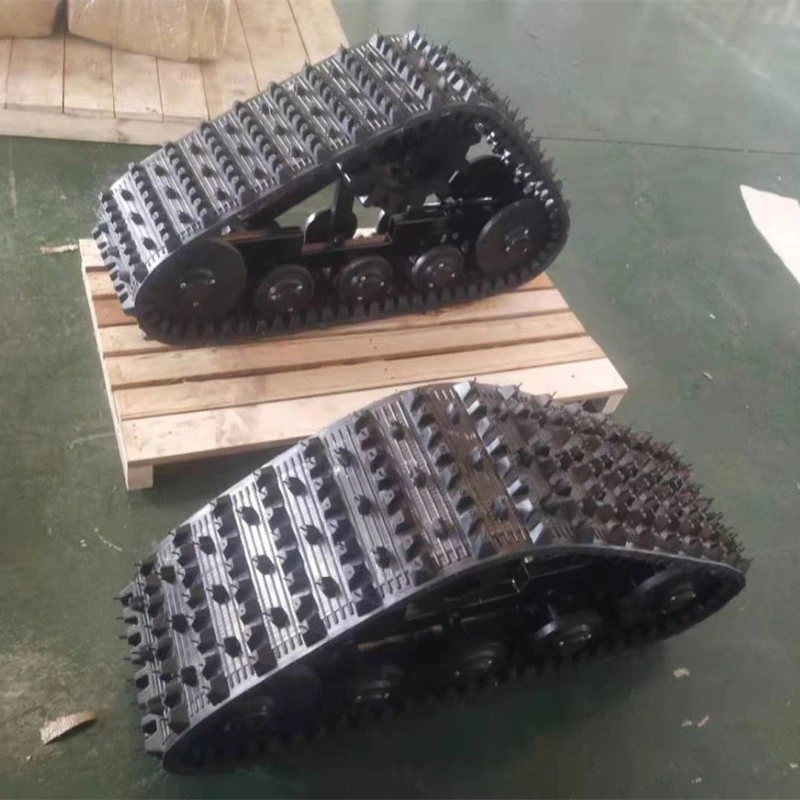

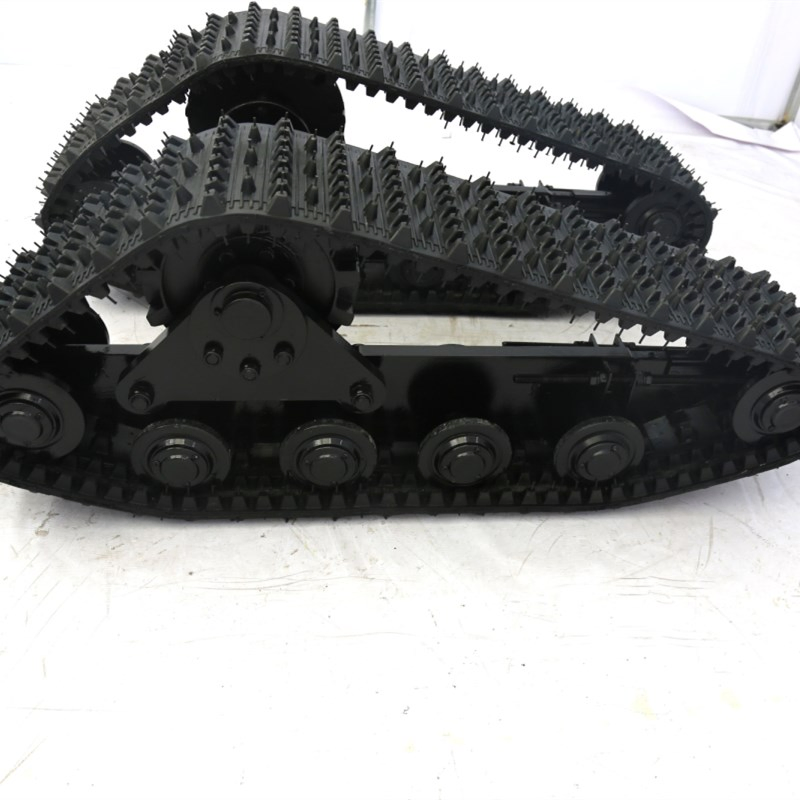

1000*255*650 ATV Rubber Track System Convert System/Kits

1 / 4

1000255650 ATV Rubber Track System Convert System/Kits

Customization:	Available
Brake Type:	Disc Brake
Displacement:	150CC

Send Inquiry

Product Description

Basic Info

Model NO. LZ-255

Engine Type 2 Stroke

Fuel Gas / Diesel

Maximum Speed 50-75 km/h

Structure Without Door

Transmission System Shaft Drive

Transmission Type Automatic

Width 255mm

Length 1000mm

Height 650mm

Sprocket Center Distance to The Ground 300mm

Ground Contact Length 800mm

Net Weight 45kg

Carry Capacity 600kg

Warranty 12 Months Under Normal Use

Certification ISO9001

Condition New

Transport Package Bare Packing or Wooden Pallet

Specification LZ-255

HS Code 8708996000

Production Capacity 500 Per Month

Product Description

1000*255*650 ATV Rubber Track system Convert System/Kits in Stock for Sale

Model:	LZ-255	Length:	1000mm
Packing:	simple	Width:	255mm
		Height:	650mm
Material:	Steel/rubber/UHMW-PE	Net weight:	45KG
Ground Contact Length:	8000mm	Load-bearing:	600KG
Sprocket Center Distance to the Ground:	300mm
Remarks:	Agricultural machinery, walking tractor

Robot/Truck/tractor/agriculture machine rubber track conversion system for ATV UTV

Description: All terrain rubber track conversion system, interaction with the excellent designs idea in the world, was made of high-tech material. Could be used to Military field operations, anti-terrorist, patrol, oil search, mine, water conservancy and rescue tender. That is the unusual environment and terrain. Easy and quick interchange with the tyre, no need to change anything about the vehicle. With the track kits, the vehicle get more power on the harsh terrain.

Recommend environment: snow, swamp, desert, gobi, mountain and so on.

Applications: For 4 Wheel Drive Vehicle ATVs, UTVs

Specifications

CNC Machined Billet Aluminum
Full bearing setup
All terrain rubber track conversion system
Adjustable track tension
Larger drive wheel for more speed
Double arms for more realistic setup
Better scale design
Hex: 12mm

Important Notes

This is enough to prep one axle. In order to do a 2 axle truck, you will need two of this item.
These require a fitting kit to be used for proper mounting and use.
With only one pair installed on a truck, you will have a gearing change between the normal wheels and the Tracks. If mounting the tracks on the front it will cause push / under steer.
We recommend the use of these tracks on all corners of the truck for best results.
Brushless system and higher gearing is suggested, but not required.
Threadlock is required on all screws on the tracks before use.

Capable

Greatly improved traction
Exceptional floatation with very low ground pressure
Matches or exceeds wheeled hauling capability
Maximum performance when pulling implements
Exclusive technologies for superior performance

Reliable

Outstanding durability
Ten years of ATV track system innovation, engineering, and marketing
Half-century heritage of molded track manufacturing
Warranty coverage

Versatile

Systems for virtually all 4WD ATVs 300cc and up including side-by-sides and 6-wheelers

Safe

Greater vehicle stability
Remarkable operational control

Easy

Easy switch from wheels to track systems

Frequently Asked Questions

What types of vehicles can use this rubber track conversion system?

This system is designed for 4-wheel drive vehicles, specifically ATVs, UTVs, side-by-sides, 6-wheelers (300cc and up), as well as robots, trucks, tractors, and agricultural machinery.

In what environments is it recommended to use these track kits?

The track conversion system is optimized for challenging all-terrain environments including snow, swamp, desert, Gobi, and mountain areas.

Is it difficult to switch between tires and the track system?

No, the design allows for an easy and quick interchange with standard vehicle tires without requiring any structural changes to the vehicle itself.

Do I need to buy track systems for both axles?

One kit is designed to prep one axle. For a 2-axle truck or vehicle, you will need two kits. We highly recommend installing tracks on all corners (both axles) for optimal performance and stability.

What is the load capacity and warranty for the LZ-255 model?

The LZ-255 model has a carrying/load-bearing capacity of 600kg and comes with a 12-month warranty under normal use conditions.

Are there any special installation requirements?

Yes, a fitting kit is required for correct mounting. Additionally, it is highly recommended to apply threadlock to all screws on the tracks before operational use.
